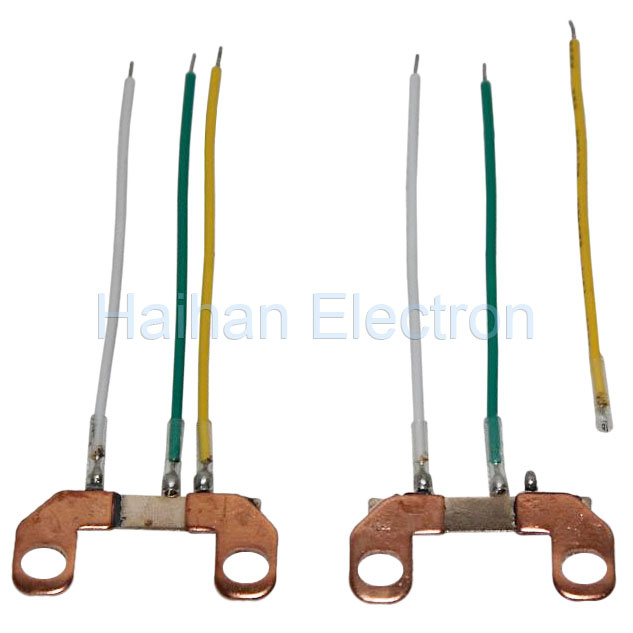

Shunt Resistor with 500mico Ohm (HS21B)

Name: Shunt Resistor with 500mico Ohm (HS21B)
Brand: all-electronics-online.com
SKU: 706215155
Availability: InStock
Rating: 4.8 (126 reviews)

Price:	US $ 0.28-0.3/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HS21B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Model:	HS21b
Max Current:	20A
Resistance Value:	500 Micro Ohms
Thickness:	1.5mm
Two Holes Dimension:	21mm
Wire Color:	White, Green, Yellow.
Technology:	Metal Alloy
Resistance Tolerance:	±5%
Operating Temperature:	120 Degree
Resistance:	Sensitive Resistor
Function For Resistance:	Shunt Resistor
Installation:	SMD Resistor
Material:	Metal Film Resistor
Package Type:	Surface Mount
Type:	Trimming Potentiometer

Product Description

1, Application:
1), Multi-funcational energy meter

2), Prepayment energy meter

3), Reactive energy meter

4), Watt-hour meter

5), Multi-rate watt-hour meters

6), Maximum demand energy meter.

7), Standard electric energy meter

8), Meter for industry and home use.

2. Electrical specification:

1) Material: F2 or 6J13 Manganin and pure copper.

2) Welding mode: Electro-beam welding.

3) Resistance value tolerance: 500-1600micro ohms ± 5%

4) Shunt type: The shunt should be mountable type with holes for screw fixing

5) Termination: Integrated lead wires are available.

6) Temperature: Independent from temperature variation with low TCR value.

7)Characteristics TC < 50PPM/K

8) Power loss: < 50 milli watt

9) Aging: 10 hours under 120 deg.

10) Customized designs are available against customers' drawings/samples.

11), Top quality with low price
