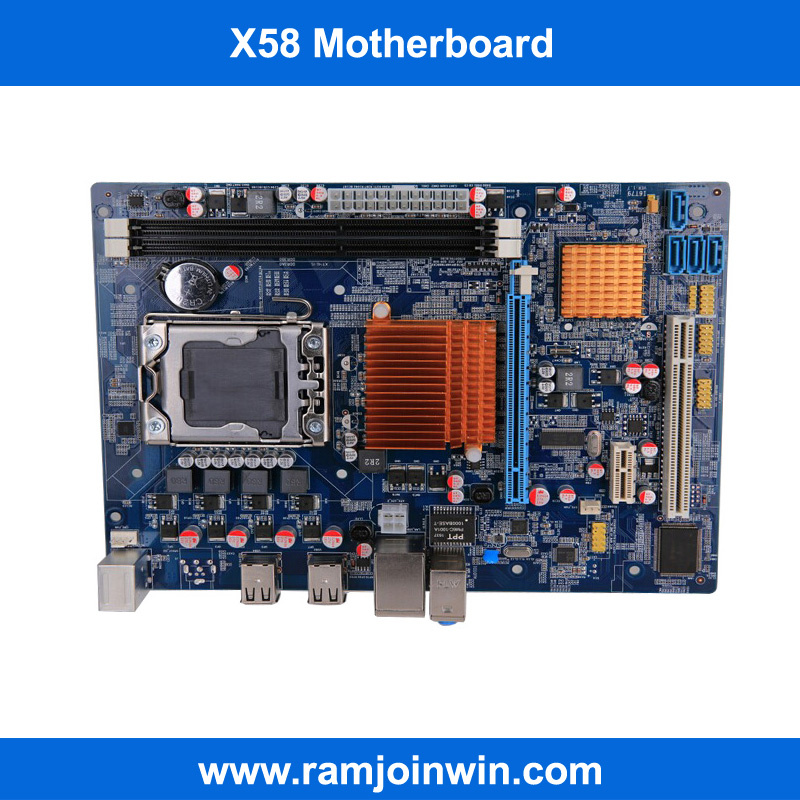

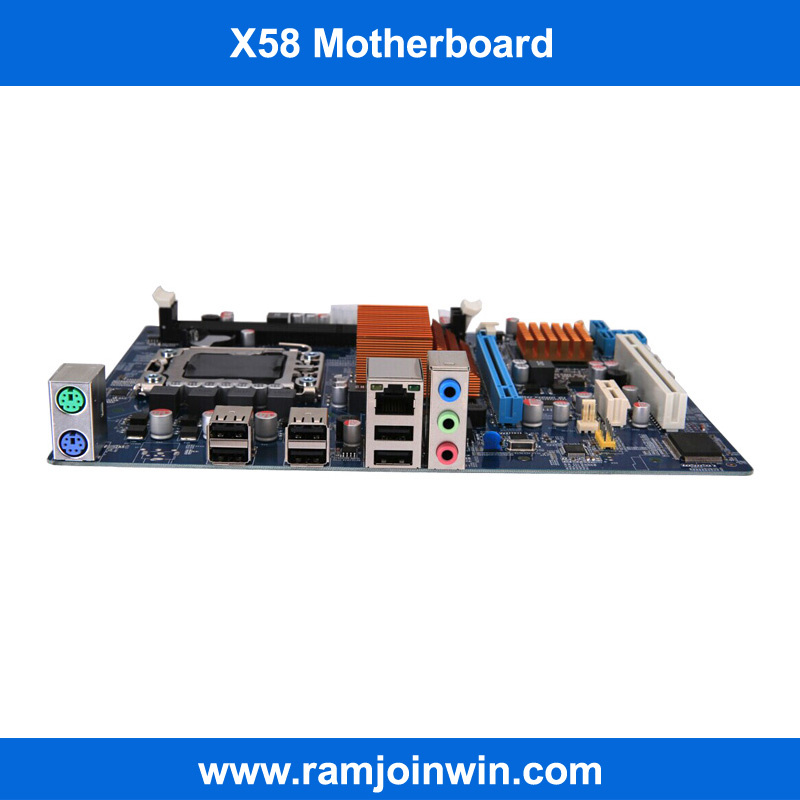

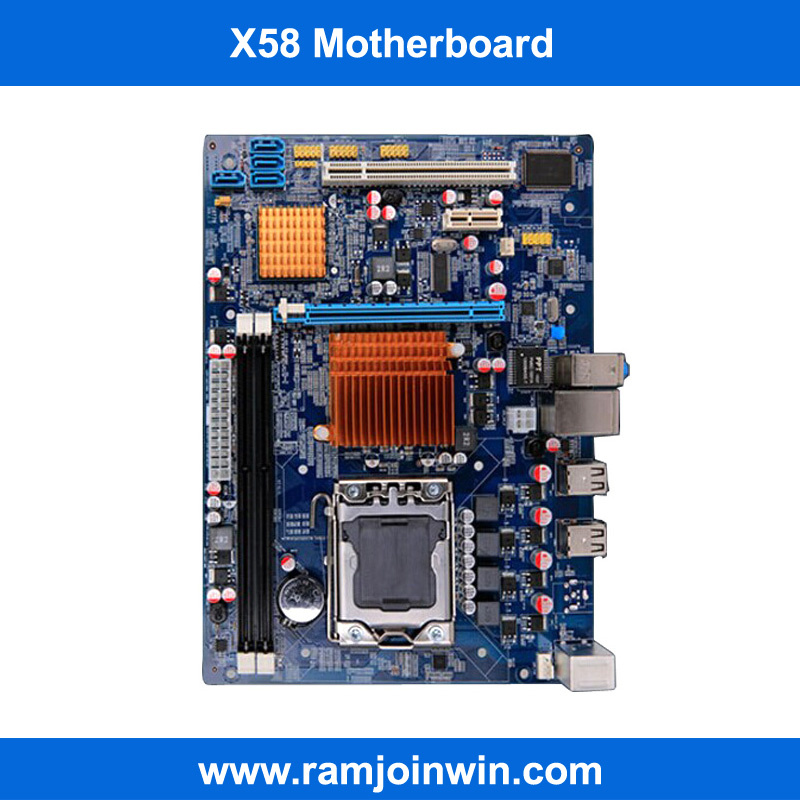

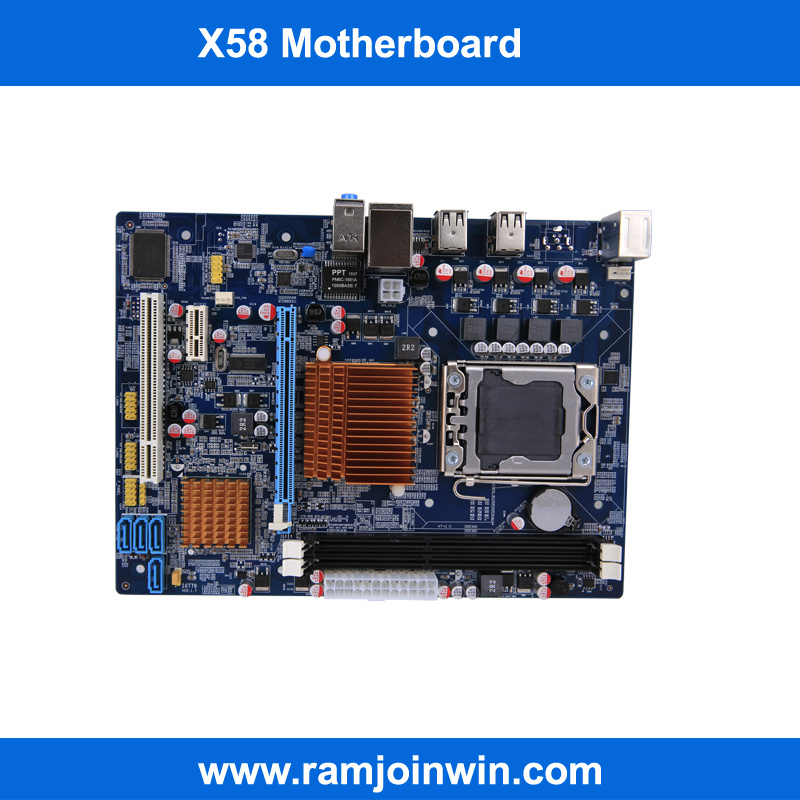

Name: Server and Desktop Application LGA 1366 X58 Mini-Itx Motherboards
Brand: all-electronics-online.com
SKU: 801245625
Availability: InStock
Rating: 4.5 (46 reviews)

Price:	US $ 63.8-65.8/Piece
Min Order:	20/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	lga 1366 x58 mini-itx motherboards
Application:	Desktop
Chipset:	X58+Ich10
LAN:	Realtek 8105e/8111e 100m/1000m LAN Controller
Form Factor:	242 X 188mm
Warranty:	3 Years Warranty
CPU:	LGA1366
Delivery Time:	2-3 Workingdays
Payment Way:	T/T Western Union Moneygram
Shipment:	DHL EMS
Integrated Graphics:	Not Integrated Graphics
Main Chipset:	Intel
Maximum Memory Capacity:	8G
Structure:	ATX
Memory:	DDR3
SATA Interface:	SATA3.0
CPU Socket:	LGA 1366
Printed Circuit Board:	Four Layers
Main Board Structure:	Circuit Baded
Audio Effects:	Not HiFi

Product Description

CPU
-- Supports LGA1366 Intel® Core™ I7 / LGA1366 Intel® XEON

Chipset
-- Intel® X58+ICH10

Memory
-- Supports DDR3 1600/1333/1066 memory
-- Dual Channel architecture support up to 16GB by 2 DIMM slots

Audio
-- Realtek ALC662 6 Channel Audio Codec

LAN
-- Realtek 8105E/8111E 100M/1000M LAN Controller

Expansion Slots
-- 1X PCI Express X16 slot
-- 1X PCI Express X1 slot
-- 1X PCI slot

I/O Connectors
-- 4X SATA 3GB/s connector
-- 1X IDE connector (Optional)
-- 1X front panel connector
-- 1X front audio connector
-- 2X USB 2.0/1.1 connector; 8X USB 2.0/1.1 port
-- 1X 2 COM port
-- 1X LPT port
-- 1X PS/2 port
--1X RJ-45 port
-- 1X audio jacks

Form Factor
-- 242 X 188mm

Accessories
--1X motherboard; 1X SATA Cable; 1X Mainboard Driver; 1X baffle; 1X User Manual; 1X IDE Cable(optional)
