Prod Model: |
ABE-100/150/200/250 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Appearance: |
Black Case |
Response Time: |
50-700ms |
Case Material: |
PC |
Type: |
Industry Alarm |
Application: |
Outdoor |
Signal Transmission: |
Wired Alarm |
Working Mode: |
Active |
Sensor Type: |
Infrared Alarm |
Working Principle: |
Electro-Optical Type |
Certification: |
CE, CE & RoHS |
Product Description

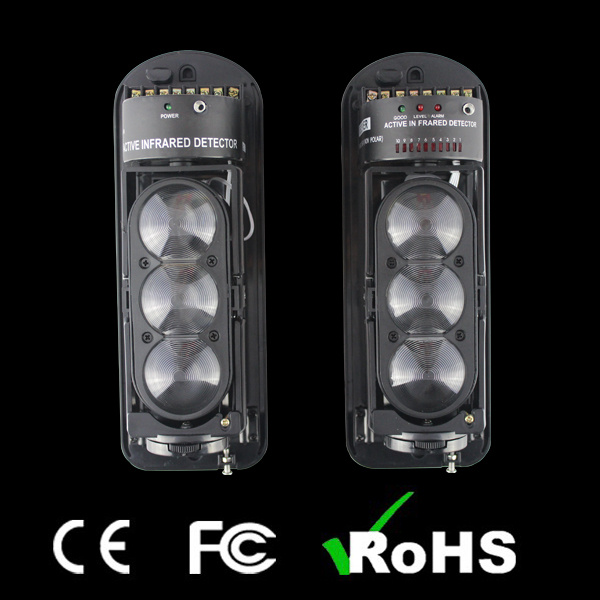

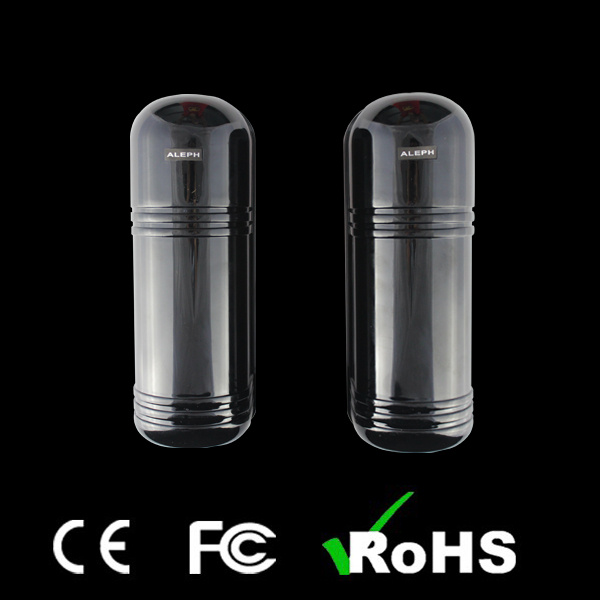

Photoelectric Active Infrared Beam Detector
Function:
1. Wired and BUS system compatible, holographic spot real-time report
2. Using the solid power charger of no longevity ending, low voltage and mini power consumption.
3. Adopts DSP chip, patented multi-dimensional mistake-corrective code, true detection alarm technology
4. The digital ambiguous artificial intelligent recognition: Four band frequency and use the artificial intelligent ambiguous judgment reduce the false alarm rate to zero.
5. Intelligent power emission. Adjustment the emission power of the beams automatically, it prolong the tube's longevity and reduce the power consumption.
6. Green environment protection: With the controllable function display, after test, closes the display; It can save power a lot.
7. Two sets of independence precession mini adjustment inner build optical aiming lens.
8 Full function of self diagnose, environment self adjustment, troubles locked.
9 Patent equivalent checking, special digital filter wave, its anti-interference of light arrive at IP85.
10. The upper and nether optical lens adjust at the same time, enable the adjustment quicker and more exact.
FAQ
1. Warranty
Normally the alarm panel will be 2 years,accessories will be 1 years.
2. Why choose us?
As the professional manufacturer in home security system with 14years experience, we developed series of alarm system with high quality and competitive price. In first business, sample order is available. With professional R&D team to provide OEM&ODM service.
3. When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us by 18219119414
4. Are your samples free or need cost?
It can be free, but anyway we have to charge for the samples first, the sample charge can be returned after official order placed.
5. How can I get your samples
You're welcomed to email us for checking. It will be ready for delivery in 3-7 days after payment. The samples will be sent to you by express.
Technical Specification:
Model | ABE-100 | ABE-150 | ABE-200 | ABE-250 |
Outdoor alert distance | 100m | 150m | 200m | 250m |
Indoor alert distance | 300m | 450m | 600m | 750m |
Number of beams | 3 |
Response time | 35_700ms |
Alarm output | NC&NO contact rating AV/DC 30V/0.5A |
Alarm output-BUS | MA BUS constact rating AV/DC 30V/0.5A |
Working current | 65mA | 65mA | 65mA | 70mA |
Working voltage | DC 13.8_24V;AC 11_18V |
Long life mode | 32mA | 32mA | 32mA | 40mA |
Temperature | -25 centigrade to 55 centigrade |
Humidity | 5%_95% (RH) |
BUS output | RS-485 |
Tamper output | NC contact rating AV/DC 24V/0.5mA |
Horizontal adust | 180°(±90°) |
Vertical adjust | ±10° |
Case material | PC |
![](/proimages/44f3j00CgLQuoaBTEqU/security-system-perimeter-infrared-sensor-laser-beam-barrier.jpg)
![](/proimages/44f3j00BgDTuCEMRQbf/security-system-perimeter-infrared-sensor-laser-beam-barrier.jpg)
![](/proimages/44f3j00WQcanUJRqYqf/security-system-perimeter-infrared-sensor-laser-beam-barrier.jpg)
![](/proimages/44f3j00hQoTnrJzsfqU/security-system-perimeter-infrared-sensor-laser-beam-barrier.jpg)

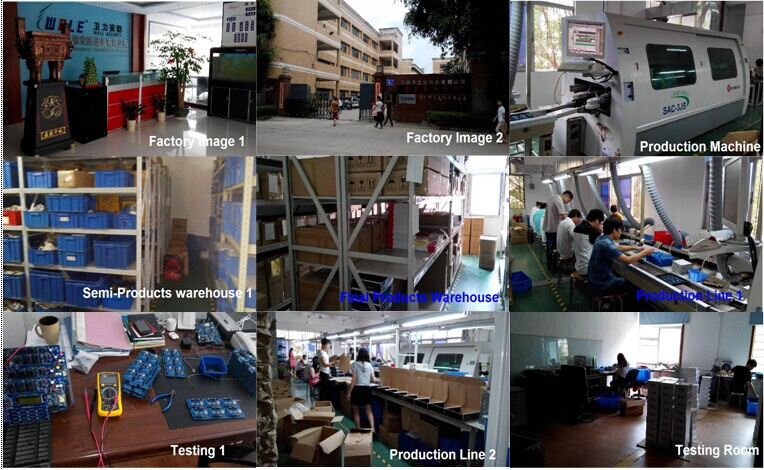

Established in Shenzhen on July 25, 2006, Shenzhen Wale Group Co., Ltd is a national high-tech enterprise mainly on researching, developing and manufacturing high-tech products for security GSM home alarm, terrorism and violence, quantum detection, and energy environment, as well as a solution provider about industry data analyzing
The factory and office are located in Shenzhen, which is near to ports for sea delliver. The factory can support OEM/ODM service for long term cooperation. Our products are welcomed by our forg
Every year, we will going to attend Security Exhibition all over the world, such as USA, Russia, Essen, India, Dubai, etc.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
