| Prod Model: |
CKD-UMLA-3/5 |
| Function: |
Marking, Engraving |
| Material: |
Crystal, Glass, Stone |
| Product Name: |
Sealed UV Laser Marking Glass Machine for Sale |
| Keyword: |
Marking, Engraving |
Product Description

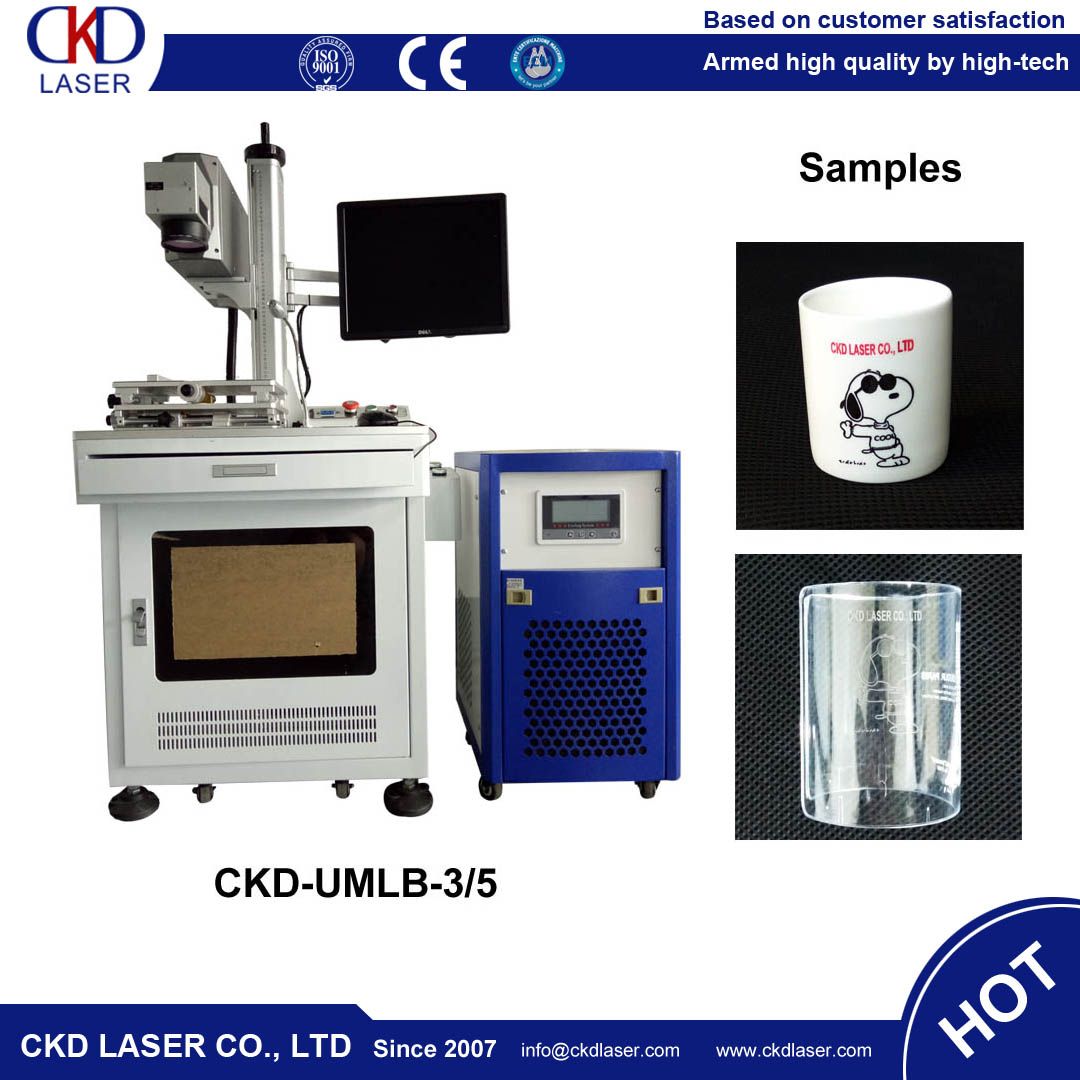

Sealed UV Laser Marking Glass Machine for Sale
CKD-UMLA SERIES
Advantages
1, With fully enclosed safety protection system, it can avoid material waste and unexpected injury on man due to incorrect operation.
2, With small thermal radiation, applicable to the marking for the heat-sensitive material.
3, Modular design, easy for the system integration and maintenance.
4, Short wave length, good beam quality, high accuracy, and high peak power, suitable for each precision and micro processing.
5, JCZ controller, USB interface, swift and stable transmission, easy software operation, strong functions.
6, Compatible for all formats from CorelDraw, Photoshop, AutoCAD, etc.
Application
Electronic components, mechanical parts, instrument, hardware tools, automobile parts, daily necessities, etc.
Materials

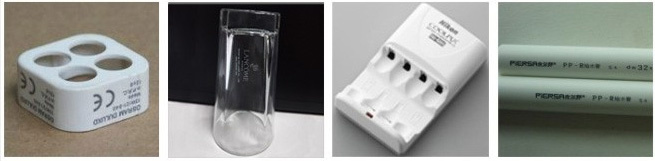

Marking on stainless steel, brass, aluminum, anodized aluminum, iron, gold, silver, titanium and other metals, marking on plastic, glass, ABS, acrylic, Nylon, PVC, marble, ceramic and other non-metals.
Parameters| Parameters | Unit | Data | Data |
| Type 1 | | CKD-UMLA-3 | CKD-UMLA-5 |
| Type 2 | | CKD-UMLB-3 | CKD-UMLB-5 |
| Laser source average output power | W | 3 | 5 |
| Laser Type | | UV laser | UV laser |
| Laser Wavelength | nm | 355 | 355 |
| Optional Marking Area | mm | 100*100/150*150//200*200 | 100*100/150*150//200*200 |
| Average Power Stability | h | <±2% over 12 | <±2% over 12 |
| Pulse-to-Pulse instability | ms | <3%r | <3%r |
| Spatial Mode: | | TEM00 (M2<1.3) | TEM00 (M2<1.3) |
| Beam Divergence Full Angle | mrad | < 2 | < 2 |
| 1/e2 Beam Diameter | mm | 0.5 | 0.5 |
| Beam Roundness | | >90% | >90% |
| Pointing stability | urad | <50 | <50 |
| Controller /Software | | EzCad | EzCad |
| Life-span of Laser Module | h | 10000 | 10000 |
| System Operation Environment | | Windows 7/8/10 | Windows 7/8/10 |
| Cooling Mode | | Water cooling | Water cooling |
| Temperature of Operation Environment | ºC | 10~35 | 10~35 |
| Voltage | | 90-240V/50-60Hz/2KVA | 90-240V/50-60Hz/2KVA |
| Computer Requested | | with PC | with PC |
| Dimension (L*W*H) | mm | 550*600*600 | 550*600*600 |
| Weight | Kg | 70 | 70 |

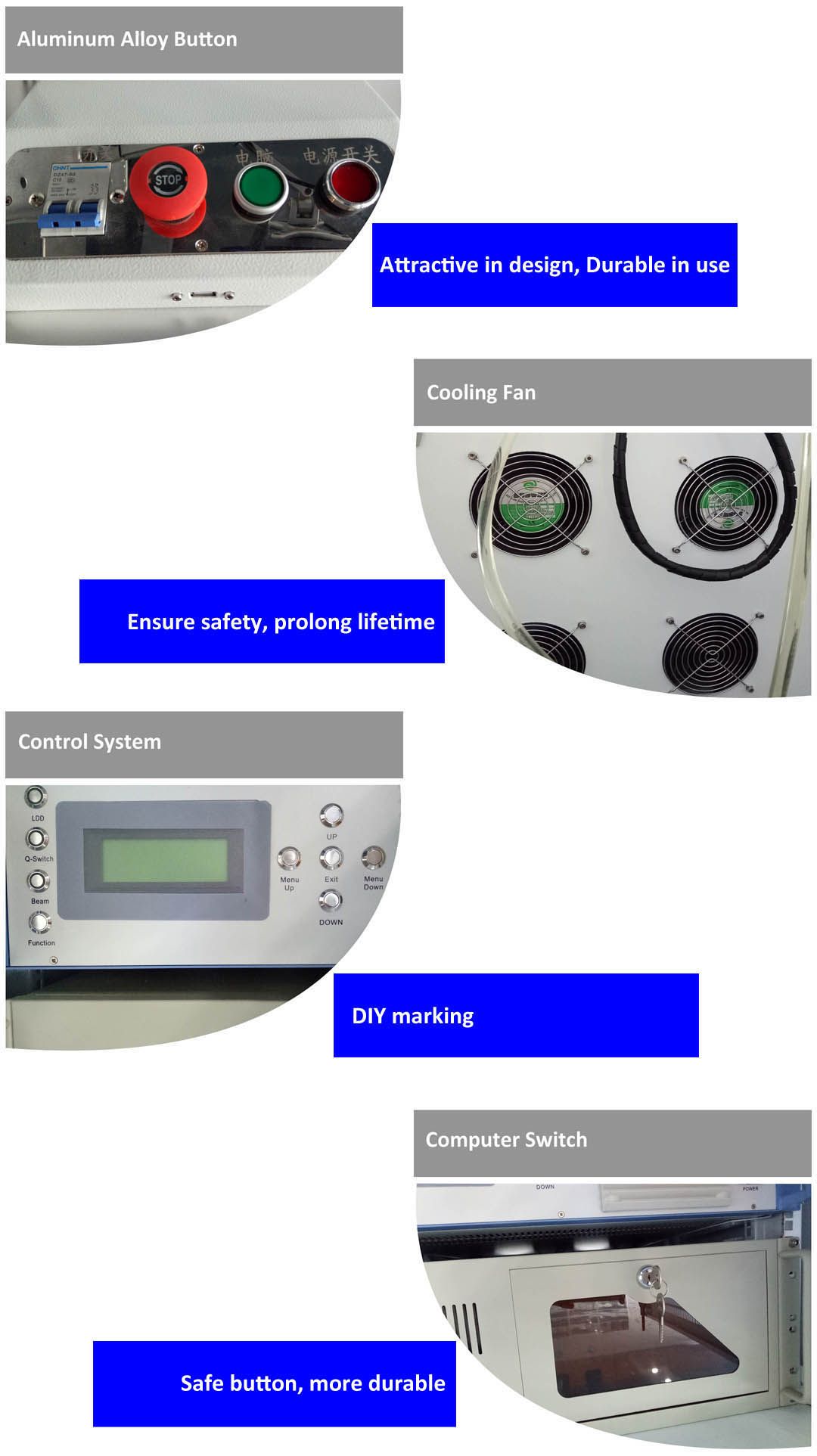

Product details
Company profile
We are a factory established in 2007, which specializes in the customized laser equipment for 9 years. We have a professional team and pursue high-tech, high quality, and high customer satisfaction products, to seek long-term cooperation and common development customers.
Our main customized products: Marking laser machine, including portable marking laser machine, table marking laser machine, rotary multi-station marking laser machine, sealing marking laser machine, UV marking laser machine, CO2 marking laser machine; welding laser machine; ITO laser machine; slicer laser machine; cutting laser machine and a lot of self-developed laser equipment devices.
Our laser equipment is widely used in industries of hardware tools, solar energy, auto accessories, electronics, electric appliance, medical, glasses, leather, optical accessories, advertising, commodity, communication, sheet metal industry, jewelry industry, kitchenware, jet coding and crafts gifts etc.
Company concept: All participants in and strive together to creative our future.
Company policy: Based on customers' satisfaction
Armed high quality by high-tech
Welcome new customers' attention and thank old customers' support! We will as always provide and feedback you the higher performance, cost-effective, better quality products and timely service.
Professional Team
1, PROFESSIONAL QUALITY ···Artificial Intelligence system,High configuration,Industry conscience.
2, ORIGINAL DESIGN ··· Beening the trailblazer,Gains patents and certifications.
3, WORLD BRAND ··· We sale to Asia,European,America and Africa.
Why choose us:
1.CKD LASER product is widely used in almost all the materials you can think of.
2.CKD LASER is the professional manufacturer of cnc laser machine for more than 9 years. There is no middle man and no agent, so the price is pretty competitive.
3. CKD LASER have a experienced and professional R&D team for the technical support.
4. CKD LASER always stick to the principles: Customer first,Quality First, Service First!
5. CKD LASER company has international technical service office and provides 24 hours online services and technical supports for customers.
FAQ
Q: Are you a factory or a trade company?
A: We are a factory.
Q: How many years do you do this business?
A: From 2007.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhen, Guangdong province, China.
All our clients from home or abroad are warmly welcome to visit us!
Q: Do you have any certificates?
A: All series of machines have passed CE,CO and ISO verification.
Q: What is the trade term?
A: FOB/CNF/CFR/CIF/EXW are favorable.
Q: What is the payment term?
A: 100% T/T in advance.
Q: How can I get the documents after shipment?
A: All original documents will be sent to the client by E-mail.
Q: Do you arrange shipment for the machines?
A: We will arrange shipment for transactions based on FOB/CIF terms.
For EXW price, shipment should be made by clients or their agents.
Q: Do you have patents or core technology?
A: Yes, for details, please contact our sales.
Q: Warranty?
A: Depend on the series of machine.
Q: Where have you sold your products?
A: Europe, Americas, Africa, and Asia.
For other questions, we will reply you ASAP after receriving your consult!
