| Prod Model: |
SM5917, SM5819 |
| Current: |
1.0 |
| Peake Reverse Voltage: |
30 |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
PGA(',Pin Grid Array Package) |
| Model: |
Sm5918 |
| Batch Number: |
2016 |
| Brand: |
Sy |
Product Description

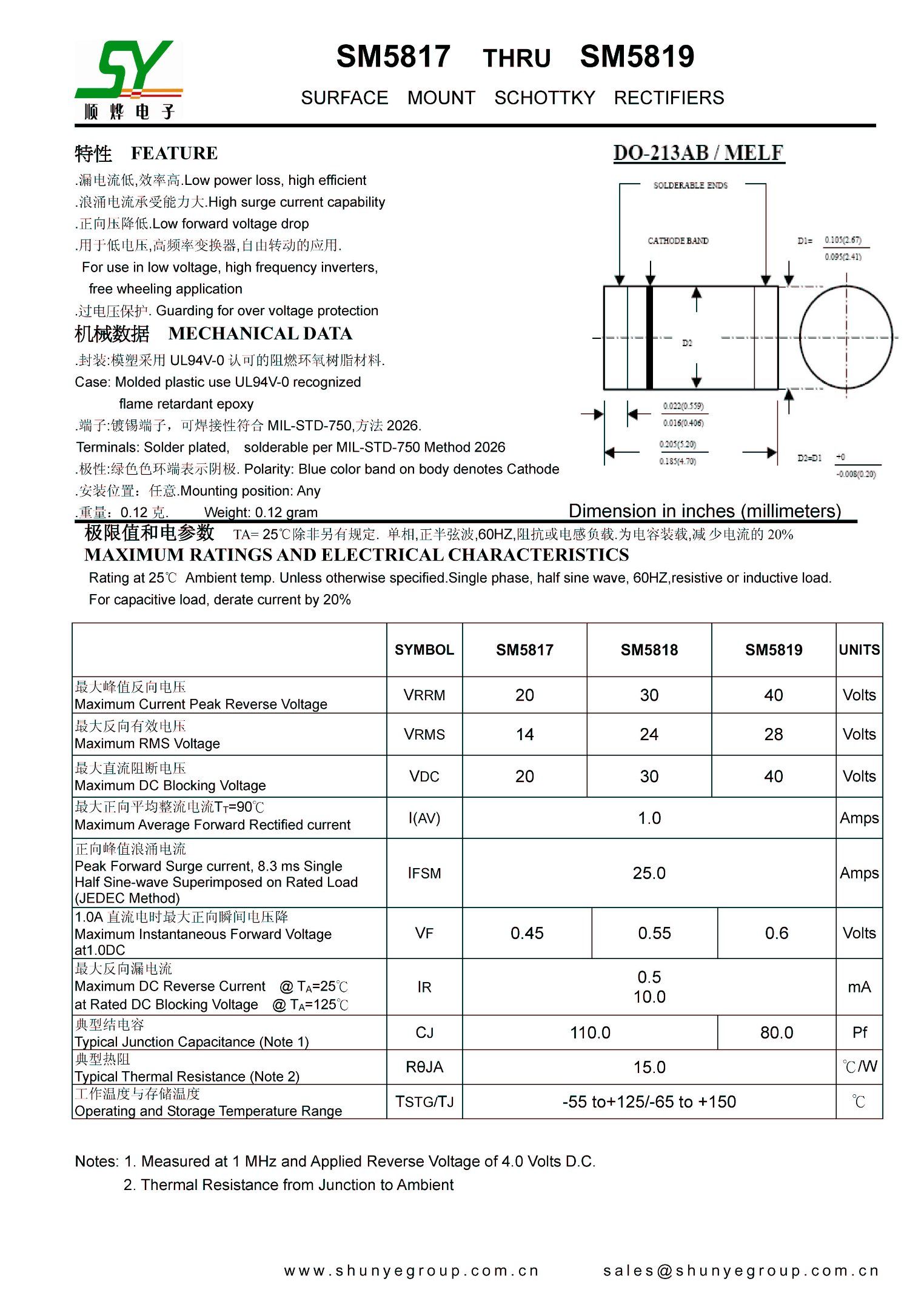

1A,20V-SCHOTTKY DIODE-SM5817(Melf) 1.Datasheet:
2.Products list:| SURFACE MOUNE SCHOTTKY BARRIER RECTIFIERS | | |
| TYPE | Maximum Peak | Maximum Average | Maximum Forward | Maximum Reverse | Maximum Forward | Package | | |
| Reversee | Rectified | Prak Surge Current | Current | Voltage | | |
| Voltag | Current | @8.3ms Superimposed | @VRRM TA=25ºC | TA=25ºC | | |
| VRRM | I(AV) | IFSM | IR | IF | VF | | |
| V | A | A | μA | A | V | | |
| SM5817 | 20 | 1.0 | 30 | 1.0 | 1.0 | 0.50 | MELF | | |
| SM5918 | 30 | 1.0 | 30 | 1.0 | 1.0 | 0.50 | | |
| SM5819 | 40 | 1.0 | 30 | 1.0 | 1.0 | 0.50 | | |
| SS12 SK12 | 20 | 1.0 | 30 | 1.0 | 1.0 | 0.50 | DO-214AC
(SMA) | | |
| SS13 SK13 | 30 | 1.0 | 30 | 1.0 | 1.0 | 0.50 | | |
| SS14 SK14 | 40 | 1.0 | 30 | 1.0 | 1.0 | 0.50 | | |
| SS15 SK15 | 50 | 1.0 | 30 | 1.0 | 1.0 | 0.70 | | |
| SS16 SK16 | 60 | 1.0 | 30 | 1.0 | 1.0 | 0.70 | | |
| SS18 SK18 | 80 | 1.0 | 30 | 1.0 | 1.0 | 0.85 | | |
| SS110 SK110 | 100 | 1.0 | 30 | 1.0 | 1.0 | 0.85 | | |
| SS115 SK115 | 150 | 1.0 | 30 | 1.0 | 1.0 | 0.90 | | |
| SS120 SK120 | 200 | 1.0 | 30 | 1.0 | 1.0 | 0.90 | | |
| B220A | 20 | 2.0 | 50 | 2.0 | 2.0 | 0.50 | DO-214AC
(SMA) | | |
| B230A | 30 | 2.0 | 50 | 2.0 | 2.0 | 0.50 | | |
| B240A | 40 | 2.0 | 50 | 2.0 | 2.0 | 0.50 | | |
| B250A | 50 | 2.0 | 50 | 2.0 | 2.0 | 0.70 | | |
| B260A | 60 | 2.0 | 50 | 2.0 | 2.0 | 0.70 | | |
| B280A | 80 | 2.0 | 50 | 2.0 | 2.0 | 0.85 | | |
| B2100A | 100 | 2.0 | 50 | 2.0 | 2.0 | 0.85 | | |
| B2150A | 150 | 2.0 | 50 | 2.0 | 2.0 | 0.90 | | |
| B2200A | 200 | 2.0 | 50 | 2.0 | 2.0 | 0.90 | | |
| SS22 SK22 | 20 | 2.0 | 50 | 2.0 | 2.0 | 0.50 | DO-214AC
(SMA)
DO-214AA
(SMB) | | |
| SS23 SK23 | 30 | 2.0 | 50 | 2.0 | 2.0 | 0.50 | | |
| SS24 SK24 | 40 | 2.0 | 50 | 2.0 | 2.0 | 0.50 | | |
| SS25 SK25 | 50 | 2.0 | 50 | 2.0 | 2.0 | 0.70 | | |
| SS26 SK26 | 60 | 2.0 | 50 | 2.0 | 2.0 | 0.70 | | |
| SS28 SK28 | 80 | 2.0 | 50 | 2.0 | 2.0 | 0.85 | | |
| SS210 SK210 | 100 | 2.0 | 50 | 2.0 | 2.0 | 0.85 | | |
| SS215 SK215 | 150 | 2.0 | 50 | 2.0 | 2.0 | 0.90 | | |
| SS220 SK220 | 200 | 2.0 | 50 | 2.0 | 2.0 | 0.90 | | |
| B320A | 20 | 3.0 | 100 | 3.0 | 3.0 | 0.50 | DO-214AC
(SMA) | | |
| B330A | 30 | 3.0 | 100 | 3.0 | 3.0 | 0.50 | | |
| B340A | 40 | 3.0 | 100 | 3.0 | 3.0 | 0.50 | | |
| B350A | 50 | 3.0 | 100 | 3.0 | 3.0 | 0.70 | | |
| B360A | 60 | 3.0 | 100 | 3.0 | 3.0 | 0.70 | | |
| B380A | 80 | 3.0 | 100 | 3.0 | 3.0 | 0.85 | | |
| B3100A | 100 | 3.0 | 100 | 3.0 | 3.0 | 0.85 | | |
| B3150A | 150 | 3.0 | 100 | 3.0 | 3.0 | 0.90 | | |
| B3200A | 200 | 3.0 | 100 | 3.0 | 3.0 | 0.90 | | |
| SS32 SK32 | 20 | 3.0 | 100 | 3.0 | 3.0 | 0.50 | DO-214AC
(SMA)
DO-214AA
(SMB)
DO-214AB
(SMC) | | |
| SS33 SK33 | 30 | 3.0 | 100 | 3.0 | 3.0 | 0.50 | | |
| SS34 SK34 | 40 | 3.0 | 100 | 3.0 | 3.0 | 0.50 | | |
| SS35 SK35 | 50 | 3.0 | 100 | 3.0 | 3.0 | 0.70 | | |
| SS36 SK36 | 60 | 3.0 | 100 | 3.0 | 3.0 | 0.70 | | |
| SS38 SK38 | 80 | 3.0 | 100 | 3.0 | 3.0 | 0.85 | | |
| SS310 SK310 | 100 | 3.0 | 100 | 3.0 | 3.0 | 0.85 | | |
| SS315 SK315 | 150 | 3.0 | 100 | 3.0 | 3.0 | 0.90 | | |
| SS320 SK320 | 200 | 3.0 | 100 | 3.0 | 3.0 | 0.90 | | |
| SS52 SK52 | 20 | 5.0 | 150 | 10 | 5.0 | 0.50 | DO-214AC
(SMA)
DO-214AA
(SMB)
DO-214AB
(SMC) | | |
| SS53 SK53 | 30 | 5.0 | 150 | 10 | 5.0 | 0.50 | | |
| SS54 SK54 | 40 | 5.0 | 150 | 10 | 5.0 | 0.50 | | |
| SS55 SK55 | 50 | 5.0 | 150 | 10 | 5.0 | 0.70 | | |
| SS56 SK56 | 60 | 5.0 | 150 | 10 | 5.0 | 0.70 | | |
| SS58 SK58 | 80 | 5.0 | 150 | 10 | 5.0 | 0.85 | | |
| SS510 SK510 | 100 | 5.0 | 150 | 10 | 5.0 | 0.85 | | |
| SS515 SK515 | 150 | 5.0 | 150 | 10 | 5.0 | 0.90 | | |
| SS520 SK520 | 200 | 5.0 | 150 | 10 | 5.0 | 0.90 | | |
| | | |
| | | |

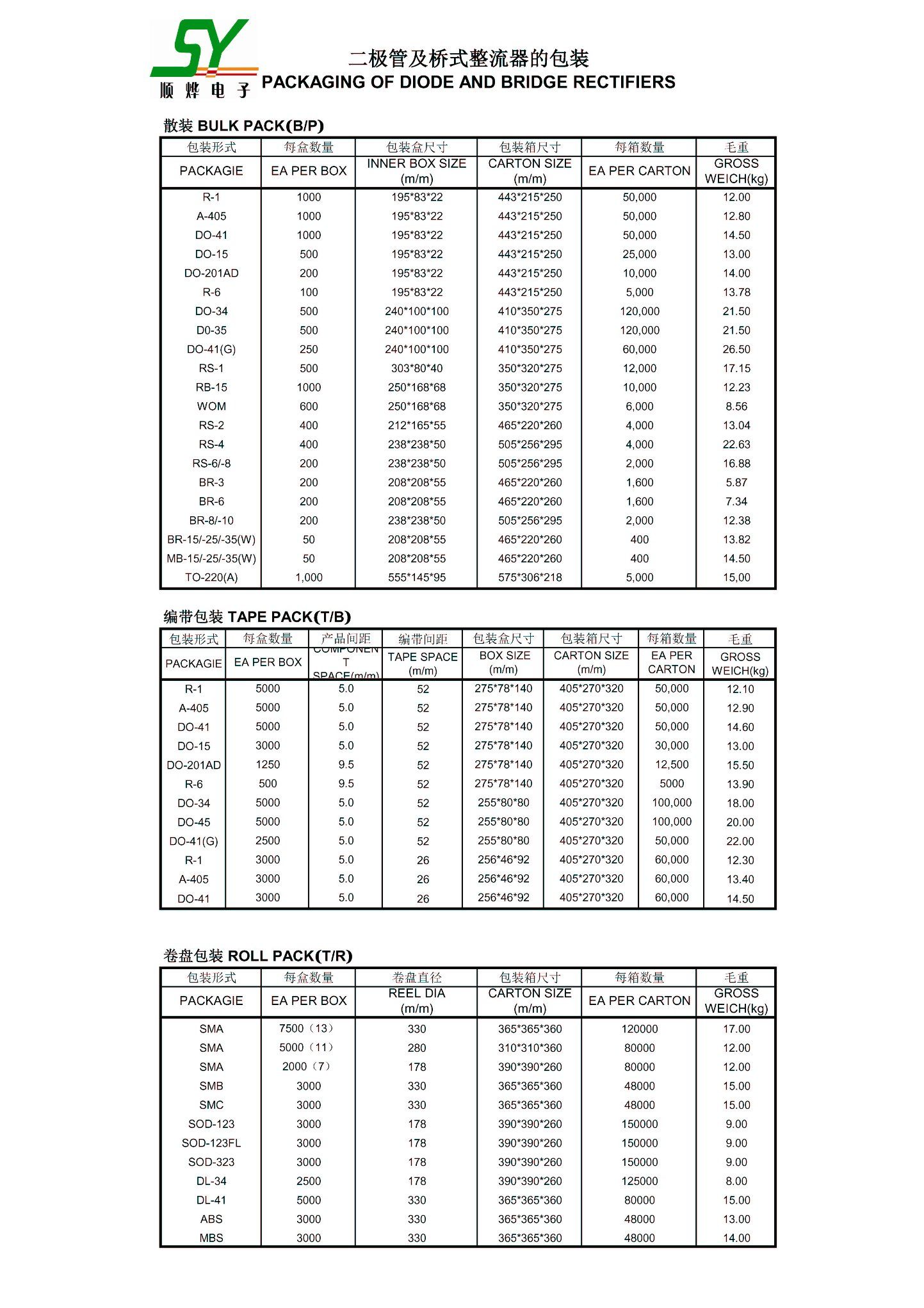

3.Package:

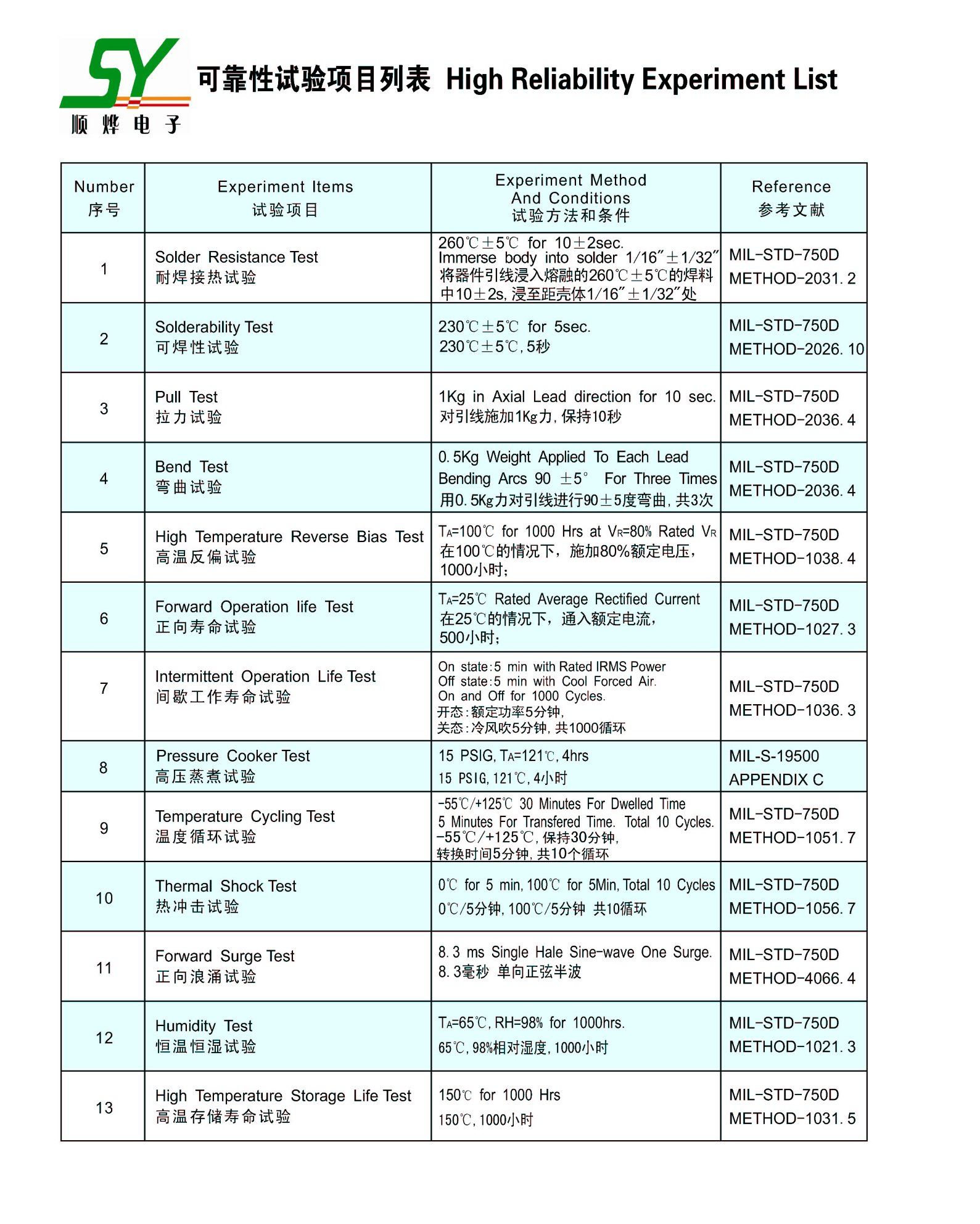

4.Reliability Test List:

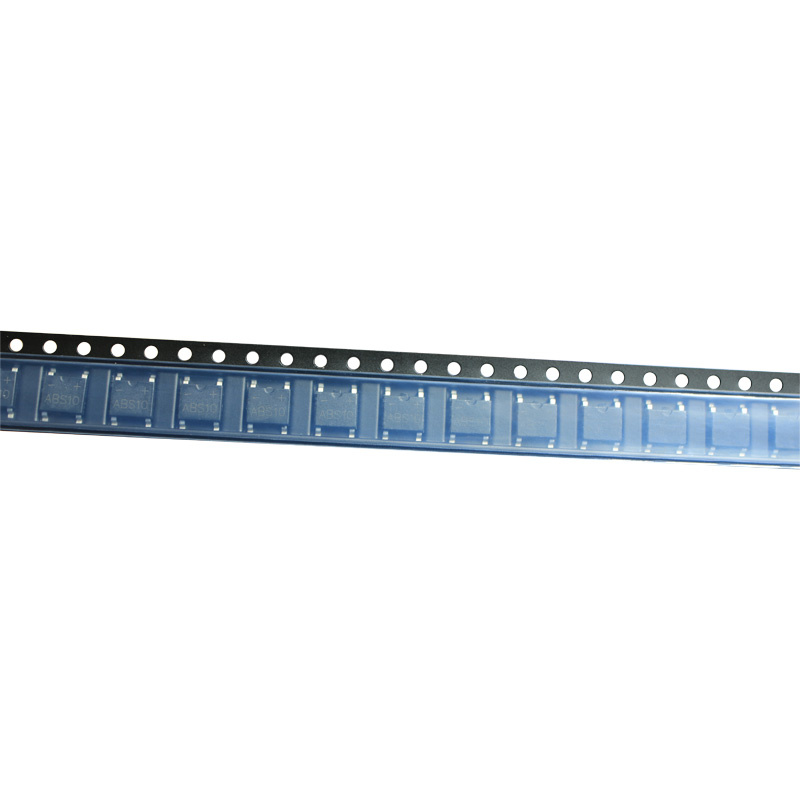

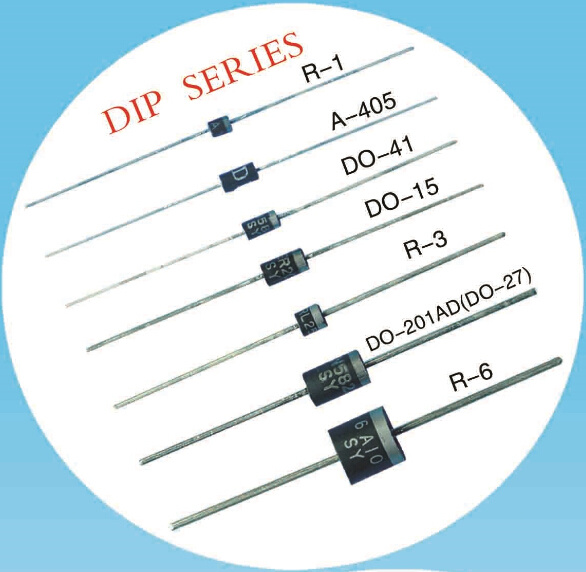

5.Product Picture:
6.Our Fair:
7.Contact Us:
8. FAQ:
