HOLIGHT Fiber Optic Co., Ltd. >> Sc Fiber Optic Multimode 50/125 Loopback Adapter

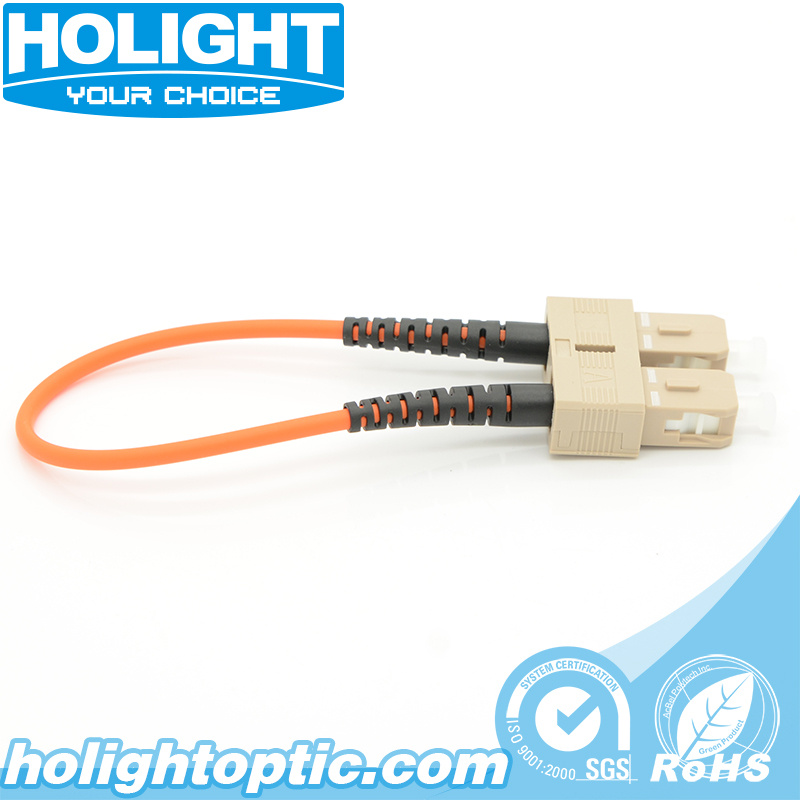

Sc Fiber Optic Multimode 50/125 Loopback Adapter

Sc Fiber Optic Multimode 50/125 Loopback Adapter
Price: US $ 1-5/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SC MM Loopback
MOQ: No Demand
Cable Diameter: 0.9mm, 2.0mm, 3.0mm
Storge Temperature: -40°c to +85°c
Connector Type: Sc, St, FC, St, MTRJ, DIN, Mu, Fddi, E2000
Product Name: LC Loopback
Warranty: Three Years
Application: CATV
Type: Multi-mode Fiber
Connection Structure: SC
Certification: CCC
Sheath Material: PVC, LSZH, Ofnp Are Available

Product Description

PRODUCT NAME :  SC MM Fiber Optic Loopback

APPLICATIONS


· Equipment interconnection
· Device pig-tailling
· Premise networks
· Patch panel applications
· Communications connections
· LoopBack for network components testing

FEATURE

· Ompact design
· Compatible with Fast Ethernet, Fiber Channel, ATM, and Gigabit Ethernet
· Short wavelength devices

SPECIFFCATIONS
 SinglemodeMultimode
Insertion lossPC≤ 0.3dB  UPC≤ 0.2dB  APC ≤ 0.3dBPC≤ 0.5dB UPC≤ 0.3dB APC ≤ 0.3dB
Return lossUPC≥ 50dB  APC ≥ 60dB-
Repeatability≤ 0.1db
Changeability≤ 0.2dB
Working temperature-40 to 8o Celsius
Durability1000 times
Sustain tension≥ 100N
Fiber9/125um , 50/125um, 62.5/125um, OM3 etc
Diameter0.9mm
Coresduplex






Holight, established in 2004, is a leading professional fiber optic patchcord manufacturer and exporter from China. We focus on producing fiber optic connector parts to overall assembly to the customers from all over the world. With nearly 12 years' experience in the export market, Holight has been continually growing and expanding the product lines to keep up the pace of industry trends.

We integrate with the international advanced production technology, management experience and domestic market realities, offer customers the most suitable program of cooperation by the best quality, the most reasonable price, and the best customer service, that's why our products export to countries and regions of the world.

Our company name "Holight" is made up of Honesty, Belief and Righteousness, we will always keep this management mode into our mind! By this strong mode, we are confident to make our company remain invincible in the intense market competition and keep developing, growing and marching towards success and splendor.

Please kindly feel free to browse our webside, if you are interested in any of our products, please do not hesitate to contact us for more detailed information, and we will be highly appreciated to hear from you. We would like to answer any doubts or questions from you. We are looking forward to cooperating with clients from both home and abroad.
