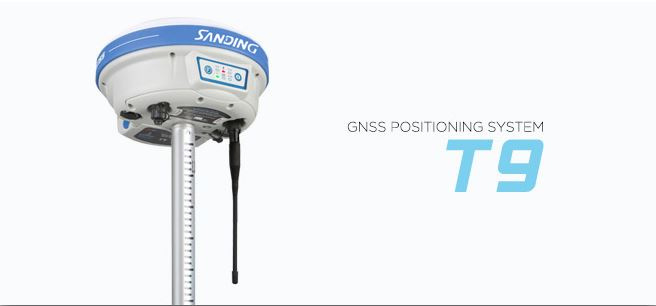

Name: Sanding System Rtk T9 Dual-Frequency Gnss
Brand: all-electronics-online.com
SKU: 797646885
Availability: InStock
Rating: 4.9 (32 reviews)

Price:	US $ 3450/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	System T9

Product Description

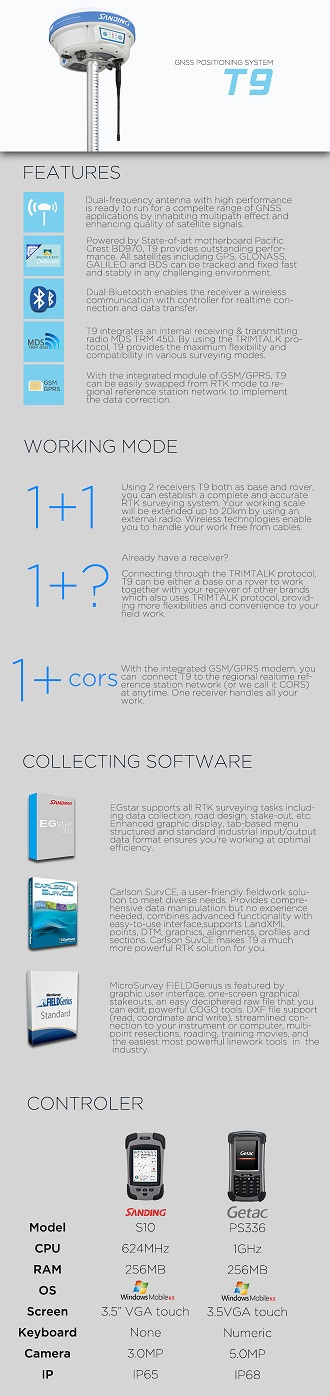

		T9
No. of Channel		220
Configuration		Dual frequency for GPS, GLONASS, BEIDOU and SBAS.
Single Tracked	GPS	L1 C/A, L2E, L2C, L5 (reserved)
	GLONASS	L1C/A,L1P,L2C/A(GLONASS M only),L2P
	BEIDOU	B1, B2
Position Accuracy
Code Differential	Horizontal	25cm+1ppm RMS
	Vertical	50cm+1ppm RMS
	SBAS	Typically <5m 3DRMS
Realtime Kinematic	Horizontal	8.0mm+1.0ppm RMS
	Vertical	15.0mm+1.0ppm RMS
	Time to Work	<8s
Static Performance	Horizontal Accuracy	3.0mm+0.5ppm RMS
	Vertical Accuracy	5.0mm+0.5ppm RMS
Communication		UHF RX/TX antenna port
		GPRS/GSM signal antenna port
		9-pin serial port (baud rate up to 115,200kbps)
		5-pin LEMO interface
		Multicable with USB interface for connecting with PC
		Bluetooth 2.4GHz class II, maximum range 50m
Internal Radio	Frequency	410-430MHz or 430-450MHz or 450-470MHz
		RX & TX
	Output Power	0.5W
GSM/GPRS Modem	Protocol	NTRIP
Bluetooth		2.4GHz Bluetooth, Stollmann's BlueMod+B20 functioned
Power	Internal Battery	7.4V, 2500mAh Li-on battery, 12-15V DC power input
	Battery Running Tim	6-10 hours on average
Weight		1.2kg with internal battery and internal radio
Dimension		184mm x 18mm x 96mm
Environmental	Operation Temp.	-40°C to 75°C (-49°F to 167°F)
	Storage Temp.	-55°C to 85°C (-67°F to 185°F)
	Shock/Drop	2m
Waterproofing		IP67
Data Output	Internal	4GB
		Update rate: 1Hz, 2Hz, 5Hz, 10Hz, 20Hz and 50Hz outputs
		Reference outputs: CMR, CMR+, RTCM 2.1, RTCM 2.2, RTCM 2.3, RTCM 3.0, RTCM 3.1
Accessories	Standard	2 internal batteries with charger
		450MHz all-direction antenna
		GPRS antenna
		Multi-communication cable
		Tribrach and 30cm mounting pole
		Carbon fiber pole for rover
