Hangzhou Gongheng Weighing Equipment Co., Ltd. >> S Load Cell and Alloy Steel Load Cell

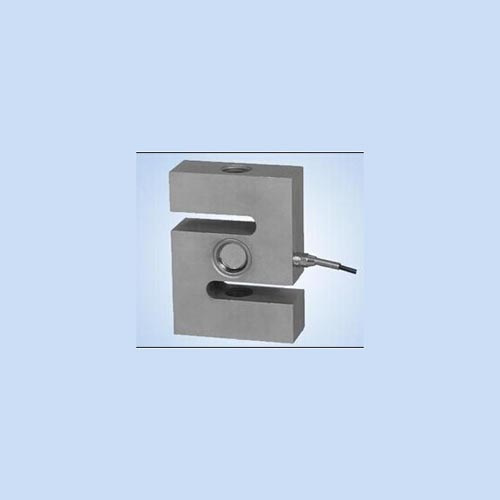

S Load Cell and Alloy Steel Load Cell

S Load Cell and Alloy Steel Load Cell
Price: US $ 5-20/Piece
Trade Terms: FOB,CIF
Min Order: 10/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: MS-1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CE: OIML
Pattern: Wheel Shaped

Product Description

Name: load cell
Modl: MS-1Capacity : 5KG-20T.
S type load cell

.
Specifications:
* Rted output(mv/v)                                     2.00±0.005      3.00±0.005
*Nonlinearity                                                 ±0.02%FS
*Hysteresis                                                   ±0.02%FS
*Repeatability                                               ±0.01%FS
*Creep(30minutes)                                     ±0.02%FS
*Zero balance                                               ±1.00%FS
*Temperature effect on zero                    ±0.02%FS/10ºC
*Temperature effect on output                 ±0.02%FS/10ºC
*Input resistance(Ω)                                   385±10
*Output resistance(Ω)                                350±3
*Insulation resistance                                 ≥5000MΩ
*Excitation voltage                                       10V(DC/AC)
*Compensated temperature range          -10ºC~+50ºC
*Operating temperature range                  -20ºC~+60ºC
*Safe overload                                               120%FS
*Cable                                                               Φ5.4*5m
Cable color code :
Input:     red(+)       black(-)
output:  green(+)   white(-)
KLB KG
0.025-0.155-50
0.2-1.5100-500
2-41-2T
5-102.5-5T

Hangzhou Gongheng Weighing Equipment Co., Ltd is a Hi-tech enterprise specialized in producing, researching, developing, and selling the electronic scales, crane scale, floor scale, platform scale, pallet truck scale, truck scale and weighing accessories and so on. We have a number of experienced and capable technical personnel and advanced technology, innovated designs, superior production equipment and self-contained QC system, and provides high quality products, best price and service.
We produces the products that are characterized by variety, complete specification, quick delivery, high quality, best price and have been widely praised by many users and distributors. In addition to the standard scales for common use, the company can design and produce products required by different users and meet their special demand. We have set up a well-managed network of in-sale and after-sale service as well as a complete mechanism for service supervision and hope to co-operate with the distributors by supplying the high quality crane scale, floor scale, platform scales at competitive price and on the principle of mutual benefit. Sincerely look forward to cooperating with you, welcome you into our HZGH.
