Round Cylinder Truck Scale Weighing Sensor 100 T (QH-71A)

Name: Round Cylinder Truck Scale Weighing Sensor 100 T (QH-71A)
Brand: all-electronics-online.com
SKU: 680905851
Availability: InStock
Rating: 5 (135 reviews)

Price:	US $ 135/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-71A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Truck Scale
Size:	240mm102mm229.5mm
Defend Grade:	IP66 & IP68
Type:	Double Shear Beam Type

Product Description

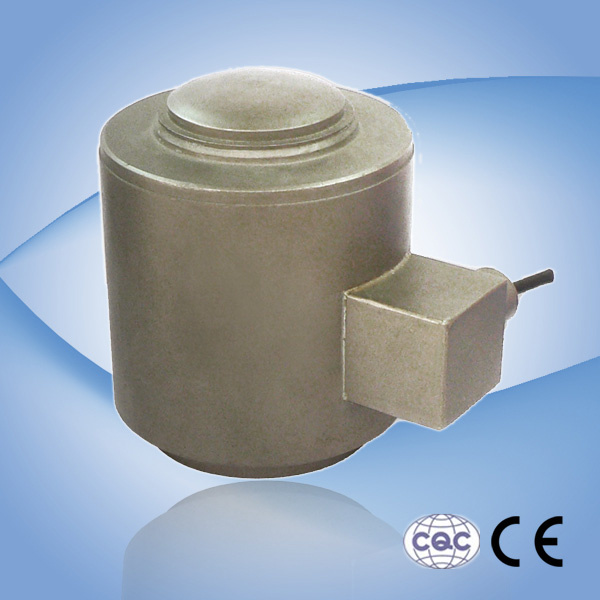

Round Cylinder Truck Scale Weighing Sensor 100 T (QH-71A)

QH-71A load cells are available in the capacities from 10t to 100t.
Stainless steel construction with Column type,automatic recovery.
Fully seal welding ,silicon adhesive sealed inside,waterproof, grease proofing,anti-corrosion and suitable for all kinds of environment.
Column type structure design.
Tension and/or compression loading and easy installation.
Suitable for truck scale, railway scale and other electronic weighing devices.

Features:

Features: Capacity :10 t to 100t.
IP grade: IP67 & IP68
High accuracy.reliable performance
Column type structure design , easy installation.

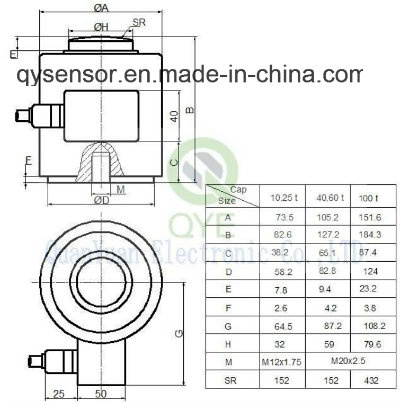

Electrical connection and Dimensions:

Specifications:

Specifications:
capacity	t	10,25,40,50,60,100
safe overload	%FS	150
ultimate overload	%FS	300
rated output	mV/V	2.0 ± 0.002
excitation voltage	Vdc	9 ~ 12
combined error	%FS	± 0.03
zero unbalance	%FS	± 1
non-linearity	%FS	± 0.03
hysteresis	%FS	± 0.03
repeatability	%FS	± 0.02
creep	%FS/30min	± 0.03
input resistance	Ω	450± 5
output resistance	Ω	480 ± 5
insulation resistance	M Ω	≥ 5000 @50 Vdc
operating temperature range	°C	-20 ~ +70
compensated temperature range	°C	-10 ~ +40
temperature coefficient of SPAN	%FS/10°C	± 0.02
temperature coefficient of ZERO	%FS/10°C	± 0.03

Electrical connection:

1.Excitation+ red Excitation- black Signal+ green Signal- white
2.Four-core shielded cable with polyethylene.
3.Cable diameter : 5mm
4.Cable length: 12 m

The cable length could be chose by customer's application.

Ordering code: model(QH-alloy steel,QB-stainless steel)-range-rated output-accuracy-defend grade- the length of cable
Example:QH-71A-25t-2.0mV/V-0.03%FS-IP67-12m
