| Prod Model: |
MPM416W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measurement Range: |
0~1...200m |
| Accuracy: |
+-0.25%Fs(Typ.) |
| Protection: |
IP68 |
| Housing: |
Stainless Steel |
| Wire: |
2-Wirre |
| Storage Temp: |
-40~100c |
| Operation Temp: |
-10~80c |
| Power Supply: |
15~28VDC |
| Output Signal: |
4~20madc |
| Overpressure: |
1.5 Times Fs |
Product Description

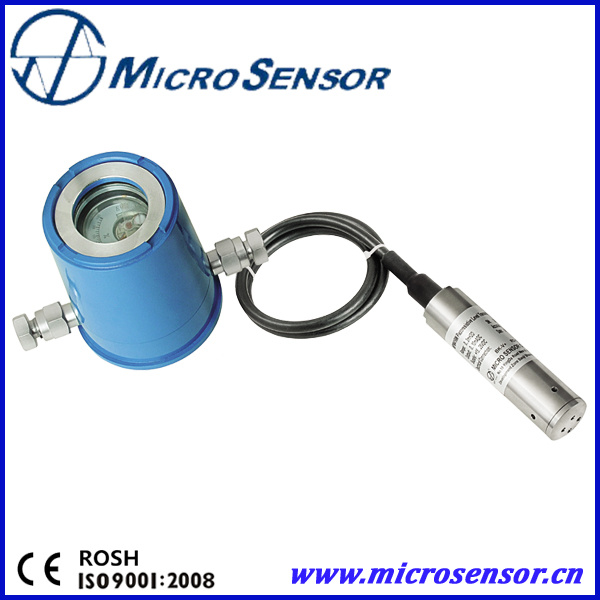

Reservoir Use Water Level Transmitter MPM416W
Features:
1. Full sealed;
2. Aluminum-alloy electric box;
3. Stainless Steel;
4. Integrated construction;
5. Shape-use;
6. Exia II CT6
Certificates:
1. Explosion-proof
2. CE
3 .CCS
Applications:
1 .Oil;
2. Chemical industry;
3. Power plant;
4. Water system;
5. Exploration
Specifications:| Pressure range | MPM416W | 1 2 5 10 20 50 100 200mH2O |
| MPM416WK | 1 2 3 4mH2O |
| MPM416WRK | 1 2 5 10 20mH2O |
| Overpressure | 1.5times FS |
| Accuracy | +0.25%FS(typ.) +0.5%FS(max.) |
| Stability error | +0.1%FS(typ.) +0.2%FS(max.) pressure range>20mH2O |
| +10mmH2O(typ.) +20mmH2O(max.) pressure range≤20mH2O |
| +20mmH2O(typ.) +30mmH2O(max.) only for MPM416WRK |
| Temp. drift | | Zero drift, + %FS/ºC | Sensitivitydrift,+%FS/ºC |
| Rang>10mH2O | 0.005(typ.) | 0.01(max.) | 0.02(max.) |
| Range ≤10mH2O | 0.01(typ.) | 0.02(max.) | 0.02(max.) |
| Range ≤5mH2O | 0.015(typ.) | 0.03(max.) | 0.02(max.) |
| Range ≤2mH2O | 0.025(typ.) | 0.05(max.) | 0.02(max.) |
| Transmitting | 2-wire | 3-wire | 3-wire |
| Power supply | 15~30VDC(Intrinsic safe version is supplied through safe barrier) | 15~28VDC | 15~28VDC |
| Output signal | 4~20mADC | 0~10/20mADC | 0/1~5/10VDC |
| Load(Ω) | <(U-15)/0.02A | <(U-15)/0.02A | >5k |
| Material contacting with media | MPM416W | Housing: stainless steel 1Cr18Ni9Ti | O-ring: Viton |
| Diaphragm: stainless steel 316L | Rubber casing: NBR |
| Cable: Φ7.2mm PVC/Polyurethane cable with vented tube |
| MPM416WK | Stainless steel 1Cr18Ni9Ti, red copper, Viton O-ring |
| MPM416WRK | Stainless steel 1Cr18Ni9Ti |
| Operation temp. | -10ºC~80ºC; Intrinsic safe version: -10ºC~60ºC |
| Storage temp. | -40ºC~100ºC |
| Protection | IP68(sensor part), IP65(connection box) |
| Ex-proof class | ExiaIICT6 |
| | | | | | | | |
Order guide:| MPM416W | Submersible Level Transmitter |
| MPM416WK | Armoured Level Transmitter |
| MPM416WRK | Flexible Armoured Level Transmitter |
| | | range(mH2O) | [0~X mH2O]L | L: cable length, suggested: L-X=(1~2)m | MPM416W |
| L: armoured tube length | MPM416WK |
| L: flexible armoured tube length | MPM416WRK |
| | | | Code | Output signal |
| E | 4~20mADC |
| F | 1~5VDC |
| J | 0~5VDC |
| Q | 0~10mADC |
| U | 0~20mADC |
| V | 0~10VDC |
| | | | | Code | Construction material |
| | diaphragm | Pressure port | Housing |
| | 22 | SS 316L | SS | SS |
| | 24 | SS 316L | SS 316L | SS 316L |
| | 25 | Tantalum | SS | SS |
| | | | | Code | Others |
| | M1 | 0~100% hand pointer indicator (MPM416WRK has no this option) |
| | i | Intrinsic safe version ExiaIICT6 |
| | C1 | M20×1.5 male, face type seal | MPM416W |
| | C3 | G1/2 male |
| | C5 | M20×1.5 male, waterline seal |
| | T | Ship-use |
| | F1 | Fixed flange(MPM416WK has no this option) |
| | 1F1 | Stainless steel flange 1 DN50 | MPM416WK |
| | 1M1 | Stainless steel male M42×1.5 |
| | 1F2 | Stainless steel flange 2 DN10 |
| | 1M2 | Stainless steel male M30×1.5 |
| | 2F1 | Carbon steel plating zinc flange 1 DN50 |
| | 2M1 | Carbon steel plating zinc male M42×1.5 |
| | 2F2 | Carbon steel plating zinc flange 2 DN10 |
| | 2M2 | Carbon steel plating zinc male M30×1.5 |
| | | | | | | | | |
| MPM416W [0~3mH2O]5 E 22 iC1 the whole spec |
| | | | | | | | | | | | | |
