Q20b 0.1 High Performance Split Core AC Current Transformer Sensor Price

Name: Q20b 0.1 High Performance Split Core AC Current Transformer Sensor Price
Brand: all-electronics-online.com
SKU: 721809712
Availability: InStock
Rating: 4.4 (131 reviews)

Price:	US $ 50/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q20B
Ratio:	1000: 1 or 2000:1 (Customized)
Accuracy Class:	0.1%, 0.2%, 0.5%
Primary Current:	0 - 200A AC
Secondary Current:	0 - 200mA AC or 0 - 200mv AC(Customized)
Max. Cont. Input Current:	240A
Frequency Range:	40Hz-2000Hz
Dielectric Strength:	3kv 50Hz/60Hz&Nbsp; at 1 Minute
Output:	2.5 Meter Cable with D01 Connector
Standard:	En 61010-1, En 61010-2-032, IEC60044-1
Color:	Gray
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

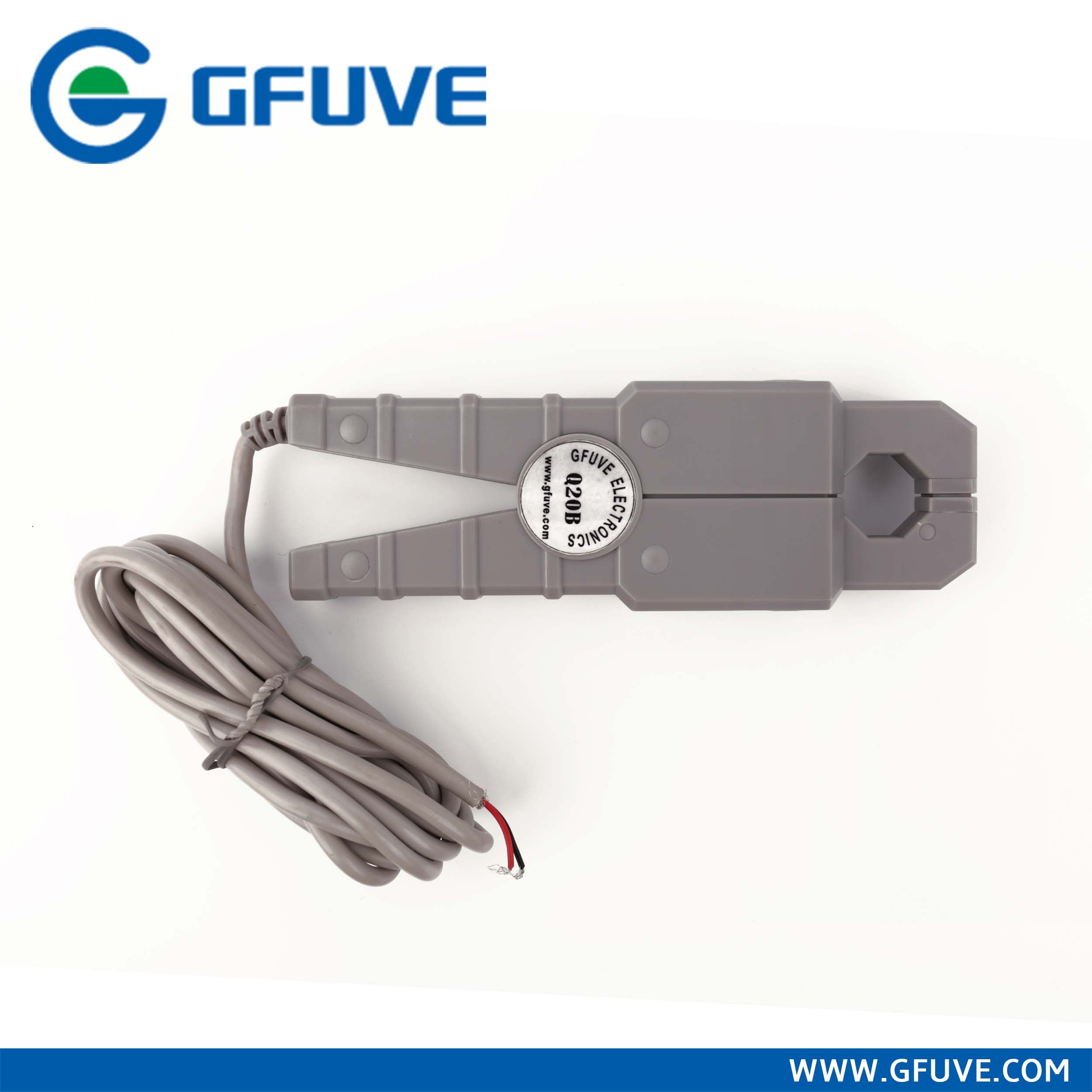

Q20B 0.1 High performance split core AC current transformer sensor price
The model Q20B openable jaw AC current clamp on cts are best-in-class devices for use with power meters, power analyzers and high performance oscilloscopes.
Applications
1. Electric energy meter calibrator (on site)
2. Double clamp type ground resistance tester
3. Double clamp type phase volt-ampere meter
4. Digital multi-meter
5. Multi-function energy meter
6. Oscilloscope
7. Power quality analyzer
8. Matched instruments
9. Calibration instrument on site
Features
Suitable for 200A cable online measurement
Holding wire diameter: φ20mm
Dimension: 56mm×168mm×27mm
Load capacity: ≤4Ω
Installation: clamp type
Output mode: lead output
Parameters

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%, 0.2%, 0.5%
Primary current	0 - 200A AC
Secondary current	0 - 200mA AC or 0 - 200mV AC(customized)
Max. Cont. Input current	240A
Over voltage category	Over voltage category
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Output mode
Dimensions (L x W x H) (mm)	56 x 168 x 27
Weight (g)	350
Max. jaw opening (mm)	20
Color	Gray
Material	PC+ABS+Polycarbonate, UL94 V0

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
