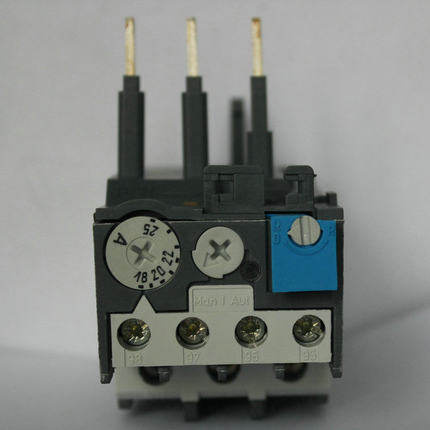

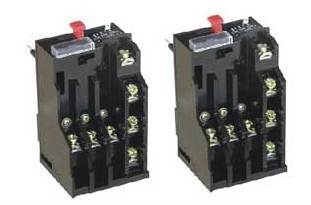

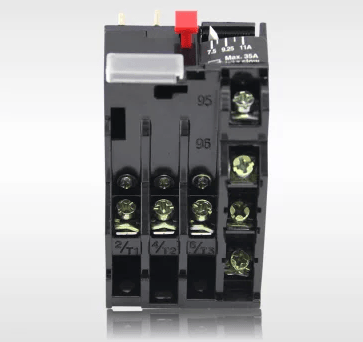

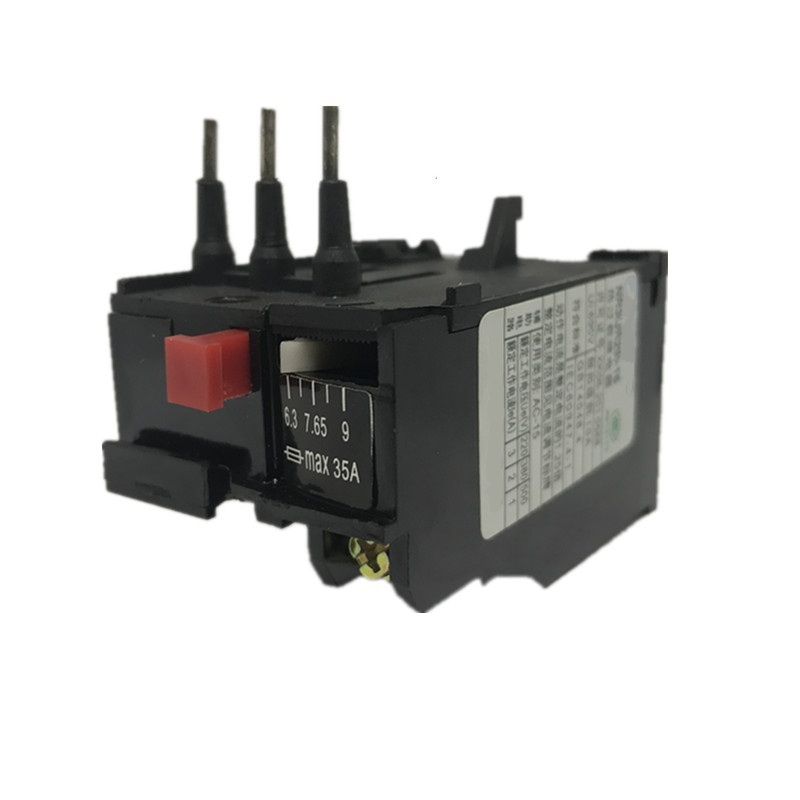

Professional Factory for High Quality T16 Thermal Overload Relay

Name: Professional Factory for High Quality T16 Thermal Overload Relay
Brand: all-electronics-online.com
SKU: 731352072
Availability: InStock
Rating: 4.3 (145 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	T16

Product Description

APPLICATION

The relay is suitable for using in the power circuits up to rated voltage 660V , rated current 500A 50 Hz or 60Hz for overload and loss of phase protection or three phase induction motor and often combined with B series ac contactor into mangnetic starter.,

T 16 & T25 thermal relays have a friction trip operating mechanism with loss of phase eunning protection, pullback spring type operation mechanism (jump mechanism ) with loss of phase protection for T85 & TSA45 , back pack jump mechanism for t170 & T105 , Main circuit with instrument transformer jump mechanism with loss phase for T250 &T 370.

SPECIFICATION

Type		T16	T25	TSA45	T85
Rated current (A)		16	25	45	85
Thermal element setting range		0.11-17.6	0.17-32	0.28-48	6.0-100
Auxiliary contacts	number	1NO.1NC	1NO.1NC	1NO.1NC	1NO.1NC
	Rated operating Current(A)	220V :3	220V:3	220V:3 1.7	220V:3 1.7
		380V:2	380v:2	380V:2 13	380V:2 13
		500V:1.5	500v:1.5	500V:1.5	500V:1.5
Type		T105	T170	T250	T370
Rated current (A)		105	170	250	370
thermal element seting range(A)		27-115	90-200	100-400	100-500
auxiliary contacts	Number	1NO.1NC	1NO.1NC	1NO.1NC	1NO.1NC
	Rated operating current (A)	220V:3 2.5	220V:3 2.5	220V:3 1.7	220V:3 1.7
		380V:2 1.3	380V:2 1.3	380V:2 1.3	380V:2 1.3
		500V:1.5 0.8	500V:1.5 0.8	500V:1.5	500V:1.5

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
