| Prod Model: |
pcb assembly manufacturer |
| Assembly: |
SMT, DIP, COB, BGA |
| Size: |
200*304mm |
| Copper Thickness: |
Rigid:0.5-12 Oz |
| Biz Type: |
Factory |
| Metal Coating: |
Copper |
| Mode Of Production: |
DIP |
| Layers: |
Double-Layer |
| Base Material: |
FR-4 |
| Certification: |
SGS |
| Customized: |
Customized |
| Condition: |
New |
Product Description

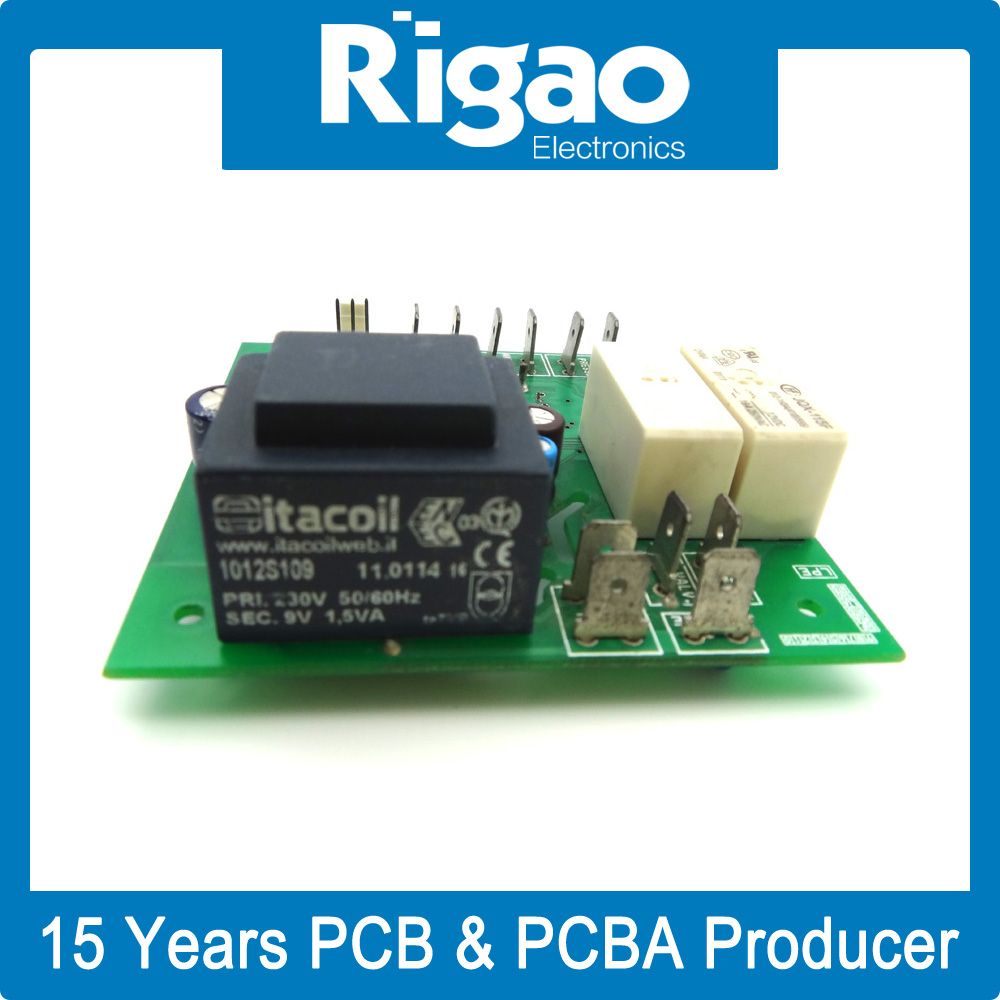

Professional customized pcb assembly manufacturer
Shenzhen Rigao Electronics Co, . Ltd is an experienced pcb assembly manufacturer in Shenzhen, China. After several years' developing and improving, our company establishes our main business in three principal areas-Printed Circuit Boards, PCB Assembly and Components Procurement. From prototype to mass production, we are able to guarantee a complete service with technical back up, offering a cost advantage and continuity of supply.
For making PCBA, customers just need to provide us with Gerber file and bill of material. Components procurement is one of the featured services we can provide. IC, battery, fuse, LCD, transformer, LED Diode, connector, sensor, we could purchase all these electronic parts to our customers.
Our PCBA capability and services: SMT/THT/DIP.
1. Component Purchasing Service
2. SMT assembly and through hole components insertion
3. IC pre-programming / Burning on-line
4. Function testing as requested
5. Complete Unit assembly (which including plastics, metal box, Coil, cable inside etc)
6. Manufacture elevator control pcb board
7.Ppackaging design
PCB/PCBA Description:
1. Single sided PCB, double sided PCB & multilayer PCB with competitive price, good quality and elevator control pcb board.
2. FR-4, FR-4 High TG, CEM-1, CEM-3, Aluminum base material.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
5. Quantities range from prototype to medium and batch production.
Capacbility of pcb
| No | Item | Speccification |
| 1 | PCB Layers | Mass production:2~58layers / Poilt run :64Layers |
| 2 | Board thickness | 0.2mm~0.3mm |
| 3 | Copper Thickness | 0.5OZ~4OZ |
| 4 | Surface Finishing | HASL,Immersion Gold,Immersion Tin,OSP,OPS+ENIG,Immersion Silver,ENEPIG,Gold Finger |
| 5 | Gerber files | Gerber file or other pcb file is acceptable |
| 6 | Min.Hole size | Mechanical drill:0.2mm Laser drill : 0.075mm |
| 7 | Min.Line Width | 0.1mm |
| 8 | Min.Line Spacing | 0.1mm |
| 9 | Min.Solder Mask Clearance | 0.076mm |
| 10 | Min.Annular Ring | 0.076mm |
| 11 | Max.Panel Size | 1150mm*560mm |
| 12 | Max.Copper Thickness | UL certificated:6.0 OZ / Polit run :12 OZ |
| 13 | Profile and V-Cut | V-Cut, Jump V-Cut, CNC V-Cut, CNC-Routing, Stamping and Believeing
|
Capability of pcb assembly:
| Type of PCB Assembly | SMT, Thru-hole,COB |
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) _130×79mm,Flip-CHIP,QFP,BGA,POP |
| Max. component height::25mm |
| Max. PCB size:680×500mm |
| Min. PCB size:no limited |
| PCB thickness:0.3 to 7mm |
| Wave Solder | Max. PCB width:450mm |
| Min. PCB width: no limited |
| Component height:Top 120mm/Bot 15mm |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum |
| Surface Finish:plating Au, plating sliver , plating Sn |
| Air bladder rate:less than20% |
| Supporting: | Software burning and Function Testing |
| Testing | X-RAY Inspection & AOI Test, ICT,Probe flying,burn-in,function test,temperature cycling |
| Lead Time | 12days-15days |
| File Fomat | Bill of Materials,Gerber Files, Pick-N-Place File (XYRS),PCB,Altium, EDA etc |
needs and problem about pcb assembly, contact me!
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
