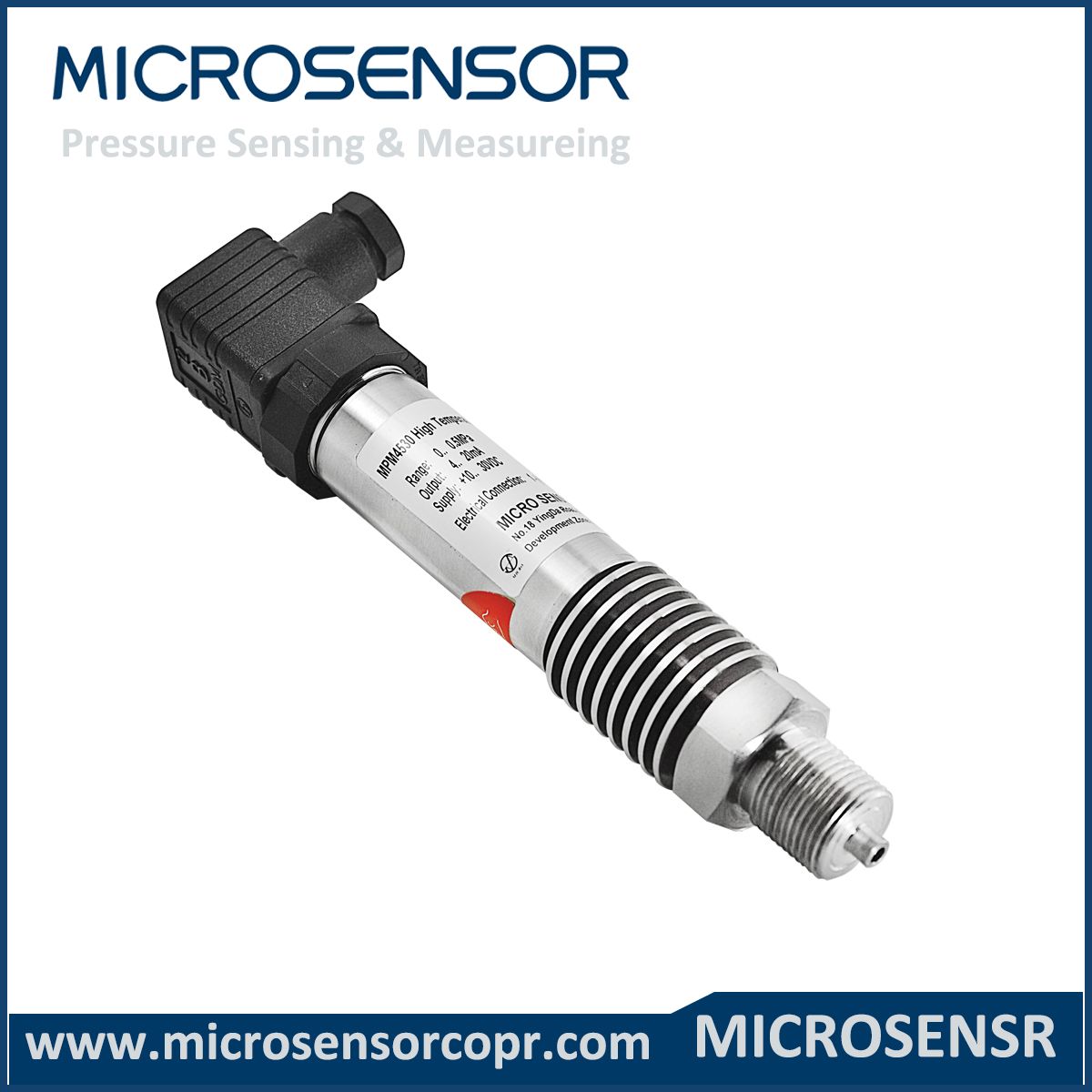

Pressure Transmitter for High Temperature Medium Use Mpm4530

Name: Pressure Transmitter for High Temperature Medium Use Mpm4530
Brand: all-electronics-online.com
SKU: 741796415
Availability: InStock
Rating: 4.8 (127 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM4530
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range:	0~0.5MPa...100MPa(
Accuracy:	+-0.25%Fs(Typ.)
Protection:	IP65
Housing:	Stainless Steel
Output Signal:	4~20madc
Power Supply:	10~30VDC
Humidity:	0~90%
Media Temperature:	-40~150c
Wire:	2-Wirre
Pressure Port:	Stainless Steel

Product Description

            Pressure Transmitter for High Temperature Medium Use Mpm4530

Features:
1.IP65;
2.Anti-corrosive;
3.Long term stability;
4.Wider temperature

Applications:
1.Medicine;
2.Chemical industry;
3.Oil;
4.Steam;
5.Power station

Specifications:
1.Pressure range: -0.1MPa0MPa~0.01MPa160MPa(G);0MPa~0.025MPa60MPa(A)
2.Overpressure:    200%FS or 150MPa(min.value is valid)

3.Media:           liquid or gas which is compatible with stainless steel
4.Power supply:       10~30VDC, suggested 24VDC
5.Output signal:      4~20mADC 2-wire

6.Load:                RL≤((U-10)/0.02)(Ω)
7.Accuracy:        ±0.25%FS, ±0.5%FS(including non-lin., rep. and hys.)
8.Thermal error:      ≤±0.025%FS/ºC(@25ºC)
9.Long-term stability: ≤±0.5%FS/year
10.Endurance:       106 pressure cycles
11.Environment temp. -40ºC~+80ºC
12.Media temp.:       -40ºC~+150ºC
13.Relative humility:   0~90%RH
14.Protection:      IP65
15.Response frequency: >1kHz

16.Insulation:       100MΩ,50VDC
17.Pressure port and housing: stainless steel 1Cr18Ni9Ti

18.Wiring plug: Hirschmann plug

Order guide:

MPM4530

High-temperature Pressure Transmitter

Measurement range

0~0.004MPa100MPa

[0~X] kPa or MPa

X= measurement range

Type code

MSV

Pressure range: -0.1MPa0~0.004MPa160MPa

Code

Output signal

4~20mADC

Code

Others

M20×1.5 male, waterline seal

Gauge

Absolute (only for type MSV)

MPM4530 [0~2]MPa ASV E C5G the whole spec

Micro Sensor Co., Ltd, the leading manufacturer of piezo-resistive pressure sensors and transmitters in China, was founded by Sino-US joint venture in 1993. We are providing pressure sensing & measuring solutions to customers all over the world.

With Digital Wide-Temperature Compensation, Non-linearity Correction and Data-Collection by Bus Operation, we supply users OEM pressure sensors, pressure transmitters, level transmitters, measuring and controlling instruments, which have high quality and reliable performance in the local on-site environment.

Based on more than 20 years production experiences, Micro Sensor now have manufacturing capacity of 1.2 million pieces pressure sensors and 400 thousand pieces transmitters in one year. And we are also capable to satisfy the customized specification and designs according to clients' Specified requirements.

Quality is the life of company. Micro Sensor executes I S O 9 0 0 1 International Management System strictly to make sure every procedure qualified in our production. Furthermore, the main products for pressure sensors and transmitters, are also certificated by C E, R o H S, C B, U L and A T E X respectively for different global markets.

Micro Sensor now does business with customers more than 70 countries. More and more global friends know Micro Sensor and make win-win cooperation with us. Wherever you are, whenever you are, find Micro Sensor for any pressure sensing & measuring question. We are looking forward to supporting you with our best services!
