Ppm-T127e Submersible Level Transmitter

Name: Ppm-T127e Submersible Level Transmitter
Brand: all-electronics-online.com
SKU: 815604595
Availability: InStock
Rating: 4.6 (35 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM-T127E
Certification:	CMC

Product Description

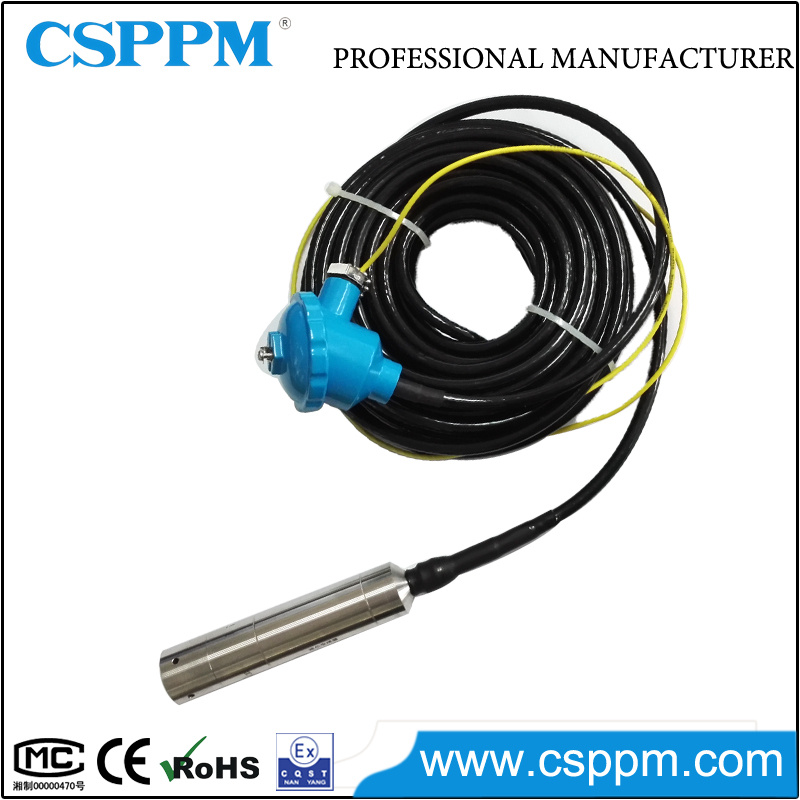

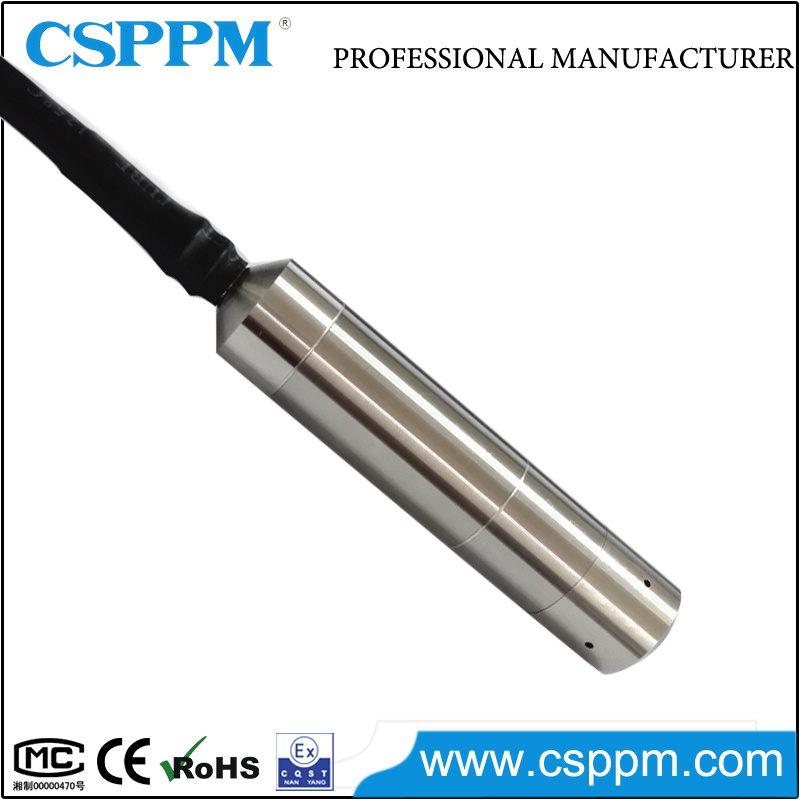

PPM-T127E Submersible Level Transmitter

Description
The Model PPM-T127E submersib level transmitter has been designed for simple measuring requirements in level measurement. It offers excellent quality, and it's cost-efficient and reliable. It has different types of output signal alternative including analog signal and digital signal. It has a high accuracy up to 0.1%FS. With IP68 ingress protection, PPM-T127E is suitable for level measurement up to 500m water column. The fully-welded construction ensures permanent sealing and a long service life.

Applications
1. Level measurement in rivers and lakes
2. Level measurement in vessel and storage
3. Control of sewage discharge and pumping stations
4. Level measurement in cistern and coolant reservoir

Features
1. Cost-efficient
2. Reliable and stable
3. High accuracy up to 0.1%FS
4. Various kinds of output signal: 4~20mA, Modbus-RTU RS485/232
Specification

Measuring range	0~0.5m…2m…5m…10m…15m…500m H₂O
Overpressure	3 times FS
Power supply	12~36VDC
Output signal	Analog signal: 4~20mADC, Digital signal:Modbus RTU/RS485/232
Accuracy	0.1%FS, 0.2%FS, 0.5%FS
Resolution	0.01%FS
Temp. drift	≤0.008%FS/ºC(-20~+70ºC); ≤±0.02%FS/ºC(-20~-30ºC)
Long-term stability	≤±0.1%FS/year (Typical values)
Operation temp.	-30~+70ºC
Medium temp.	-30~+80ºC For high temperature: -20~+150ºC/250ºC
Storage temp.	-30~+85ºC
Igress protection	IP68
Housing	Stainless steel 1Cr18Ni9Ti
Diaphragm	Stainless steel 316L
O-ring	Buna-N rubber
Cable	Φ7.5mm PVC
Display	With LED/LCD display Without display

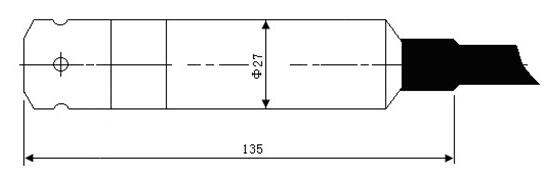

Dimensions in mm

CHANGSHA TAIHE ELECTRONIC EQUIPMENT Co., Ltd is specialized in manufacturing and selling pressure sensors, transmitters, automation instrument and system.

Based on Central South University (CSU), a very famous University in China, and making full use of its unique resources, TAIHE has became a powerful economic entity with the integrated of research, production, sales and service. We have a professional and experienced team, and most of them have been engaged in sensor and control system for many years.

We can provide different kinds of pressure, level, temperature sensors, transmitters etc. And we devote to the development of sensor and transmitter products. With the excellent performance and reliable quality, our sensors and transmitters have been widely applied to mining, petroleum, smelting, chemical industries and other fields. And we are also able to satisfy the customized specification and designs according to specified requirements of clients.

Adhering to value of "Customer First, Innovation, Cooperation", we keep improving our products and service.

Looking forward to be your best sensor and transmitter supplier!
