Prod Model:	W19-1A
Certification:	UL TUV CQC
Installation Type:	PCB
Contact Material:	Agsno2 Agni
UL Insulation Class:	F
Operate Time:	Max.10ms
Release Time:	Max.5ms
Weight:	3G

Product Description

Basic Info

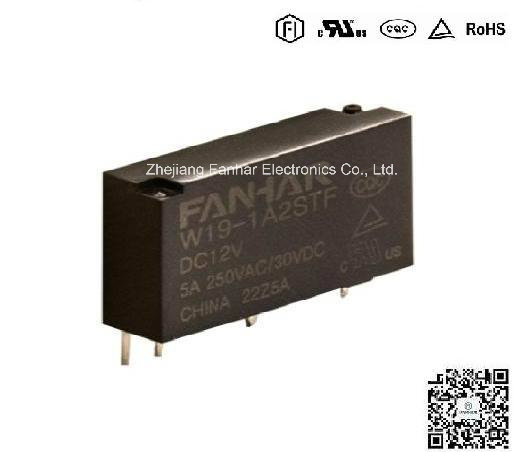

Model NO.: W19
W19 = Vertical installation W19F = Horizontal Installation
PCB: 1 = type1 2 = type 2
Contact Form: 1A = 1 OPEN
Product protective: S=Sealed Nil= Soldered
Contact material: T=AgSnO2 Nil:= AgNi
Coil Power: Nil= 120mW H = 180mW
Insulation System:Nil:B grade F= F grade
Dimension: 20*5*12.5 MM
Weight: Approx 3g
Trademark: FANHAR
Origin: China

Product Description
1. 5A contact switching capability
2. Creepage distance and spacial distance are greater than 3.2mm.
3.UL insulation class : F grade.
4. High sensitivity, coil power is only 120mW.

Contact Data:

Contact Form	1A
Rated load	3A 250VAC/30VDC 5A 250VAC/30VDC
Max Switching Voltage	277VAC/30VDC
Max Switching Current	5A
Max Switching Capacity	1250VA/150W
Min Allowing load	5VDC 100mA
Contact Resistance	100mΩ (at 6VDC 1A)
Insulation Resistance	1000MΩ (at 500VDC)

General Data:

Withstand Voltage Between open contacts	1000VAC 1min
Between coil and contacts	3000VAC 1min
Withstand impact voltage	Between coil and contacts 6kv(1.2X50us)
Operate Time	Max.10ms
Release Time	Max.5ms
Mechanical life	20,000,000 ops ON/OFF = 0.1s/0.1s
Electrical life	3A 250VAC/30VDC 100,000 ops ON/OFF=1s/9s 5A 250VAC/30VDC 50,000 ops ON/OFF=1s/9s
Impact Resistance Misoperation Durability	100m/s² Approx10G 1000m/s² Approx100G
Vibration Resistance Misoperation Durability	10 - 55 Hz 1.5mm Double Amplitude 10 - 55 Hz 1.5mm Double Amplitude
Temperature Range	-40ºC to +85ºC
Humidity	5% to 90%
Installation type	PCB Mounting

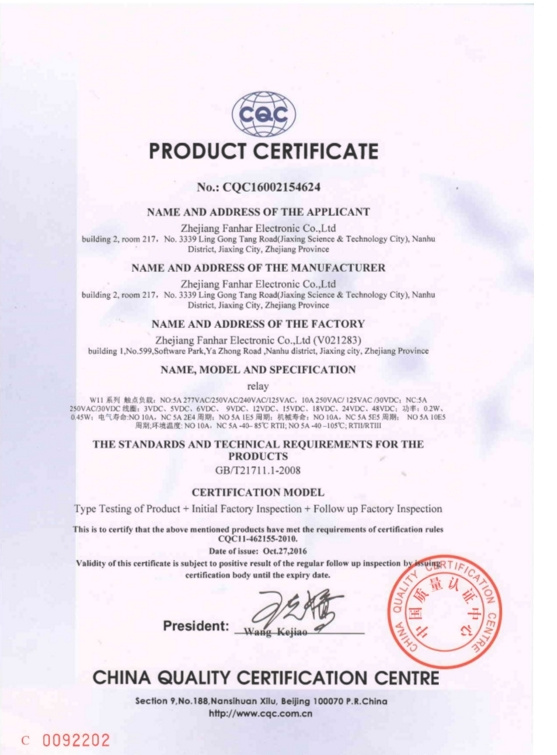

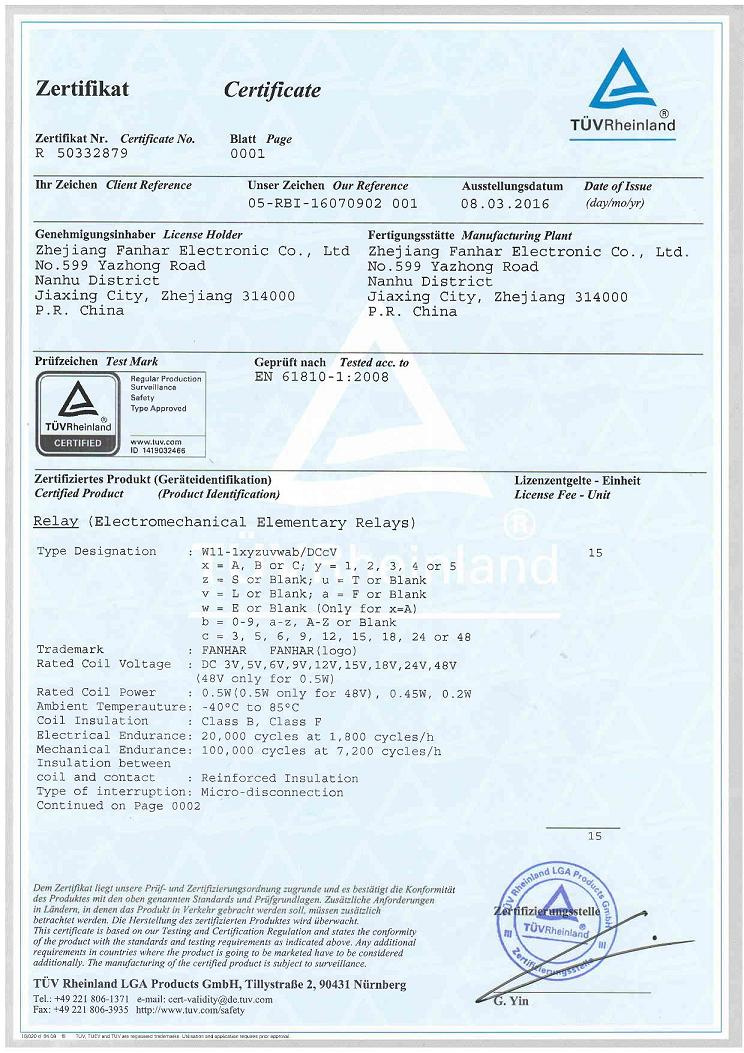

Certification	TUV:R50346402 CQC:CQC16002144390

Coil Data:
Standard:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 3V	Below 75% rated voltage (initial)	above 5% rated voltage (initial)	40mA	75Ω	120mW	90-130 % Rated voltage
DC 5V			24mA	208.3Ω
DC 6V			20mA	300Ω
DC 9V			13.3mA	675Ω
DC 12V			10mA	1200Ω
DC 15V			8mA	1875Ω
DC 18V			6.7mA	2700Ω
DC 24V			5mA	4800Ω

Sensitive:

Coil rated voltage	Operating voltage	Releasing Voltage	Coil rated Current (±10%)	Coil resistance(±10%)	Rated consumed power	Allowing voltage
DC 3V	Below 75% rated voltage (initial)	above 5% rated voltage (initial)	60mA	50Ω	180mW	90-130 % Rated voltage
DC 5V			36mA	139Ω
DC 6V			30mA	200Ω
DC 9V			20mA	450Ω
DC 12V			15mA	800Ω
DC 15V			12mA	1250Ω
DC 18V			10mA	1800Ω
DC 24V			7.5mA	3200Ω
