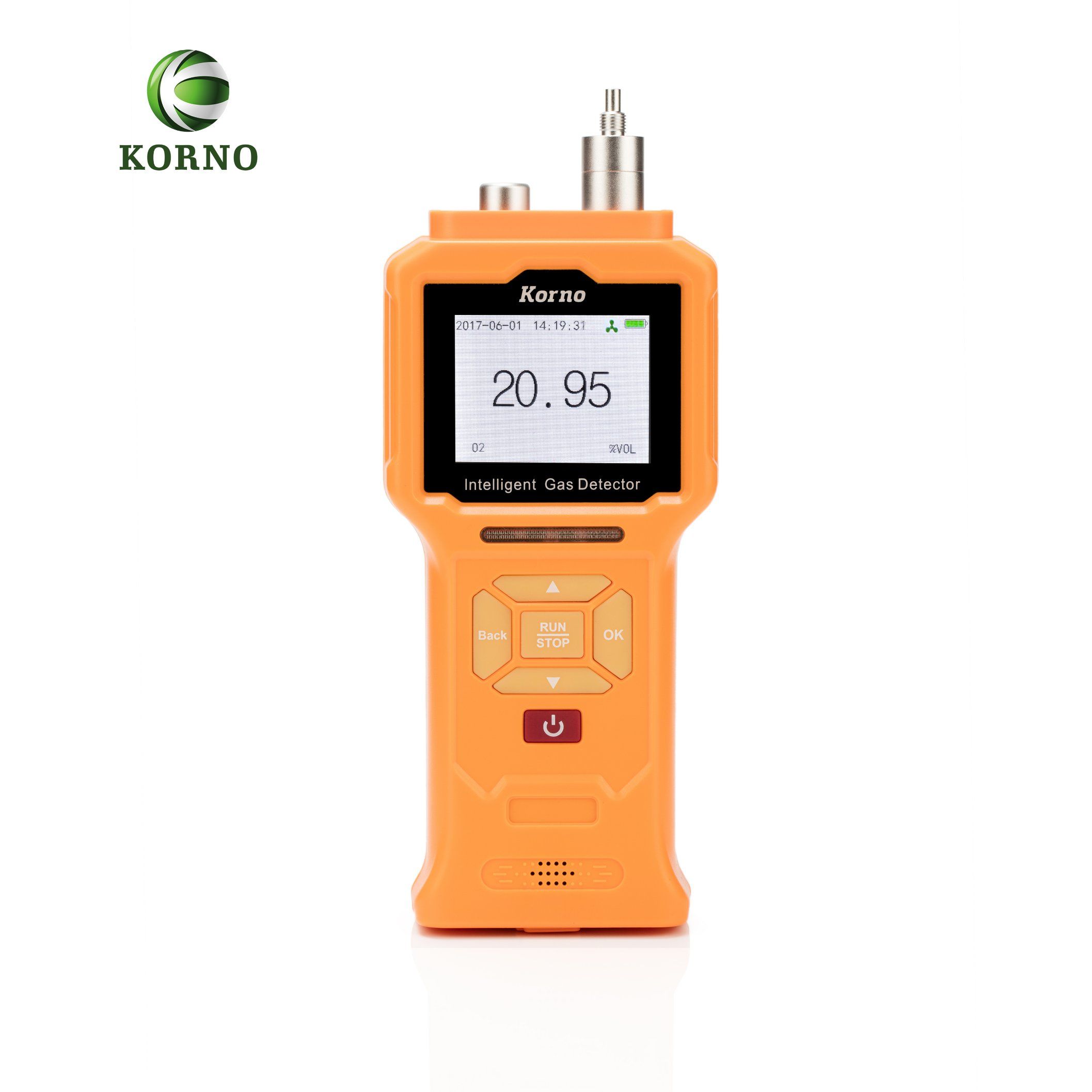

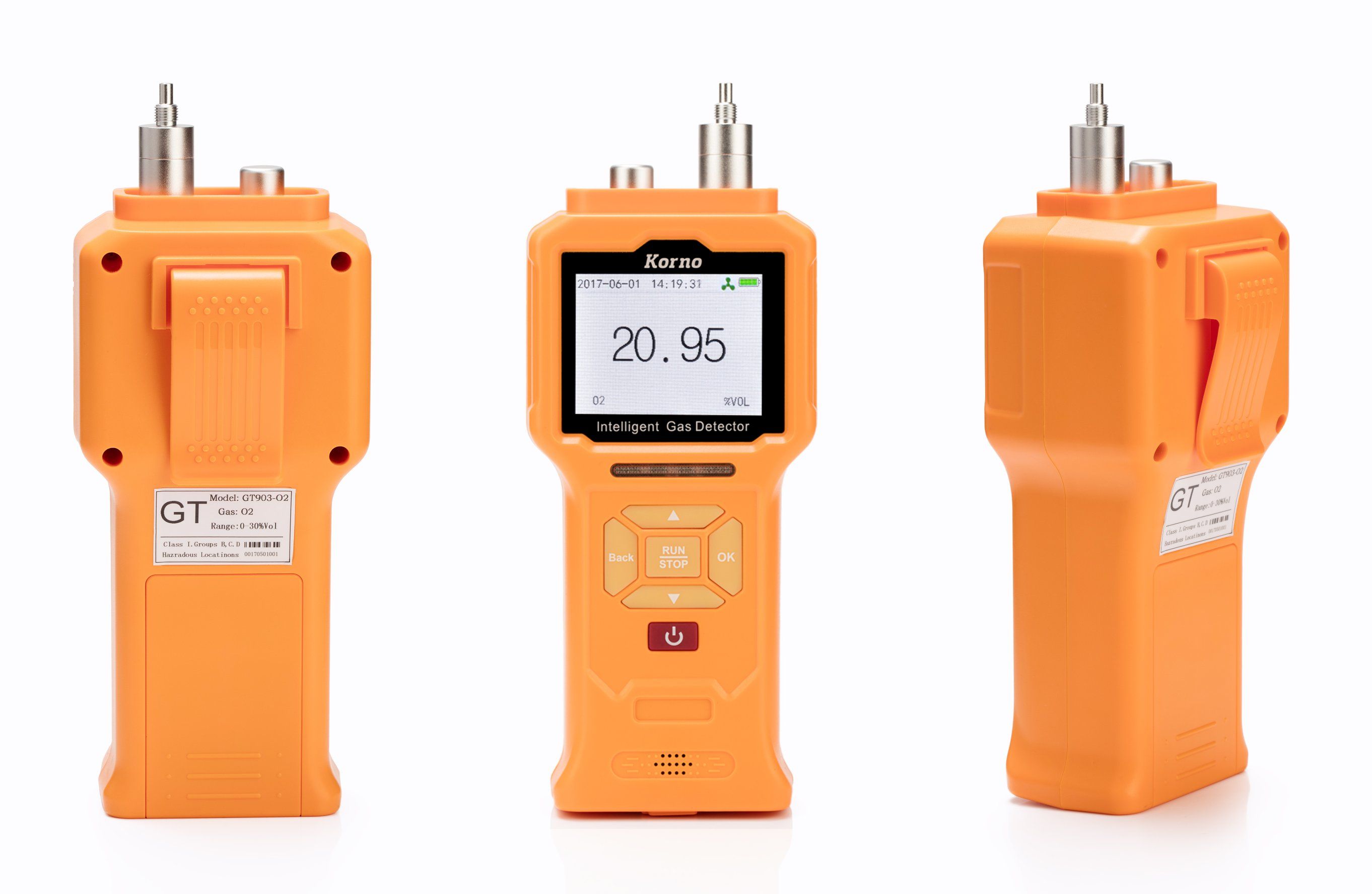

Portable IP66 Ethyne Detector C2h2 Analyzer
| Price: |
US $ 515.95-545.88/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
GT903-C2H2 |
| N.W: |
0.35kg |
| G.W: |
0.7kg |
| Screen Size: |
2.4 Inch LCD HD Color Screen |
| Explosion Proof Sign: |
Exdll CT4 (Ia) |
| IP Rating: |
IP 66 |
| Power: |
4000mA High Capacity Polymer Rechargeable Battery |
| Sampling: |
Pumping,Build-in Pump |
| Storage: |
Large Data Logger(100,000 Groups) |
| Alarm Type: |
Sound and Light Alarm |
| Case Material: |
ABC+PC |
| Type: |
Semiconductor |
Product Description

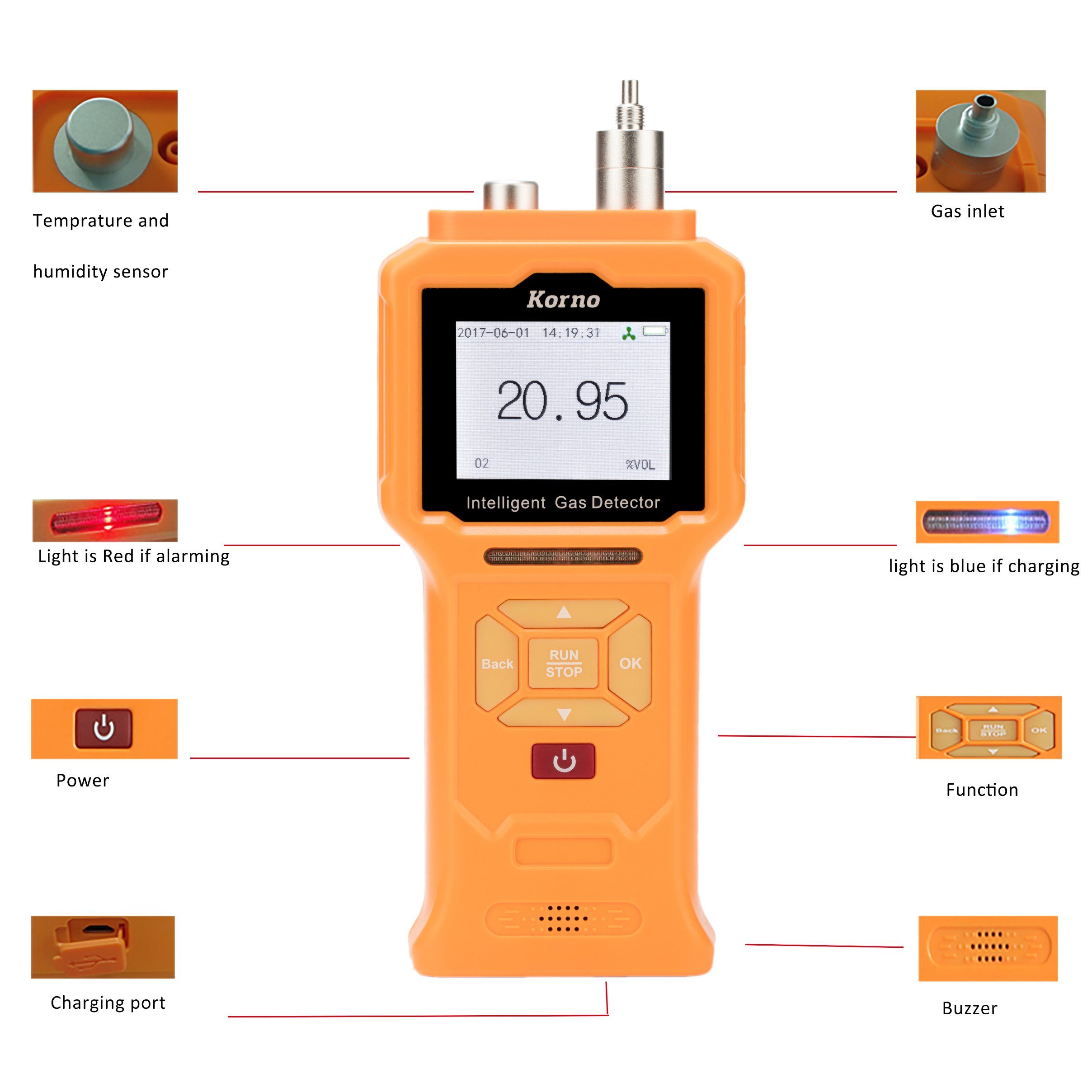

1) DescriptionGas concentrations and history data can be displayed in the 2.4 inches LCD HD color screen, user can read all information at a glance . It can also export history data to computer via USB port so that the users can view in a EXCEL format or graph format.
2) Features1.Three concentration units are available:PPM,%VOL,mg/m3.
2.Up to 100,000 group data can be storage
3.Temperature and humidity detect function is available.
4.Four operation modes are optional:Detection mode,Storage mode,Display mode,Pumping mode.
5.STEL&TWA readouts
6.All software automatic calibration
7.Chinese and English operation model are available,user-friendly.
8.Can be exported to the computer to view historical data in a graph format or EXCEL format
3) Product Specifications| Product type: | Portable,Acetylene(C2H2) |
| Detection Range: | 0-1%VOL |
| Resolution: | 0.01%VOL |
Temperature and relative humidity:
(Optional) | Temperature detection range:-40 ~ 120ºC
Humidity detection range:0-100%RH |
| Detection pattern: | Pumping, the flow rate is adjustable. |
| Detection Accuracy: | ≤±5%F.S | Linearity Error: | ≤±1%F.S |
| Reaction Time: | ≤20 S(T90) | Zero drift: | ≤±1%(F.S/Year) |
| Detection Method: | Real-time detection mode, timing detection mode and cycle detection mode can be switch freely |
| Storage Method: | Automatically saving and manually saving is available,
Up to 100,000 group data ,user can view history data on the display. |
| Explosion Proof Sign: | Exdll CT4 (IA) | Case material: | ABS+PC |
| IP rating: | IP66 | Operating Temperature: | -30 ~ 60ºC(-22~144ºF) |
| Power: | 4000mA high capacity polymer rechargeable battery | Operating Humidity: | ≤90%RH,Non-condensing |
| Dimensions / Weight: | 180*88*55 mm(L×W×H)
0.5 Kg(net weight) | Operating Pressure: | -30Kpa ~ 100Kpa |
| Standard Accessories: | -Portable aluminum Case
-User manual
-Certification
-USB charger+Data cable
-Calibration cover |
| Optional Accessories: | -Vapor filter
-Hose
-Sampling handle(stainless steel ,approx 60cm) |
4) F&Q:Q1:Can I have a sample order?
A1: The sample order to test are welcomed at the first time.
Q2:How about your production capacity and quality control?
A2:We have written instructions for incoming material&finished products inspections and testing.All the finished products will be 100% inspection and all the non-conforming units will be clearly marked and segregated to repaired and re-inspection.
Q3:How can I get a good price?
A3:We are 100% sure that we can provide you high value with competitive price and please attach your detailed request, application place, order quantity, delivery mode,payment terms to the inquiry mail ^ ^
