Portable Fiber Optic Power Meter with Low Price
Price: |
US $ 60/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union,Paypal |
Prod Model: |
tc610 |
Application: |
Communication |
Type: |
Single-mode Fiber |
Certification: |
CE |
Connection Structure: |
All |
Product Description

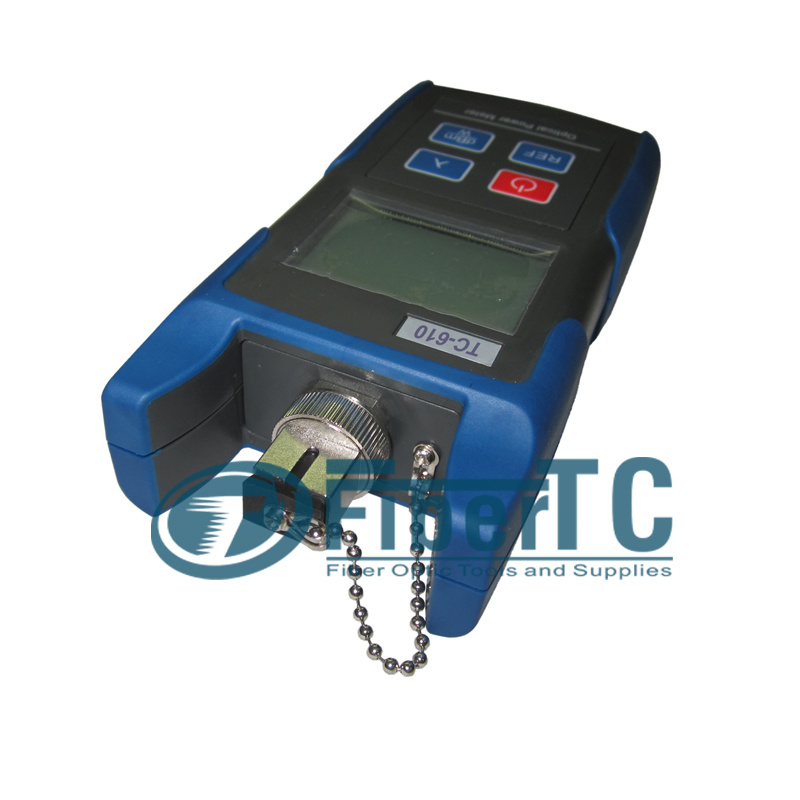

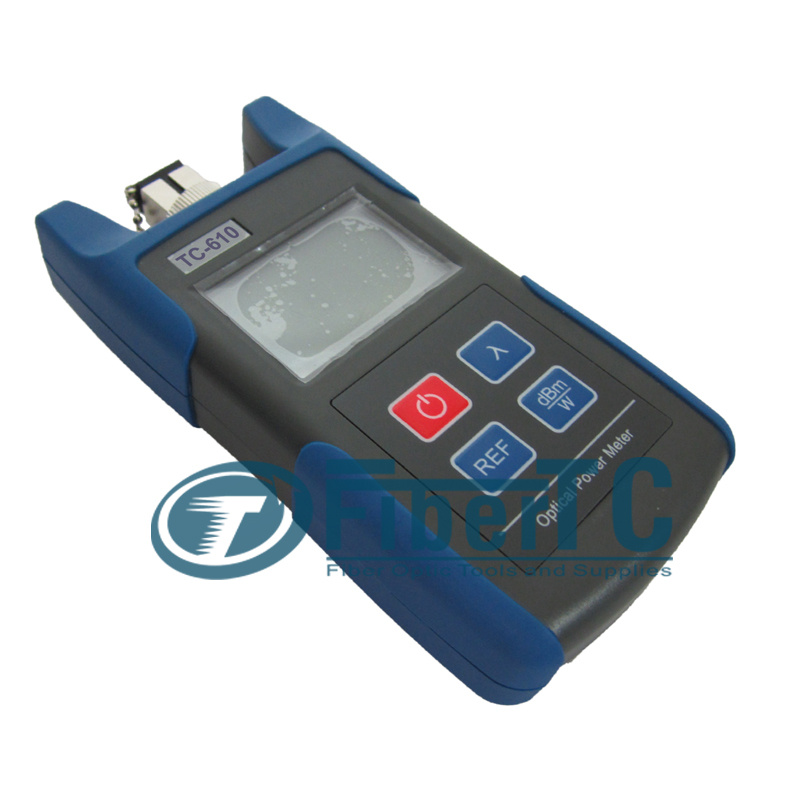

Optical Power Meter TC610
Feature:User self calibration functionComfortable LCD display and optional backlight LCD display supportsnight operationPower measurements in dBm or mw and insertion loss in dBLow battery consumption, more than 120 hours continual operation timefor three 1.5V alkaline batteriesOptional 10 minutes Auto-off function Application:Maintenance in TelecomMaintenance CATVTest Lab of optical fibersOther Fiber Optic Measurements Specification:Type | TC510A | TC510C |
Wavelength(nm) | (800nm to 1650nm ) |
Detector | InGaAs |
Measurement Range (dBm) | -70~+10 | -50~+26 |
Calibrated Wavelength(nm) | 850,1300,1310,1490,1550,1625(more calibrated wavelength can be optional) |
Resolution(dB) | Linear 0.1% or Non-linear 0.01dBm |
Connector | SC, FC/ Universal 2.5mm adaptor |
Power Supply | 3pcs AAA batteries |
Battery Operating Time | 240 h with 1.5V Battery(3) |
Operating Temperature(oC) | _ 10 ~ +50 |
Storage Temperature(oC) | _ 20 ~ +70 |
Working hours | >120 hours ( without backlight |
Relative Humidity | 90% (+30C ) |

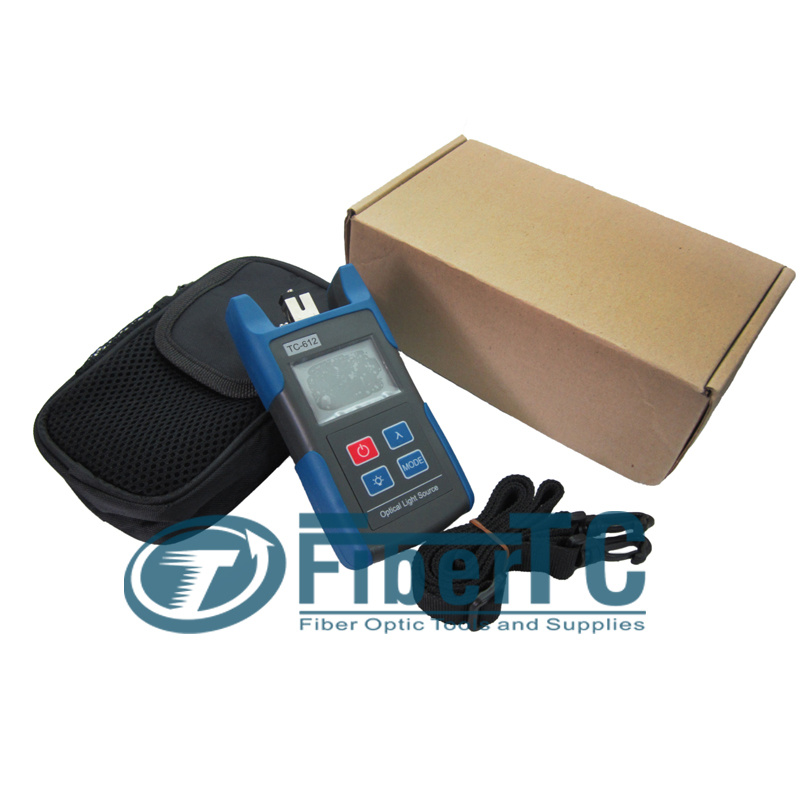

Optical Light Source TC612 Features:1.Compact size and decent appearance2.CW, 270Hz,1KHz,2KHz3.modulation at other wavelengths.4.High stability of the output powe5.Backlight LCD display supports night operation6.Large LCD, easy operation7.Alternative 10 minutes Auto-off function conserving battery life Applications:Maintenance in TelecomMaintenance CATVFiber Optic Lab TestingOther Fiber Optic Measurements Specification: Model | TC-512 Optical Light Source |
Emitter | FP-LD |
wavelength (nm) | 1310/1550nm(Other wavelength can be offered on request) |
Connector | FC |
Output power | >=-7dBm@1310/1550nm |
Output stability(dBm) | +-0.04 @20 Degree @15min |
Modulation | CW/270Hz/1KHz/2KHz@others |
Power | 3pcs AAA batteries(Not Included) |
Fiber type | SM |
Working hours(h) | 40 |
Working temperature(Degree) | -10~+50, 0 to 95%RH (no condensing) |
Storage temperature(Degree) | -20~+70, 0 to 95%RH (no condensing) |
Dimension(mm) | 130×63×29 |
Weight (g) | 160 |
