Prod Model: |
KP500B |
Model: |
Kp500b |
Substrate Material: |
Silicon |
Sensitive Cell Area: |
2.0 × 1.0mm*2 |
Substrate Thickness: |
0.5mm |
Operating Wavelength: |
7-14μm |
The Average Transmittance: |
> 75% |
Output Signal: |
> 2.5V |
Operating Voltage: |
2.2-15V |
Working Current: |
8.5-24μa |
Source Voltage: |
0.4-1.1V |
Material: |
Si+ Matel |
Product Description
PIR motion Sensor KP500B Pyroelectric Passive Infrared Sensor KP500BBrief Introduction:Original authentic KP500B
Sensitive cell area: 2.0 × 1.0mm2
Substrate material: silicon
Substrate thickness: 0.5mm
Operating Wavelength: 7-14μm
The average transmittance:> 75%
Output Signal:> 2.5V

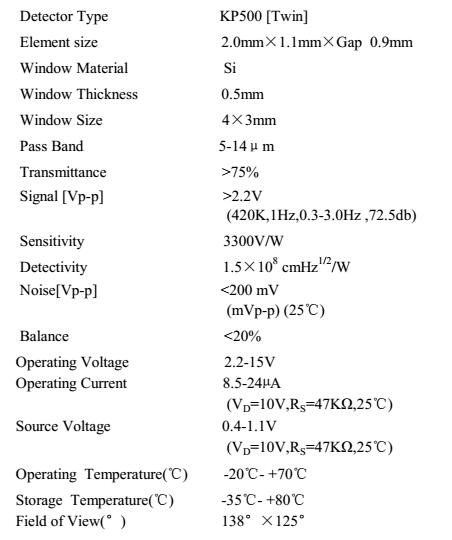

Specifaction![](/proimages/44f3j00JtgTMFClrkos/pir-motion-sensor-kp500b-pyroelectric-passive-infrared-sensor-kp500b.jpg)
Working Principle Pyroelectric infrared sensor would change charge when radiant energy changes. The effect can be used in detecting the change of infrared radiant.The sensors apply to human motion detector,passive infrared burglar alarm and automatic light switch. Based on the same theory, the pyroelectric infrared sensor applies to gas detection with infrared absorption.
Feature1. Low noise, high detection
2. Excellent common mode balance- dual elements
3. To-39, To-5 encapsulation
4. Apply to both narrow and broad band filters
5. Signal channel or double channels pattern
6. Dual pattern apply to burglar alarm
Typical Application 1. Passive infrared burglar alarm: strong anti-interference for strong with light and electromagnetic radiation
2. Human motion detector
3. Human motion detector of ceiling
4. Gas analysis
5. Non-contact infrared measurement

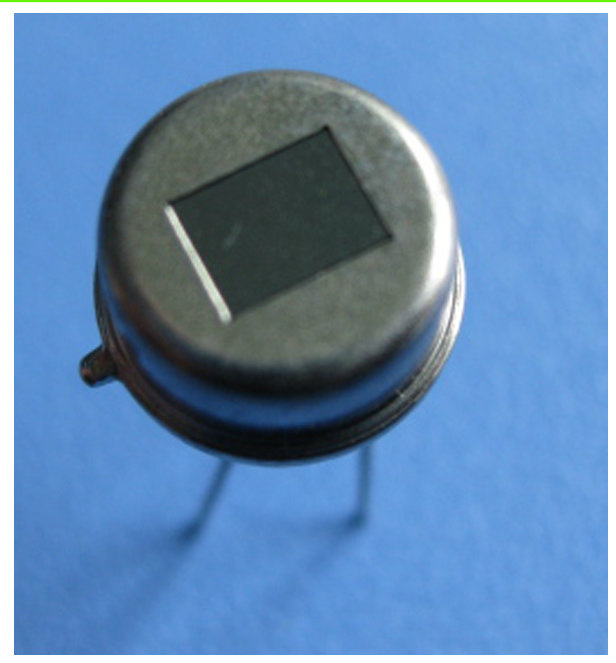

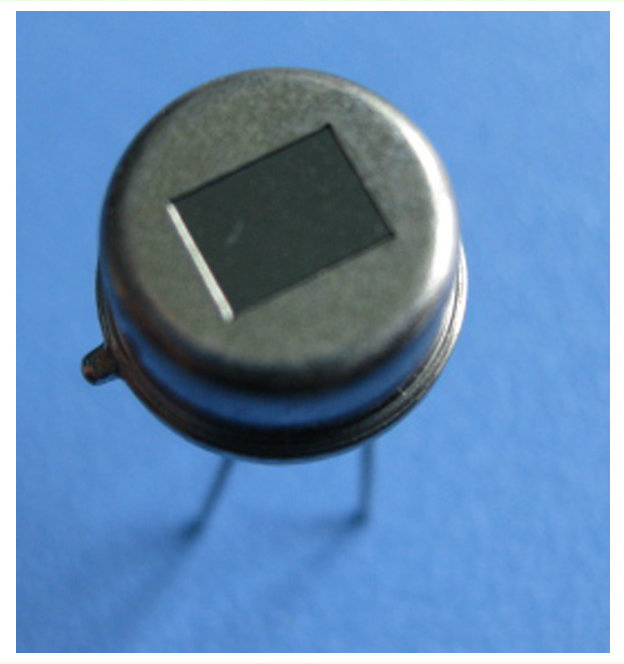

Picture Show

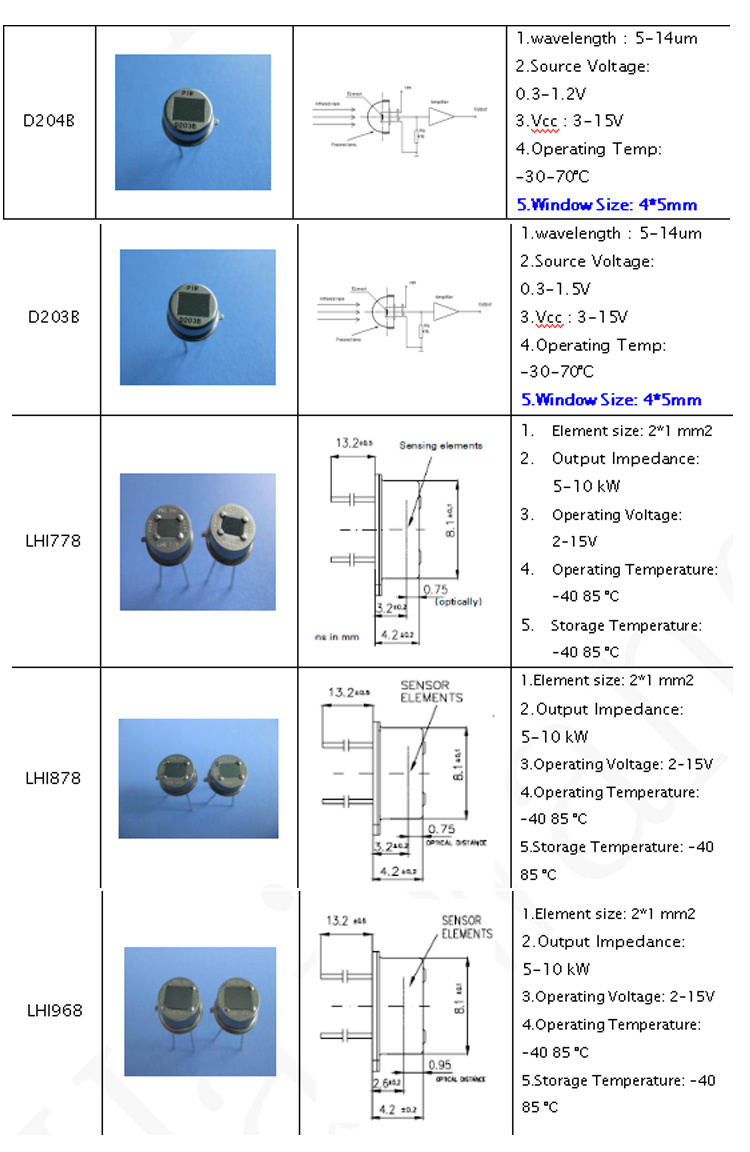

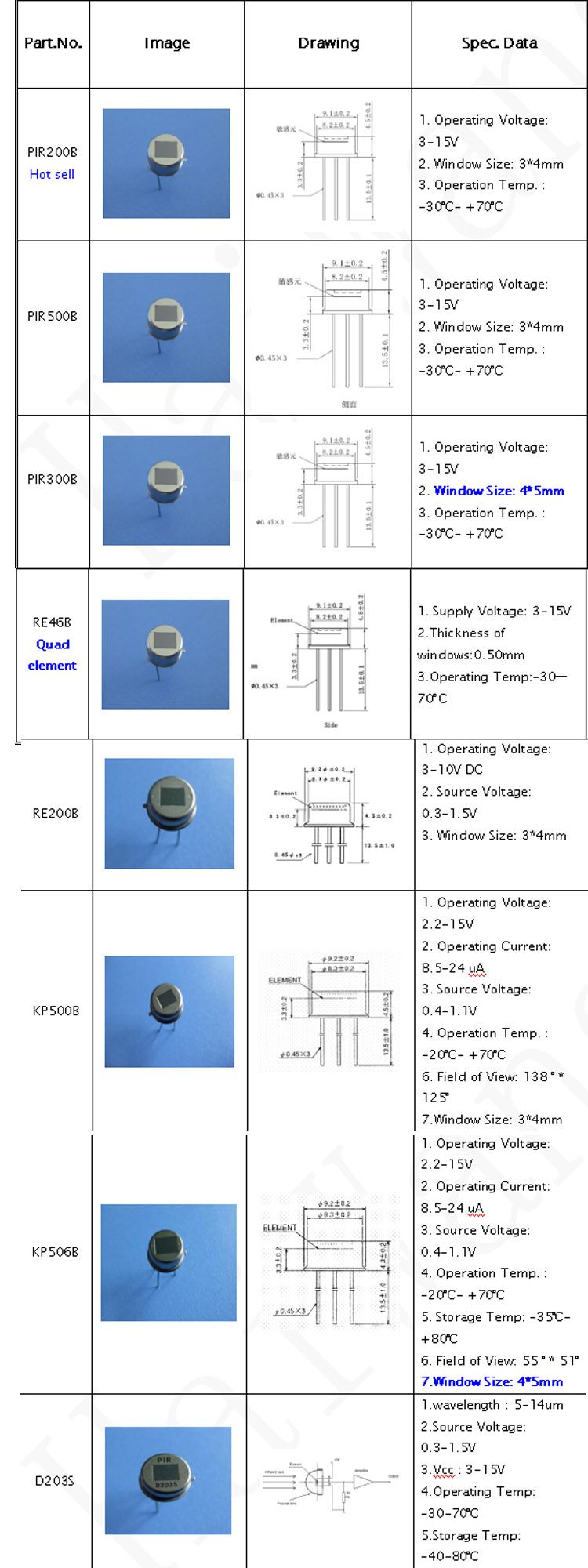

PIR Sensor Series for your choice:
![](/proimages/44f3j00QEuaCUvtIcoO/pir-motion-sensor-kp500b-pyroelectric-passive-infrared-sensor-kp500b.jpg)
![](/proimages/44f3j00tQzTMpeaVbqO/pir-motion-sensor-kp500b-pyroelectric-passive-infrared-sensor-kp500b.jpg)
