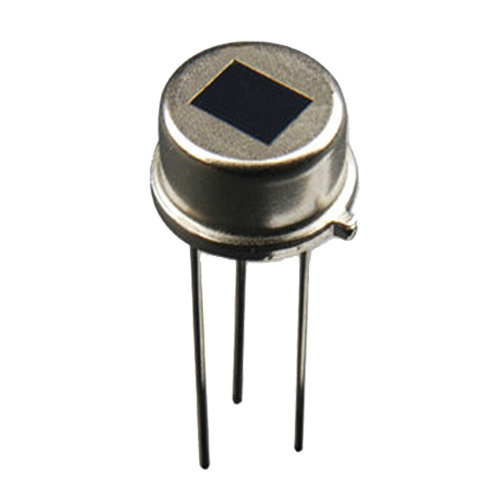

PIR-Based Motion Detectors with Operating Voltage 3-15V

Name: PIR-Based Motion Detectors with Operating Voltage 3-15V
Brand: all-electronics-online.com
SKU: 788906455
Availability: InStock
Rating: 4.6 (39 reviews)

Price:	US $ 0.49/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HW-PIR 300B
Model:	PIR300b
Encapsulation:	to-5
Element Size:	2.0mm 1.1mm0.9mm
Element Type:	Dual
Window Material:	Si
Window Size:	5*4mm
Pass Band:	7-14μm
Operating Temperature:	-30 Degree - +70degree
Sensitivity:	3300V/W
Operating Voltage:	3-15V
Material:	Si+ Matel

Product Description

PIR-based Motion Detectors with Operating Voltage 3-15V

Specifaction

Model	PIR500
Encapsulation	TO-5
Element Size/Type	2.0mm ×1.1mm ×Gap 0.9mm Dual
Window Material	Si
Window Thickness	0.5mm
Window Size	5x3mm
Pass Band	7-14μm
Transmittance	>75%
Signal [Vp-p]	>2.2V
Signal [Vp-p]	1. Blackbody temperature 420K( 147˚C) 2. Modulation frequency 1HZ 3. Magnification 72.5 dB
Sensitivity	3300V/W
Detectivity	1.5×108cmHz1/2/W
Noise(Vp-p)	<200mV
Noise(Vp-p)	(mVp-p) (25ºC)
Balance	<15%
Operating Voltage	3-15V
Operating Current	8.5-24μA
Operating Current	(VD=10V,Rs=47kΩ,25ºC)
Source Voltage	0.4-1.1V
Source Voltage	(VD=10V,Rs=47kΩ,25ºC)
Operating Temperature	-30ºC- +70ºC
Storage Temperature	-35ºC- +80ºC
Field of View	148°×139°

Working Principle

Pyroelectric infrared sensor would change charge when radiant energy changes. The effect can be used in detecting the change of infrared radiant.The sensors apply to human motion detector,passive infrared burglar alarm and automatic light switch. Based on the same theory, the pyroelectric infrared sensor applies to gas detection with infrared absorption.

Feature
1. Low noise, high detection
2. Excellent common mode balance- dual elements
3. To-39, To-5 encapsulation
4. Apply to both narrow and broad band filters
5. Signal channel or double channels pattern
6. Dual pattern apply to burglar alarm

Typical Application
1. Passive infrared burglar alarm: strong anti-interference for strong with light and electromagnetic radiation
2. Human motion detector
3. Human motion detector of ceiling
4. Gas analysis
5. Non-contact infrared measurement
