Prod Model: |
pH/ORP 8500A |
Color Screen: |
Yes |
Back Cover: |
Yes |
Pid Adjust: |
Yes |
Communication: |
Standard RS485 Protocol |
Signal: |
Double Channel 4~20mA |
Power Supply: |
DC24V |
Control: |
Triple Channles Semiconductor Photographic Switch |
Protection Level: |
IP65 |
Temperature Compensation: |
Ntc10K/PT1000 |
Measurement Range: |
pH 0~14, Orp (-1999~+1999)Mv |
Analysis Method: |
Chemical Analysis |
Heating Mode: |
No Need |
Type: |
pH Meter |
Physical Analysis Type: |
None |
Chemical Analysis Type: |
Probe |
Product Description
Hebei Create Instrumentation Technologies Co., Ltd. is a professional developer and manufacturer of electrochemical analysis instruments and transmitters. It specializes in the fields of water purification inline monitoring, process water integration management system, environmental protection and industry wastewater treatment process management systems. Hebei Create is the leading company of inline water quality analysis & dosing systems. Technical Features
Our production line covers :
- Reverse Osmosis Controller.
- Conductivity/ Resistivity Meters & Transmitters.
- pH /ORP Meters & Transmitters.
- Flow Meter and Sensors.
- Free Chlorine Systems.
-Turbidity
-EDI Module for the ultra pure water product
-Hardness
-Runxin valves
-Dosing pumps------

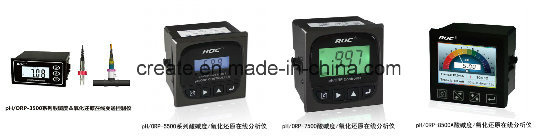

We have series pH/ORP meter , 3500series 5500series 7500series 8500series

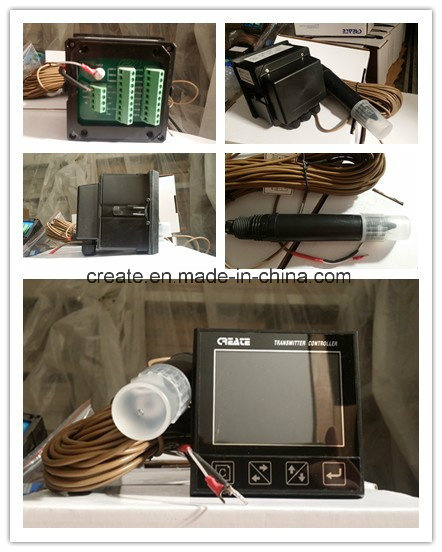

Display :
![](/proimages/44f3j00jQwaHVJgZAup/ph-transmitter-orp-transmitter-ph-tester-oxidation-reduction-potential-meter.jpg)
![](/proimages/44f3j00ZTdaDkmznJup/ph-transmitter-orp-transmitter-ph-tester-oxidation-reduction-potential-meter.jpg)

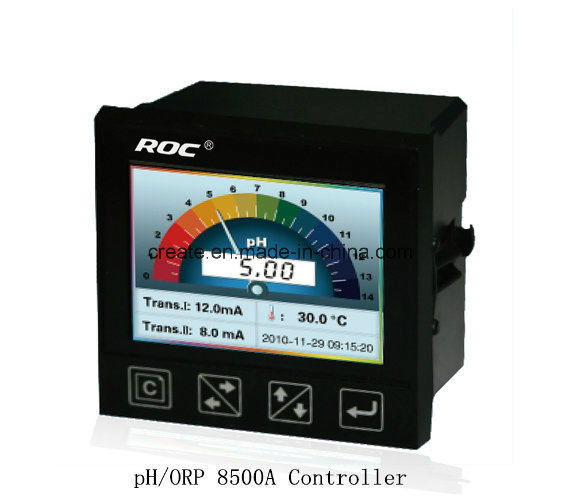

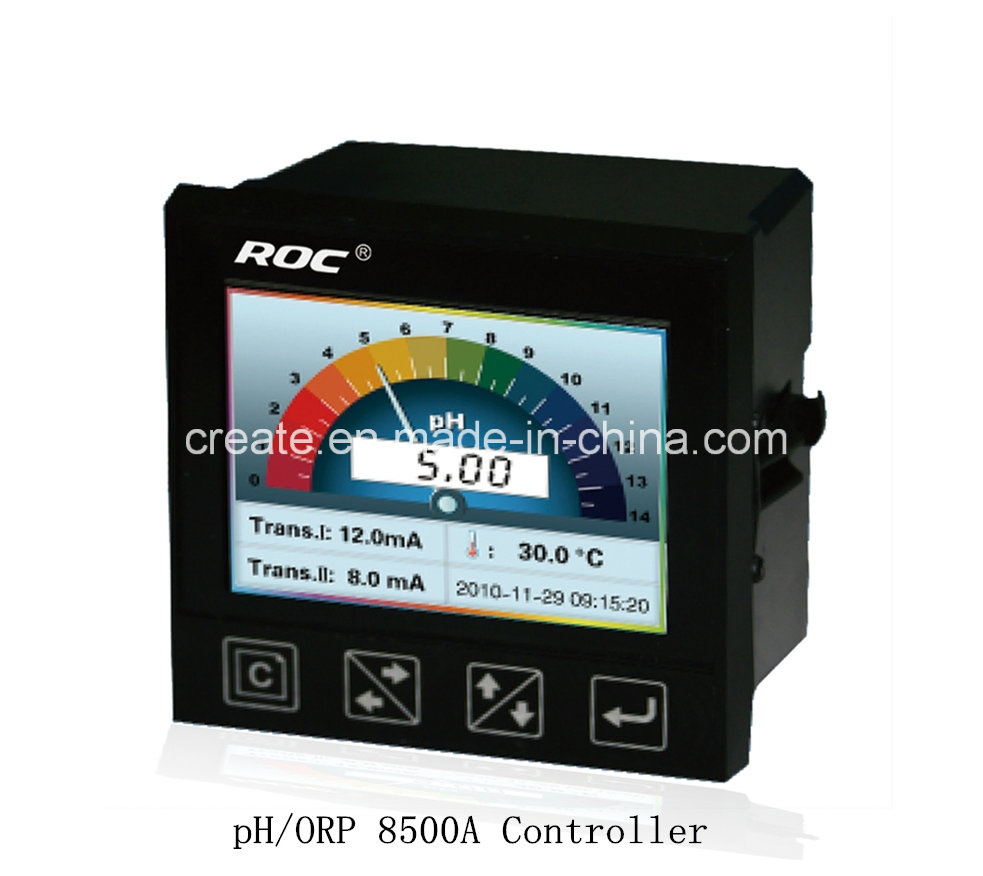

Details : Model No. | pH/ORP-8500A pH/ORP transmitting controller |
Measurement Parameter | Range | Resolution | Accuracy |
pH | 0.00 ~14.00 | 0.01 | ±0.1 |
ORP | (-1999 ~ +1999)mV | 0.1mV | ±5mV( Indicator ) |
Temperature | (0.0 ~ 100.0)ºC | 0.1 | ±0.5 |
Medium temperature compensation | (0.0~50.0)ºC |
Temperature components | NTC10k temperature components |
(4~20)mA Current output | Channels | Double channels |
Features | Isolated, adjustable, reversible, 4-20MA output, instruments/ transmitter mode. |
Loop resistance | 400Ω(max),DC 24V |
Resolution | ±0.1mA |
Control contact | Channels | Triple channels |
Contact | Photoelectric relay output |
Programmable | Programmable(temperature,pH/ORP) output |
Features | Could set pH/ORP/ temperature/ timing. NO/NC/pH PID selection |
Resistance load | 50mA(max)AC/DC 30V |
Data communication | RS485,modbus protocol |
Power supply | DC 24V±4V |
Consumption | <5.5W |
Working environment | Temperature:(0~50)ºC Relative Humidity :≤85%RH( non- condensing ) |
Storage | Temperature :(-20~60)ºC Relative Humidity:≤85%RH(non- condensing) |
Protection level | IP65(with rear cover) |
Outline dimension | 96mm ×96 mm ×94mm (H×W×D) |
Hole dimension | 91mm×91mm |
Installation | Panel. |
Order Directory
Complete Set:
Transmitting controller | 1pc(including one pair of fast installation clamp/back cover ) |
Instruction manual | 1pc |
Temperature sensor | 1 pc(optional) |
