| Prod Model: |
GWTA5212 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Exterior Material: |
PBT Resin UL Flame |
| Retardant Rating: |
94-V0 |
| Interior Insulation: |
Epoxy Encapsulated |
| Isolation Current: |
2500 Vrms for 1 Minute |
| Dielectric Resistance: |
1000 M Ohms @ 500 VDC |
| Surge Withstand: |
5000V |
| Rated Load Resistance: |
100k Ohms |
| Operating Temperature: |
-25 to +55c, -40 to |
| Application: |
Audio |
| Phase: |
Single |
| Coil: |
Amorphous Alloy Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Certification: |
Ce,SGS |
| Usage: |
Current, Power and Energy Monitoring D |
| Frequency Characteristics: |
50 to 400 Hz |
| Shape Of Coil: |
PBT Resin UL Flame |
| Brand: |
Grewin |

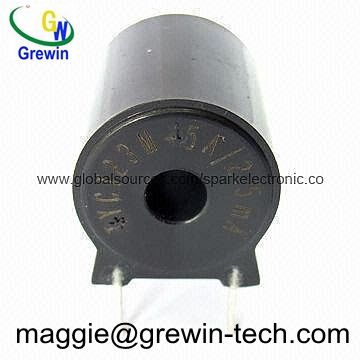

Product Description
The GREWIN TA series Miniature current transformers are designed for applications where AC current signals must be transformed accurately into a ower AC current or voltage signal app-ropriate for micro-processor based circuits.
The TAXX1X series of PCB Mounted Miniature current transformers are designed specifically for integration into products which require exceptionally accurate primary signal transformation while exposed to harsh environmental operating conditions. A new TA model can be designed and manufactured to meet the specific design challenges of the client's specific application.
output 0.333v 1v 3v 5v 7.07V wound primary current

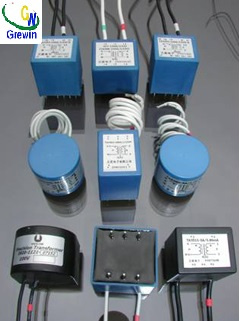

Our main product are miniature voltage transformer ,miniature current transformer ,instrument current transformer , clamp on ccurrent transformer ,split core current transformer ,three phase current transformer ,zero-flux current transformer
Wound Primary Mini Current Transformer(specifications)
|
| Exterior Material | PBT Resin UL flame retardant rating 94-V0 |
| Interior Insulation | Epoxy Encapsulated |
| Isolation Voltage | 2500 Vrms for 1 minute |
| Dielectric Resistance | 1000 M Ohms @ 500 Vdc |
| Surge Withstand | 5000V(1.2/50μs standard shock wave)optional |
| Rated Load Resistance | 100K Ohms |
| Operating Temperature | -25 to +55ºC,-40 to +85ºCoptional |
| Frequency | 50 to 400 Hz |
| Accuracy Class | defined in IEC 60044-1 Part 1 Voltage Transformers Class 0.1 0.2 |
| Certification | RoHS Compliant CE Approved |
| Wound Primary Mini Current Transformer(features) |
| Low cost |
| More than 50 standard sizes |
| Non-symmetrical mounting pattern |
| Toroidal silicon steel and Nickel Alloy cores available |
Wound Primary Mini Current Transformer(applications)
|
| For applications that require exceptional accuracy with minimal phase angle error |
| Applications would include Voltage,power and energy monitoring devices |

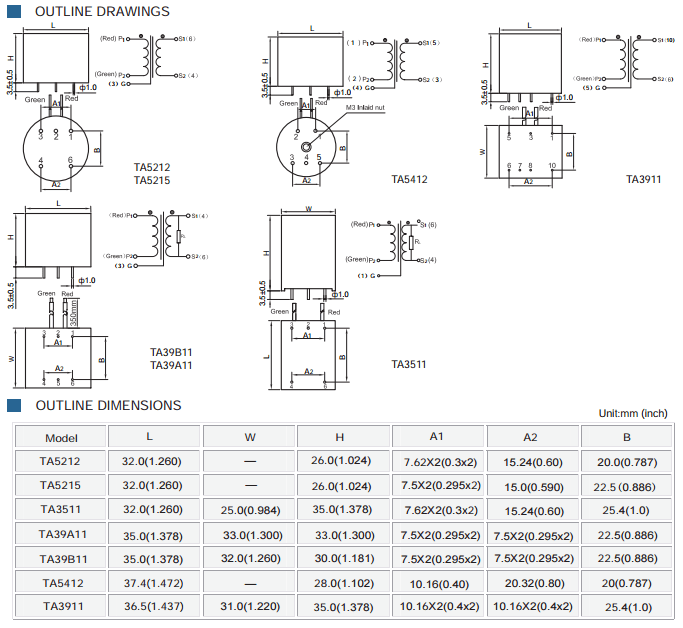

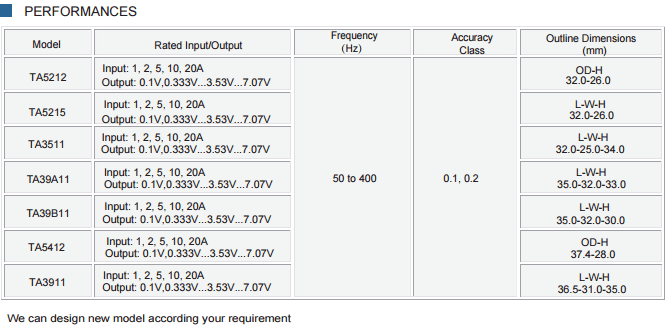

| Part Number | Rated Current | Frequency
(Hz) | Accuracy
Class | Outline
Dimensions (mm) |
| GWTA5212 | Input:1,2,5,10,20A
Output:0.333V--7.07V
(Optional) | 50 to 400 | 0.1,0.2 | OD-H
32.0-26.0 |
| GWTA5215 | Input:1,2,5,10,20A
Output:0.333V--7.07V
(Optional) | 50 to 400 | 0.1,0.2 | OD-H
32.0-26.0 |
| GWTA3511 | Input:1,2,5,10,20A
Output:0.333V--7.07V
(Optional) | 50 to 400 | 0.1,0.2 | L-W-H
32.0-25.0-34.0 |
| GWTA39A11 | Input:1,2,5,10,20A
Output:0.333V--7.07V
(Optional) | 50 to 400 | 0.1,0.2 | L-W-H
35.0-32.0-32.0 |
| GWTA39B11 | Input:1,2,5,10,20A
Output:0.333V--7.07V
(Optional) | 50 to 400 | 0.1,0.2 | L-W-H
35.0-32.0-30.0 |
| GWTA5412 | Input:1,2,5,10,20A
Output:0.333V--7.07V
(Optional) | 50 to 400 | 0.1,0.2 | OD-H
37.4-28.0 |
| GWTA3911 | Input:1,2,5,10,20A
Output:0.333V--7.07V
(Optional) | 50 to 400 | 0.1,0.2 | L-W-H
36.5-31.0-35.0 |
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3. 20 days around delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon
import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. We accept Western Union and T/T
2. 30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after
geting full payment.
Warranty:
1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Our factory
Tianjin grewin technology co., ltd . is a high-tech company which integrates production, design, R&D, and sale.We-CHIPSEN-specialize in developing
many kinds of electronic components. Include electronic transformers,

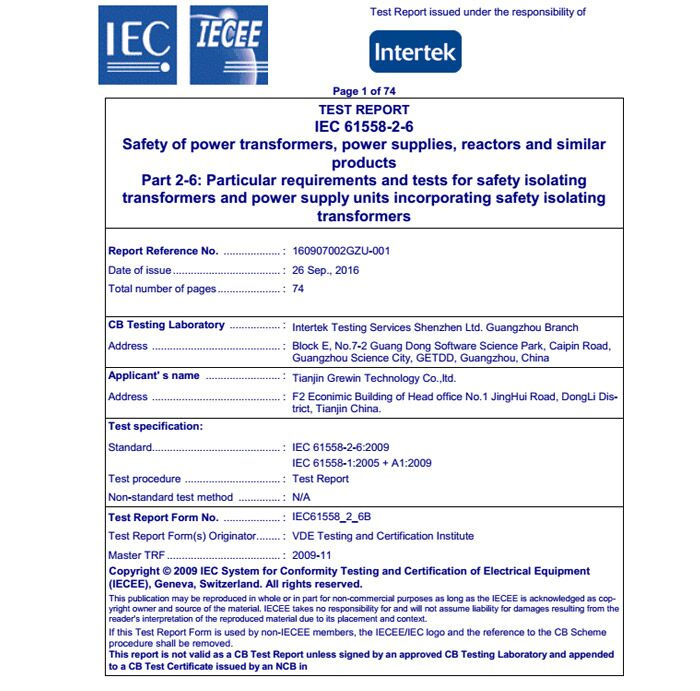

We are ISO 9001 and ISO 14001 certified and our products come with UL, SGS
marks.
Grewin current transformer has been specially designed to facilitate their installation in new or already existing net works.They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs.
WHY CHOOSE US?
Quality and honest first!
A. Flexible service for diffierent transformers with high efficiency perfor mance.
B. Over 40 years experience of transformer designing and producing.
C. 100% test of every single product we produce from incoming material checking.

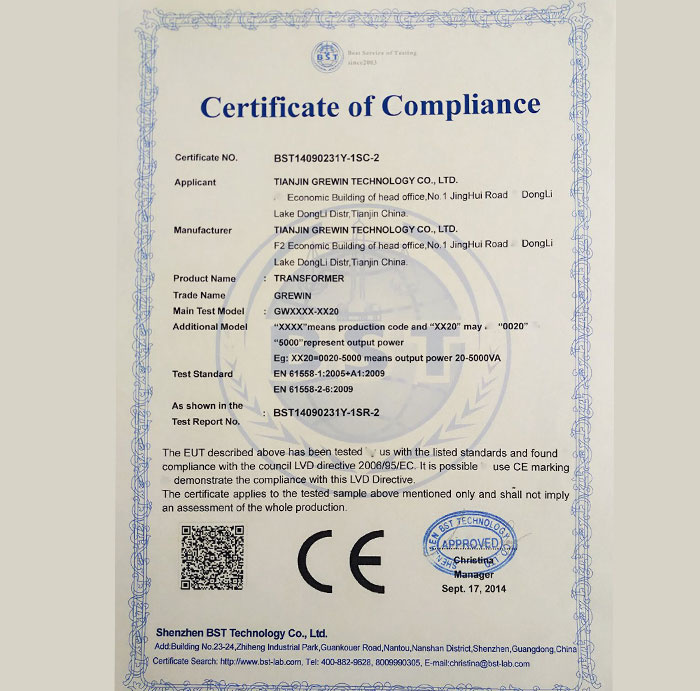

D. UL, CE, ISO9001:2008
