OIML and Ntep Load Cell Zemic H8c

Name: OIML and Ntep Load Cell Zemic H8c
Brand: all-electronics-online.com
SKU: 770693785
Availability: InStock
Rating: 4.3 (64 reviews)

Price:	US $ 22/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZEMIC H8C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
China Best Load Cell:	No 1 Load Cell
Pattern:	Shear Beam

Product Description

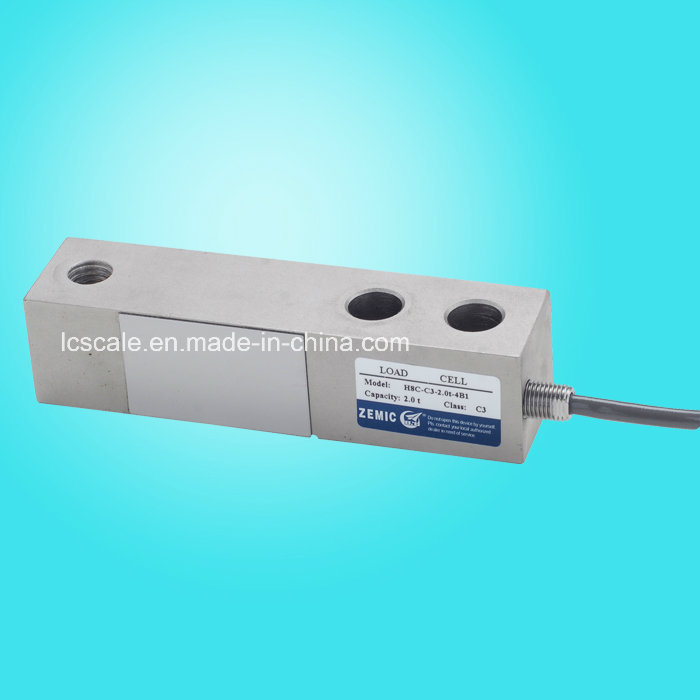

ZEMIC NTEP and OIML approval shear beam load cell H8C

1.H8C load cells are available in the capacities 1Klb to 20Klb and 500kg to 10t.
2.Alloy steel, sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environment.
3.Single shear beam, easy for installation, suitable for electronic platform scales, hopper scales and other electronic weighing devices.
4.Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.

Features

1.Capacity:1Klb to 20Klb and 0.5t to 10t.
2.High accuracy.
3.Alloy steel construction.
4.Low profile.
5.With OIML approval.
6.With NTEP approval.

Specifications

Capacity	t	0. 5/1/1.5/2/3/5/10
Accuracy class		C1	C2	C3	A5M	B10M
Maximum number of verification intervals	n max	1000	2000	3000	5000	10000
Minimum load cell verification interval	v min	Emax/3000	Emax/5000	Emax/10000	Emax/15000	Emax/10000
Combined error	(%FS)	≤±0.050	≤± 0.030	≤±0.020	≤±0.026	≤±0.050
Creep	(%FS/30min)	≤±0.038	≤± 0.024	≤±0.016	≤±0.017	≤±0.040
Temperature effect on sensitivity	(%FS/10ºC)	≤±0.028	≤± 0.017	≤±0.011	≤±0.013	≤±0.040
Temperature effect on zero	(%FS/10ºC)	≤±0.047	≤± 0.023	≤±0.015	≤±0.014	≤±0.020
Output sensitivity	(mv/v)	2.0±0.004
Input resistance	(Ω)	350±3.5
Output resistance	(Ω)	351±2
Insulation resistance	(MΩ)	≥ 5000(50VDC)
Zero balance	(%FS)	1.5
Temperature, compensated	(ºC)	-10~+40
Temperature,allowed	(ºC)	-35~+65
Excitation, Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
