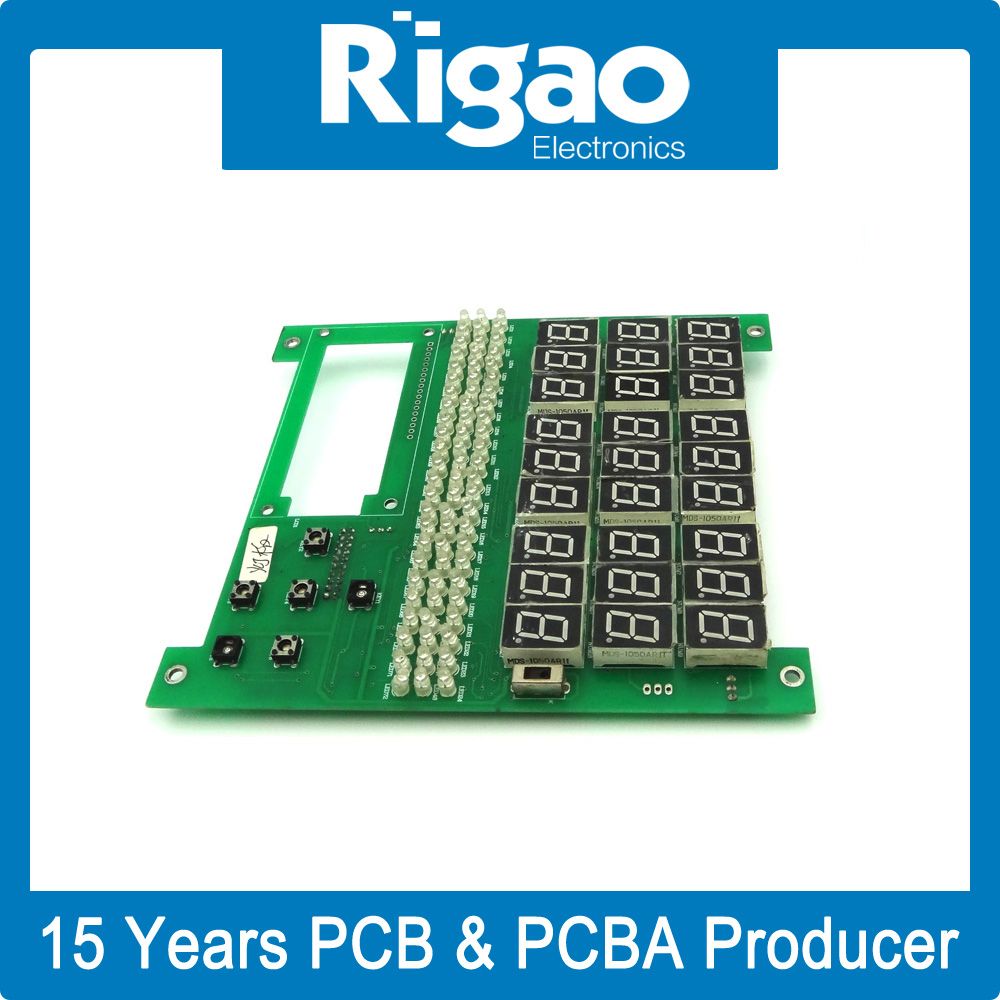

OEM & ODM PCB SMT Assembly PCB

Prod Model:	pcb smt assembly
Assembly:	SMD
Size:	88mm*60mm
Copper Thickness:	1oz
Biz Type:	Factory
Prototype:	Yes
Surface Treatment:	HASL
Dielectric Constant:	2.1-10
Anti Peel-Strength:	59n/Mil
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Double-Layer
Base Material:	FR-4
Certification:	SGS
Customized:	Customized
Condition:	New

Product Description

OEM & ODM pcb smt assembly pcb

Welcome to Rigao-pcba
Rigao-pcba electronic Co.,Ltd  is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now Rigao-pcba has become a rapidly growing worldwide provider of solutions in three principal areas - Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
We have years of experiences in Electronic board field. From prototype to production and scheduled deliveries we are able to guarantee a complete service with technical backup, offering a cost advantage and continuity of supply. Our service include offering


Company's Culture:
The Core Values: Integrity, Responsibility, Close attention
Our core competitiveness: Quality, Technology, Speed, Cost, Flexibility

Quality Policy:
High quality, High efficiency; Promise keeping and Sustainable PCB produce and pcb assembly services development.


Capability of pcb

1	Layer	1-22 layer
2	Material	FR4, CEM1, Aluminium Base, Cooper Base, High frequency material
		Thick copper foil,94-V0 (HB), PI Material, Roger, High TG:SL S1000-2,ITEQ:IT180.
3	Board thickness	0.2mm-7mm
4	Max.finished board side	610mm*1200mm
5	Min.drilled hole size	0.25mm
6	Min.line width	0.075mm(3mil)
7	Min.line spaceing	0.075mm(3mil)
8	Surface finish/treatment	HASL,OSP,Immersion tin,Immersion Gold
		Immersion Silver/Gold Finger ,Gold Plating, Selective OSP Immersion Gold
9	Copper thickness	0.5-4.0oz
10	Solder mask color	green/black/white/red/blue/yellow
11	Inner packing	Vacuum packing,Plastic bag
12	Outer packing	Standard carton packing
13	Hole tolerance	PTH:±0.076,NTPH:±0.05
14	Profiling Punching	Routing,V-CUT,Beveling
15	Assembly Service	Providing OEM service to all sorts of printed circuit board assembly

Capability of pcb smt assembly:

Type of PCB Assembly	SMT, Thru-hole,COB
SMT	Position accuracy:20 um
	Components size:0.4×0.2mm(01005) _130×79mm,Flip-CHIP,QFP,BGA,POP
	Max. component height::25mm
	Max. PCB size:680×500mm
	Min. PCB size:no limited
	PCB thickness:0.3 to 7mm
Wave Solder	Max. PCB width:450mm
	Min. PCB width: no limited
	Component height:Top 120mm/Bot 15mm
Sweat-Solder	Metal type :part, whole, inlay, sidestep
	Metal material:Copper , Aluminum
	Surface Finish:plating Au, plating sliver , plating Sn
	Air bladder rate:less than20%
Supporting:	Software burning and Function Testing
Testing	X-RAY Inspection & AOI Test, ICT,Probe flying,burn-in,function test,temperature cycling
Lead Time	12days-15days
File Fomat	Bill of Materials,Gerber Files, Pick-N-Place File (XYRS),PCB,Altium, EDA etc

Our services Range:
1.Rigid PCB (up to 22 Layers),
  Flexible PCB/FPC (1~6 Layers),
  Rigid-Flex (2~10 Layers),
  Aluminum-based PCB (1~4 Layers),
  High Density Interconnection/HDI PCB,
  High frequency material PCB
2. Assembly Services
3. Components purchasing
4.pcb assembly


Application of OEM & ODM pcb smt assembly pcb:

It can be used in some electronics function control prducts or come ture some industrial function . Actually all the boards that we want to manufacture is based on your design,your gerber file ,your bom list, or your requirement about the funcation of the comsumer or other electronics ,or the diagram schematic will be needed for us to design a perfect simple yellow electronic board for your comsumer electronics products .

   Q&A:
What products Rigao can supply?
     Rigao supplies PCB,PCBA,FPC and assembly.
What kind of material Rigao can produce with?
     Rigao offers CEM1,CEM3,FR4,Aluminum substrate,etc.
What kind of surface finish Rigao can make?
     Rigao can make HASL lead/lead free,gold finishing.

Our Mission:
Credit on Customers/Focus on Quality/Rely on Management/Keen on Improvement

Requested information for PCB Assembly quotation and producation:
1. Gerber file & BOM list if possible
2. PCBA Samples
3. Testing procedure & Testing fixtures
4. Order Quantity
5. ODM Capability:
Till now we have successfully developed Analogue high performance FM transmitter, Wide frequency
stereo transmission circuit, SSB communication system, High performance wave receiving antenna,
Digital Frequency Hopping Radio Set, Digital Addressing communication system, etc. Moreover.

Any needs and questiones ,please feel free to contact me!!!
