Nsq Model Current Transformer for Meter

Name: Nsq Model Current Transformer for Meter
Brand: all-electronics-online.com
SKU: 690249415
Availability: InStock
Rating: 4.4 (116 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NSQ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

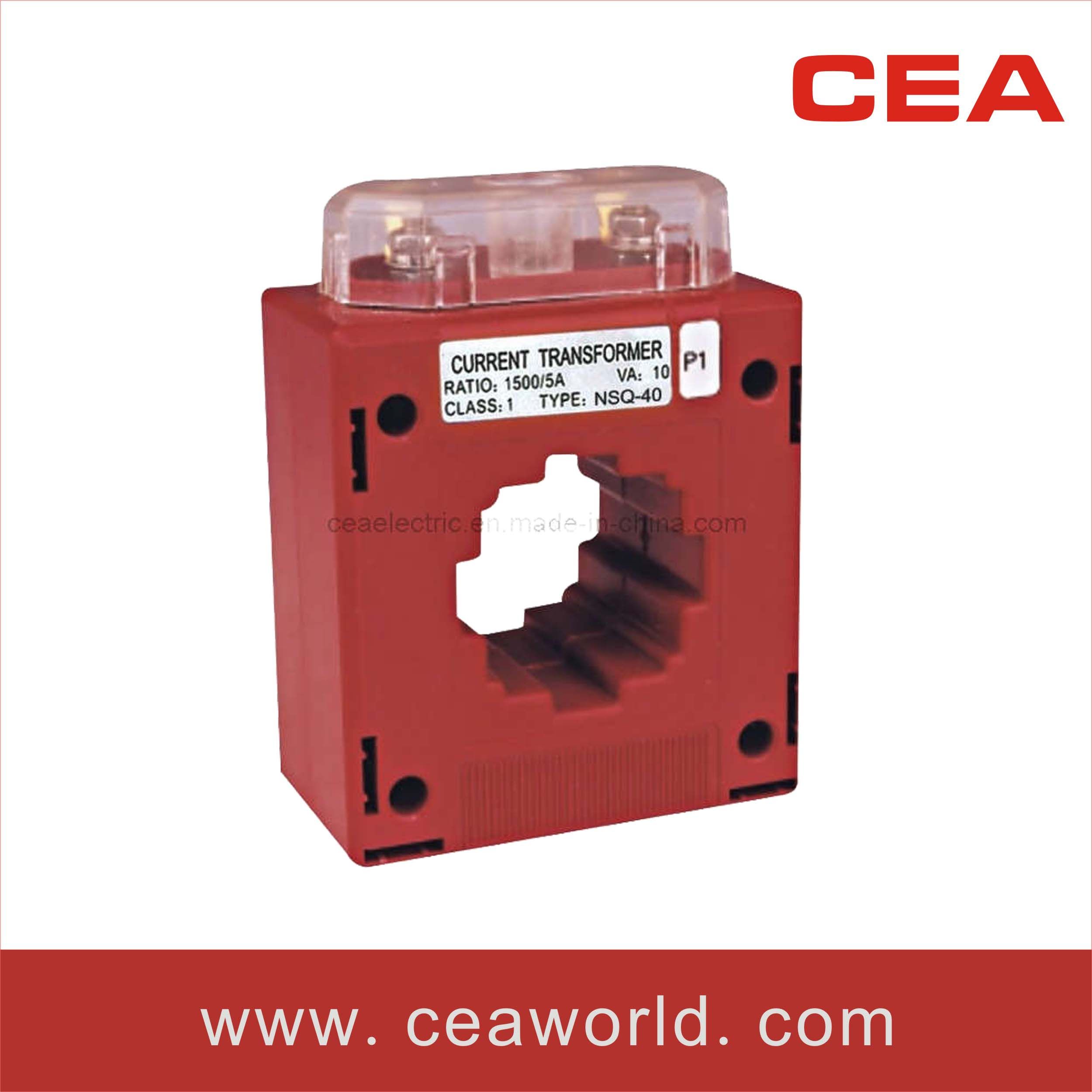

Nsq Model Current Transformer for Meter

1. NSQ/AMC series current transformer
2. ISO, CE certification
3. Good quality and low price
4. Two years warranty

Primary current	30A-3000A
Secondary current	5A, 1A
Standard approval	BS7626, IEC44-1
Maximum voltage	0.66KV
Frequency	50-60Hz
Rated load	2.5VA, 15VA
Class	0.5, 1.0, 3.0
Short-time thermal current	Ith=60 X Ih
Rated security coefficient	FS<5

Technical data:

1 The current transformers are made according to IEC-185 standard
2 Class of accuracy: 1.0(see table)
3 Rated voltage: 660V(see table)
4 Rated sec: Current 5A(or 1A on request)
5 Security factor: FS5
6 Working temperature range: -20° C-+45° C
7 ABS plastic case, toally enclosed, built-in cover, and several ampere outputs at secondary side iron plate for fixing metal housing-2pieces-1, iron bar and screw for fixing copper bar-3 pieces

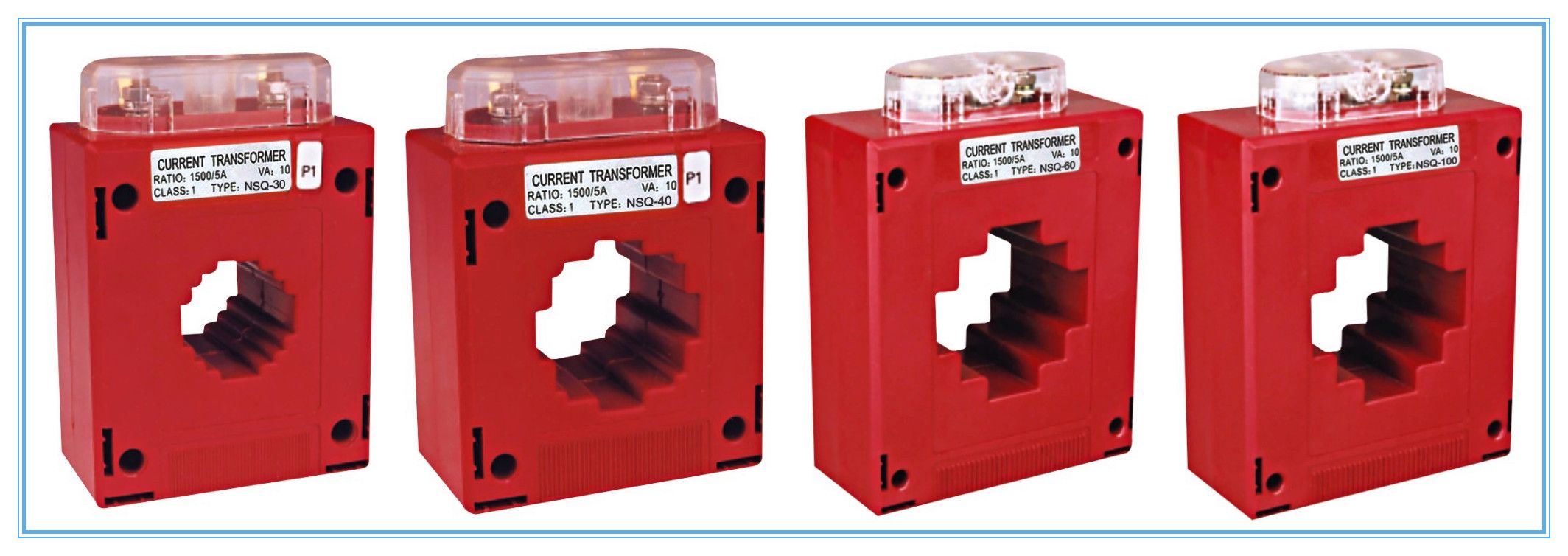

Model	Primary/ Secondary	Busbar Hole Dimension	Rated Burden(VA)	Class	Rated Voltage	Rated Frequency
NSQ-30	30/5A 300/5A	30X10mm	2.5-5	0.5/1.0	0.72	50/60Hz
NSQ-35	50/5A 400/5A	35X10mm	5	0.5/1.0	0.72	50/60Hz
NSQ-40	100/5A 600/5A	40X10mm	10	0.5/1.0	0.72	50/60Hz
NSQ-60	600/5A 1600/5A	60X10mm	15	0.5/1.0	0.72	50/60Hz
NSQ-100	800/5A 3000/5A	100X10mm	15	0.5/1.0	0.72	50/60Hz

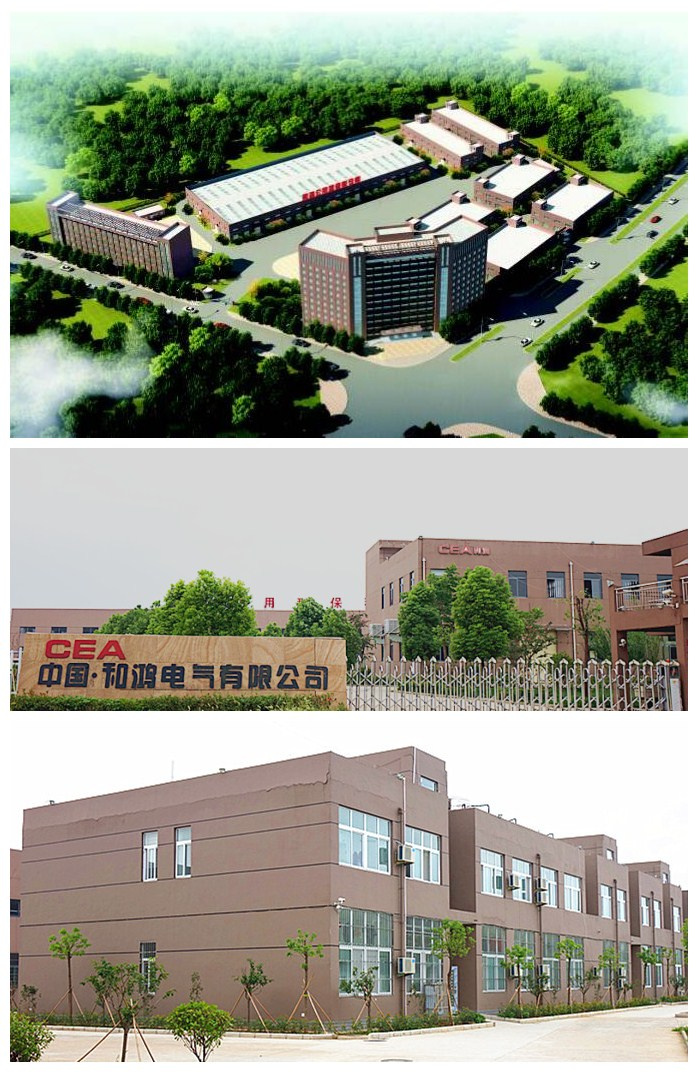

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

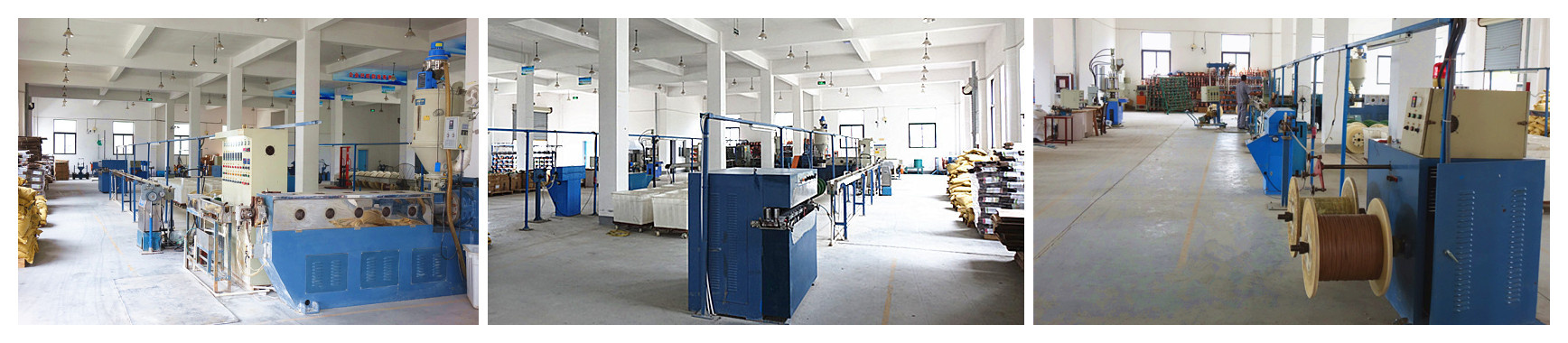

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
