| Prod Model: |
42HS34-1334AC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angle: |
1.8 Degree |
| Max.Axial Force: |
10n |
| Max.Radial Force: |
28n |
| Waires: |
Four |
| Type: |
Electromechanical |
| Number Of Stator: |
Two-Phase |
| Number Of Poles: |
Other |
| Brand: |
Jk |
| Application: |
Other |
| Excitation Mode: |
Hybrid |
| Operate Mode: |
Other |
| Certification: |
CE and RoHS |
Product Description

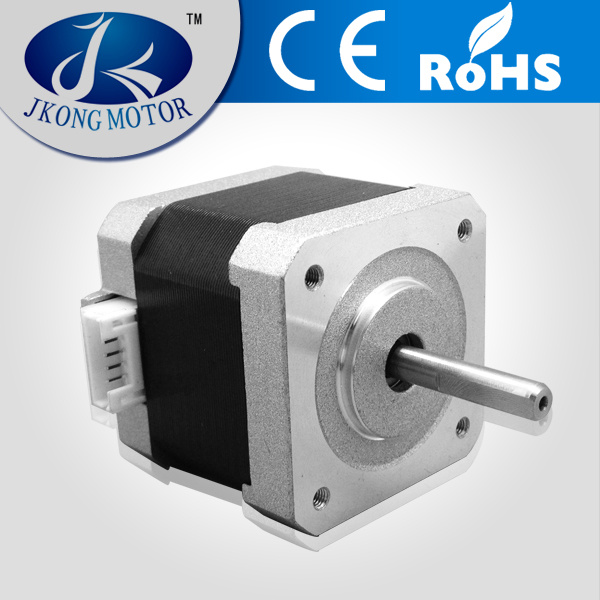

1.8 degree 2 Phase hybrid stepper motor NEMA17/ nema17 stepping motor for 3d printer /2.8v bipolar stepper motor/ 42 HS34-1334AC stepper motor /Single Flat 31oz-in 40mm 1.33A 4-Lead with 1 meter ,ROHS CE ISO 3D Printer
General Specification
Step Angle:1.8°
Temperature Rise:80°Cmax
Ambient Temperature:-20°C~+50°C
Insulation Resistance:100MΩ Min.,500VDC
Dielectric Strength:500VAC for 1s 3mA
Shaft Radial Play:0.02Max.(450g-load)
Shaft Axial Play:0.08Max.(450g-load)
Max.radial force:28N(20mm from the flange)
Max.axial force:10N
Description:
1.8 degree Size 42mm Hybrid stepper motor. 3D Printer stepper motor
42mm size stepper motor , NEMA17 stepping motor,
Small stepping motors, 2 phase 42mm stepper motor, Stepper motor 42mm size
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version
Applications
Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,
advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.
Matching Stepper motor Driver: JK0220 , JK0230

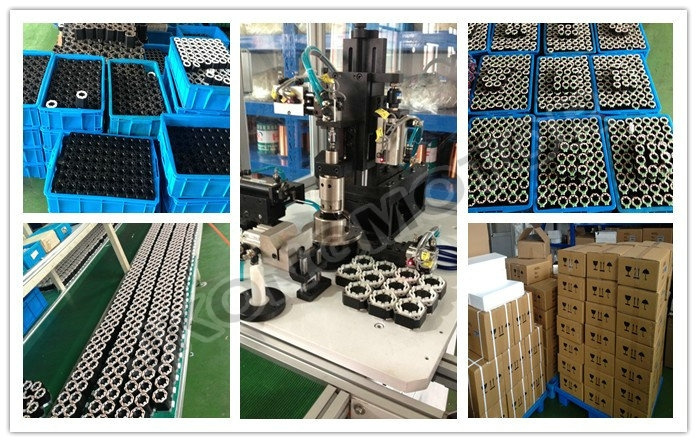

About our manufacturer and our products:
WHY YOU CHOOSE US:
We are a professional manufacturer for Stepper motor , Stepper driver, BLDC motor and DC motor. we can supply OEM service.
Our products all with CE and ROHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co.,Ltd
Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best products to clients at competitive price.
High quality .
Competitive price ,
Good Packing ,
Fast Delivery .
Knight service
Advanced technology
Believe that we will do our best!
|
Model No. |
Step Angle |
Motor Length |
Current
/Phase |
Resistance
/Phase |
Inductance
/Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
|
( °) |
(L)mm |
A |
Ω |
mH |
kg.cm |
No. |
g.cm |
g.cm² |
Kg |
|
JK42HS34-1334AC |
1.8 |
34 |
1.33 |
2.1 |
2.5 |
2.6 |
4 |
120 |
34 |
0.22 |

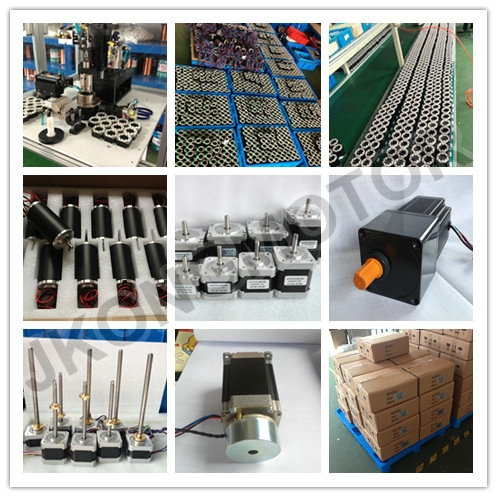

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.
We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.
We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
Competotive price and high quality. Hope can cooperate with you.
