Multifunctional Functions Car GPS Tracker

Multifunctional Functions Car GPS Tracker
Price: US $ 62-70/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: VT1000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Black
Check Car Door Status: Yes
Is Customized: Yes
Speeding Alarm: Yes
GPS Chip: Ublox7

Product Description

Multifunctional Functions Car GPS Tracker

Products Overview
VT1000 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; Supporting camera (location&driving information log on picture); Bidirectional communication; Support max 64GB SD card for storing data and pictures; 4 A/D connectors for multi fuel sensor monitoring; Support unique active RFID for automatic anti-theft and driver identification; Support OTA(upgrade over the air) for upgrading new firmware by GPRS if needed; With harsh braking&acceleration alarm and accident alarm; And many useful functions and extensibility for fleet management and vehicle security purposes.



Application
*Vehicle Real Time Tracking
*Car Security/Anti-Hijack *Comprehensive fleet management


Specification

Technical Parameters:
Power Supply+9V - +35V / 1.5A
Backup Battery850mAh
Dimension104mm x 62mm x 24mm
Installation Dimension104mm x 83mm x 24mm
Weight150g
Operating temperature-20° to 65° C
Humidity5% to 95% Non-condensing
FrequencyGSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz
GPS Modulelatest GPS SIRF-Star III chipset
GPS Sensitivity-158Db
GPS FrequencyL1, 1575.42 MHz
C/A Code1.023 MHz chip rate
Channels20 channel all-in-view tracking
Position Accuracy10 meters, 2D RMS
Velocity Accuracy0.1 m/s
Time Accuracy1 us synchronized to GPS time
Default datumWGS-84
Reacquisition0.1 sec., average
Hot start1 sec., average
Warm start38 sec., average
Cold start42 sec., average
Altitude Limit18,000 meters (60,000 feet) max.
Velocity Limit515 meters/second (1000 knots) max.
LED2 LED lights to show GPS/GSM working status.
Flash Memory4MB

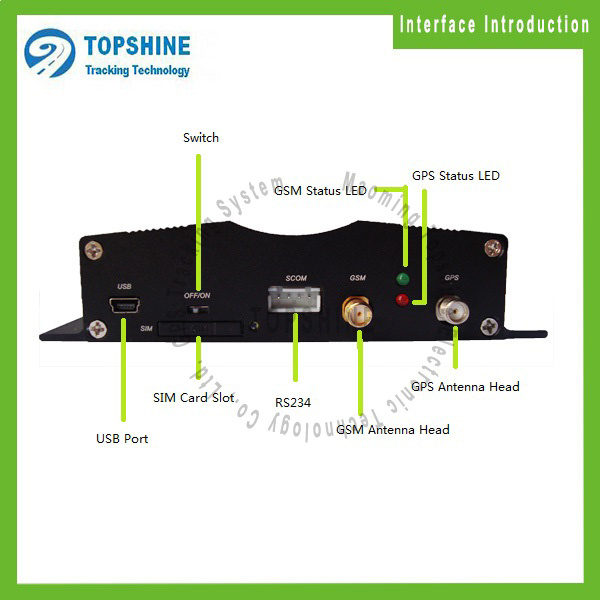

Interface5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs.



Packing Measures:
NeutralDimension (mm)Weight (KG)Capacity
Box225x160x550.651 set
Carton470x340x3101420 sets


Features

* Tracking by SMS/GPRS (TCP/UDP)
* OTA Function
* Tracking by time/distance interval
* Two way communication (Listen & Speak)
* Real time tracking via the web-platform
* Oil leaking/Refuel Alarm
* Get position location via call/SMS
* Accident alarm
* Engine on/off detection
* Remote Engine cut off
* Built-in backup battery
* Support max 64G SD card store
* Wiretapping/remote listening
* ARM9 high speed microcontroller
* Photo with location & driving information log function
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even no GPRS signal
* Can equip with RFID kit for driver identification and auto Arm/Disarm functions
(movement/towed alert, ignition alert, auto cut off engine etc)
* I/O: 5 Inputs, 5 Outputs, 4 Analog Input
* Analog input for Temperature & Fuel sensor detecting/monitoring, support max 4 fuel sensor manage
* More Alarm functions:
   * Over speed alert
   * Geo-fence alert
   * Power failure/low power alert
  * SOS Panic button, SOS alert
  * Harsh braking and harsh acceleration alarm
  * Suddenly acceleration/brake alert

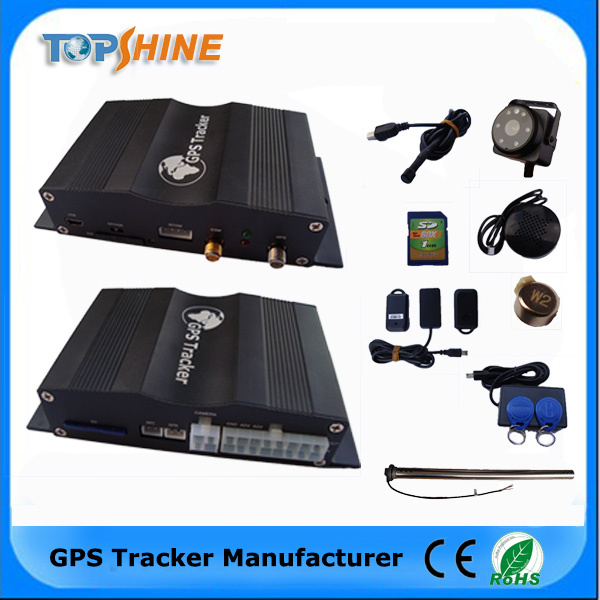

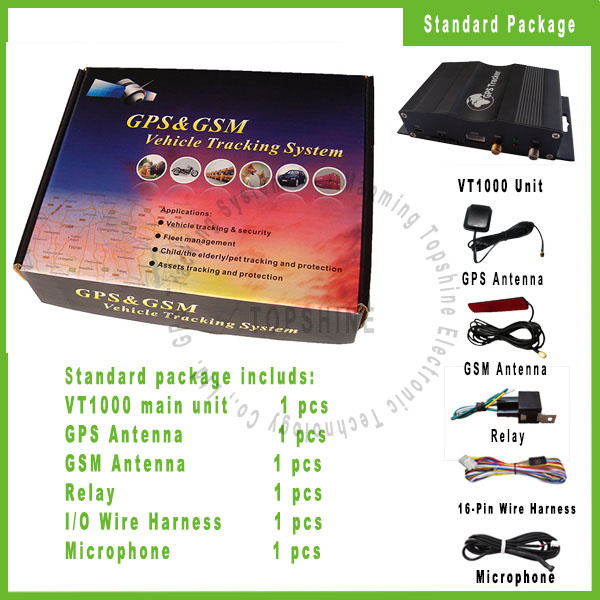

Package and Accessories

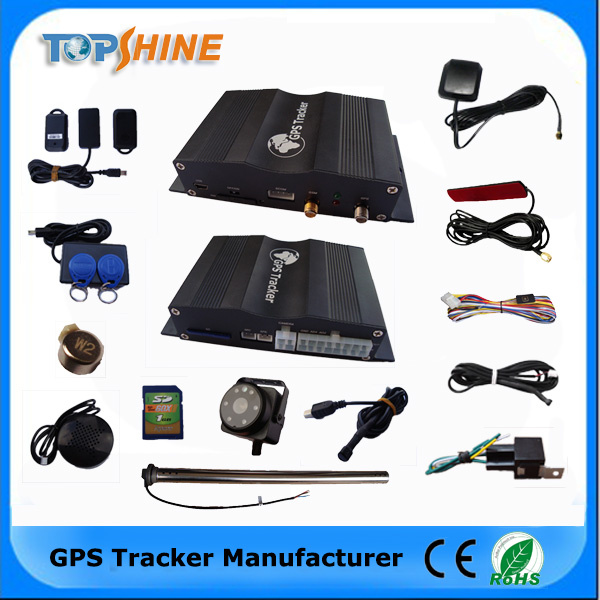

Optional Accessories

Camera
Fuel sensor
Temperature sensor
Passive RFID kit
SD card
Crash sensor
Smart phone reader
OBDII
Door sensor
Alcohol Sensor
Speed Limiter


Welcome to test our free tracking software:



Tracking platform site: www.track-car.com
Username: hongkong
Password: 123

Tracking platform site: www.tstrack.net
Username: test1
Password: 123



What can we do for you:

* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.


Payment & Shipment:

Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
