Guangzhou Amorphous Electronic Technology Co., Ltd. >> Mini Precision Current Transformers CT09-5 Series

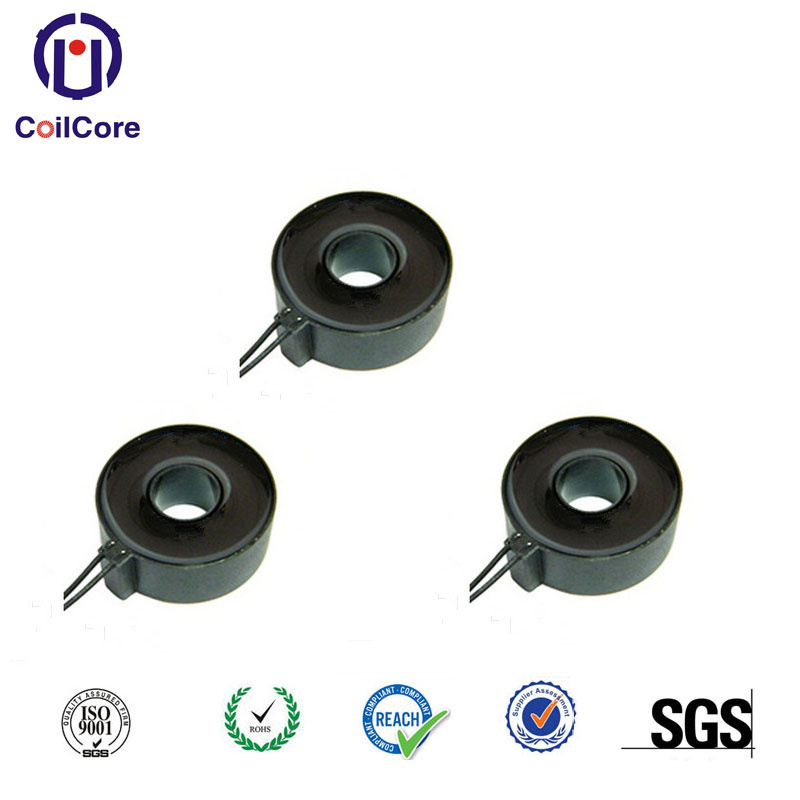

Mini Precision Current Transformers CT09-5 Series

Mini Precision Current Transformers CT09-5 Series
Price: US $ 1/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: CT09-5 Series
High Saturation Magnetic Induction: Low Core Loss
Application: Lighting
Type: Current Transformer
Phase: Single and Three

Product Description

Mini Precision Current Transformers CT09-5 Series
UL Approved No: E318452

CE Approved No: E0608080

Frequency Range:50 /60Hz

Operating Temperature Range: -40ºC to +85ºC

StorageTemperatureRange:-45ºCto+90ºC

Rated System Voltage: 380V AC.

Conforms to  IEC 60044-1.

Isolated Voltage : 4000V AC./1MA /Imin.

Terminals: PC board or lead wire assembly.

Produces parts are in accordance with UL requirements.

Fully RoHS Compliant.



Part NumberElectrical Characteristic
  Accuracy Class (%)Turns Ratio (Np:Ns)RL (Ω)
CT095250 PL5A / 2mA0.21: 2500100
CT095250 AL5A / 2mA0.21: 2500100
CT095200 PL5A / 2.5mA0.51: 2000100
CT095200 AL5A / 2.5mA0.51: 2000100
CT095150 PL5A / 3.33mA0.51: 1500100
CT095150 AL5A / 3.33mA0.51: 1500100
CT095100 PL10A / 10mA0.51: 100010
CT095100 AL10A / 10mA0.51: 100010
CT095100 SL10A / 10mA51: 1000100
CT095250 SL20A / 8mA51: 2500100
CT095200 SL20A / 10mA51: 2000100
