Mini Precision Current Transformers CT05-2 Series

Mini Precision Current Transformers CT05-2 Series
Price: US $ 1/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: CT05-2 Series
High Saturation Magnetic Induction: Low Core Loss
Application: Lighting
Type: Current Transformer
Phase: Single and Three

Product Description

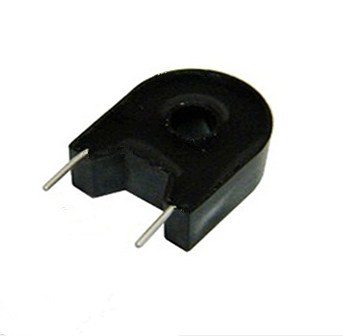

Mini Precision Current Transformers CT05-2 Series
UL Approved No: E318452

CE Approved No: E0608080

Frequency Range:50 /60Hz

Operating Temperature Range: -40ºC to +85ºC

StorageTemperatureRange:-45ºCto+90ºC

Rated System Voltage: 380V AC.

Conforms to  IEC 60044-1.

Isolated Voltage : 4000V AC./1MA /Imin.

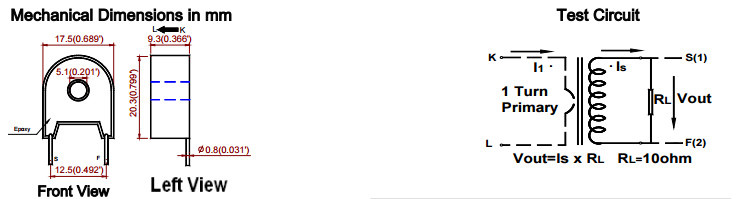

Terminals: PC board or lead wire assembly.

Produces parts are in accordance with UL requirements.

Fully RoHS Compliant.

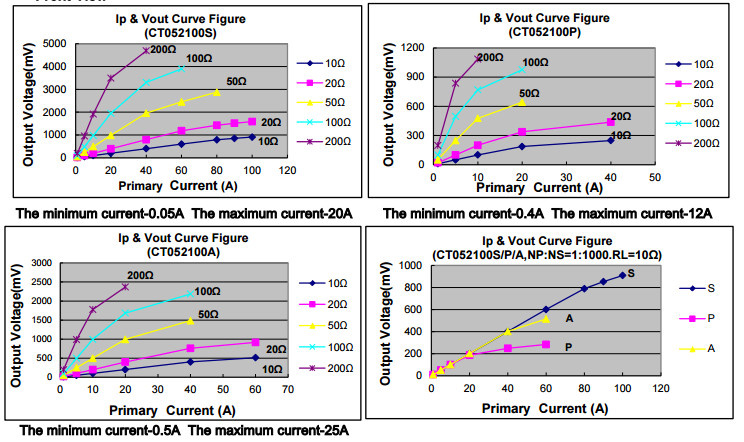

Part NumberElectrical Characteristic
 Current  RatioAccuracy Class (%)Turns Ratio (Np:Ns)RL (Ω)
CT052080 PP5A / 6.25mA11: 80010
CT052050 SP6A / 12mA51: 50010
CT052100 AP10A / 10mA0.51: 100010
CT052100 SP10A / 10mA31: 100010
CT052080 SP10A / 12.5mA31: 80010


Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:

1. Common Mode Filter Chokes

2. Current Transformer

3. Differential Mode Chokes

4. Automotive Chokes (for car audio)

5. Magnetic Amplifier

6. PFC Chokes

7. ISDN Splitter

8. GFCI (Ground-Fault Circuit Interrupters)

9. ELCB (Earth Leakage Circuit Breaker)

10. ALCI(Appliance Leakage-Current Interrupters)

11. Core and Current Transformer for energy meters (Watt hour -meters )

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.

Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
