Mini Digital Multimeter Test Transistor Digital Multimeter (SD_33C)

Mini Digital Multimeter Test Transistor Digital Multimeter (SD_33C)
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 100/Piece
Pay Type: T/T
Prod Model: SD_33C
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation: Portable
Display Mode: Digital
Theory: Electronic Meter
Power Source: AC and DC

Product Description

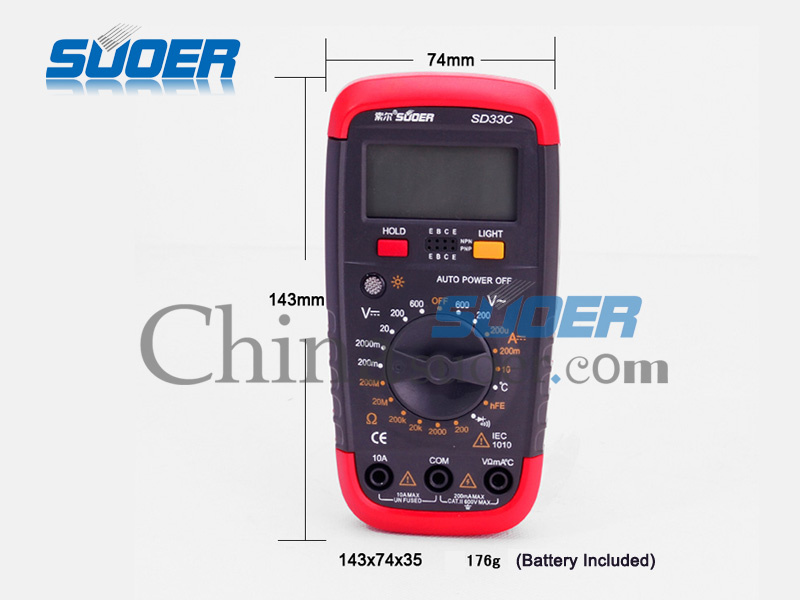

Mini digital multimeter Test transistor digital multimeter (SD_33C)

Quick Details

Model Number: SD_33C
Measuring Current Range: 1000VDC-700VAC
Measuring Voltage Range: 0 ~1000V
Measuring Resistance Range: 200Ω~200MΩ
Measuring Capacitance Range: 1pF~200uF
Measuring Inductance Range: 40Hz~400Hz
Operating Temperature: 0-40°C Dimensions: 31.5*91*189mm

Mini digital multimeter Test transistor digital multimeter
Mini digital multimeter
1.Min. Order:10 Pieces
2.High quality
3.Size:31.5*91*189mm
4.CE ROHS certificate

Model: SD_33C

Maximun voltage between :1000VDC or 700VAC

Terminals and earth ground

Fuse protection: F 200mA/250V

Power:9V battery, NEDA 1604 or 6F22

Display: LCD, 1999 counts, updates 2-3/sec.

Measuring method: Dual-slope integration A/D converter

Over range Indication: Only figure "1" on the display

Poladty indition: "_" displayed for negative polarity

Operating Environment: 0 to 40°C

Storage temperature: -10°C to 50°C

Low battery indication: appears on the display

Size: 31.5*91*189mm

Weight: Approx 280g.

Suoer manufactory production

Accressories:

Operator's instruction manual
Set of test leads
Gift box
9 volt battery. NEAD 1604 6F22 006P type
Holster(option)
"K" type ther mocouple(XB-9206B,XB-9208B)
