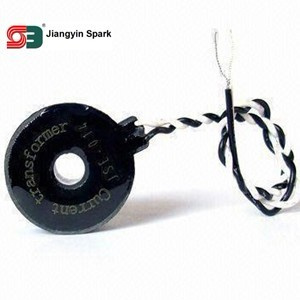

Mini Current Transformer/CT for Electronic Watt-Hour Meter

Name: Mini Current Transformer/CT for Electronic Watt-Hour Meter
Brand: all-electronics-online.com
SKU: 729789685
Availability: InStock
Rating: 4.7 (113 reviews)

Price:	US $ 0.2-0.5/Piece
Trade Terms:	FOB
Min Order:	5/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Application:	Electronic
Type:	Current Transformer
Phase:	Single

Product Description

PCB current transformer

Product Description
Features:
Small size
High accuracy
Wide linear range
Good consistency
PCB mounted or lead terminal
50 standard sizes are available
Toroidal nanocrystalline and nickel alloy cores are available
Specifications:
Exterior materials: PBT resin and UL flame
Retardant rating: 94-V0
Interior insulation: Epoxy encapsulated
Isolation current: 2, 500Vrms for 1 minute
Dielectric resistance: 1, 000MΩ at 500V DC
Surge withstand voltage: 5, 000V (1.2/50μ s standard shock wave)
Operating temperature: -25 to +55 and -40 to +85° C optional
Frequency: 50 to 400Hz
Accuracy class: IEC 60044-1
Applications:
Minimal phase angle error watt-hour meter
Electric energy measurement device
RoHS Directive-compliant

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
