| Prod Model: |
TKM-MS-01 |
| Type: |
Convex |
| Application: |
Medical |
| Material: |
F200+3m Adhesive+Pet |
| Contact Type: |
Metal Dome |
| Brand: |
Tkm |
| Certification: |
RoHS |
Product Description
Membrane keypad Switch With Leds 3M Adhesive For Medical Instrument
Basic Info.
Name:Medical membrane switch
Colortrans:red/yellow/blue/white/black or as per request
Feature:dust-proof and waterproof
Certificate:RoHS/ISO 9001/SGS/etc
Custom Made:OEM/customize
Material:F200 + PET + DP Adhesive + 3M Adhesive
Adhesive:3M467 & 3M468 or no adhesive or customer required
Operation Temperature:-40ºC~70ºC
Insulation Resistance:<100MΩ,250V DC
Contact resistance:<1Ω /cm
operating voltage:≤ 50VDC
working current:25- 100mA,0-30V DC
reliability/service life:>1 million times
Operating humidity:when40°C,<98%RH
spring time:≤ 5ms
substrate voltage:2000V DC
Tail flexiblility:any angle within 180 degree

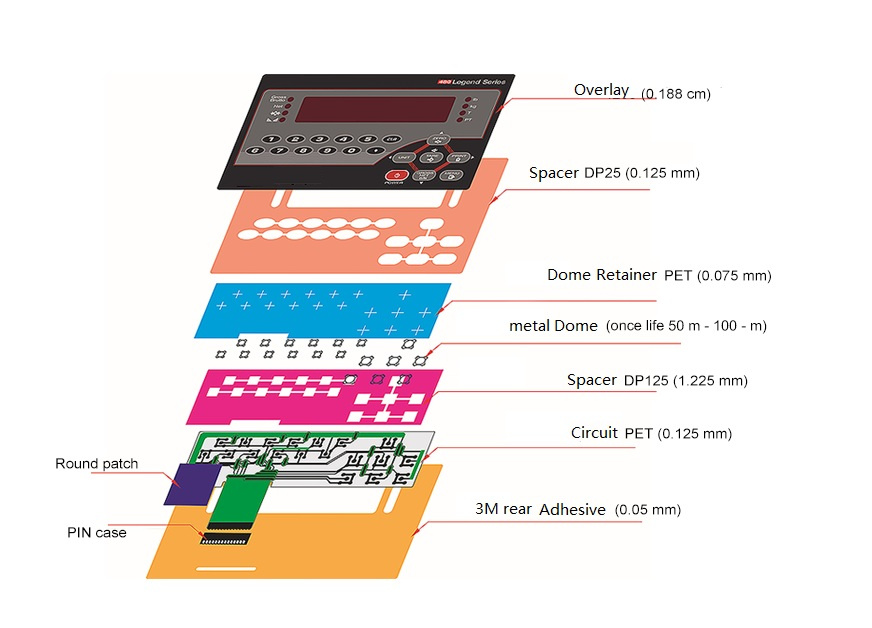

Switch travel:Flat Type 0.05-0.3mm tactile type:0.3-1.5mmProduct Structure

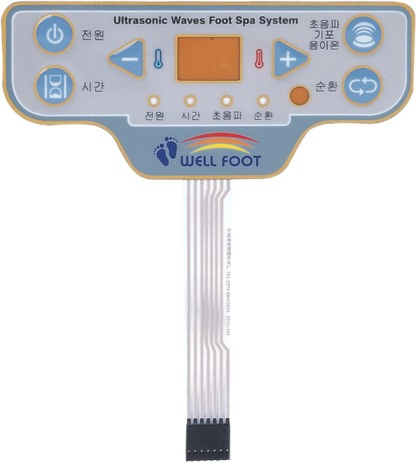

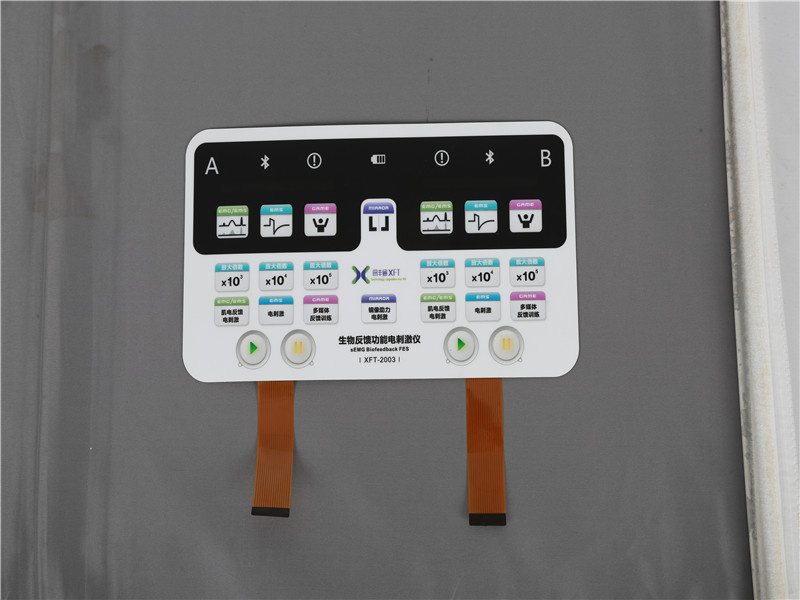

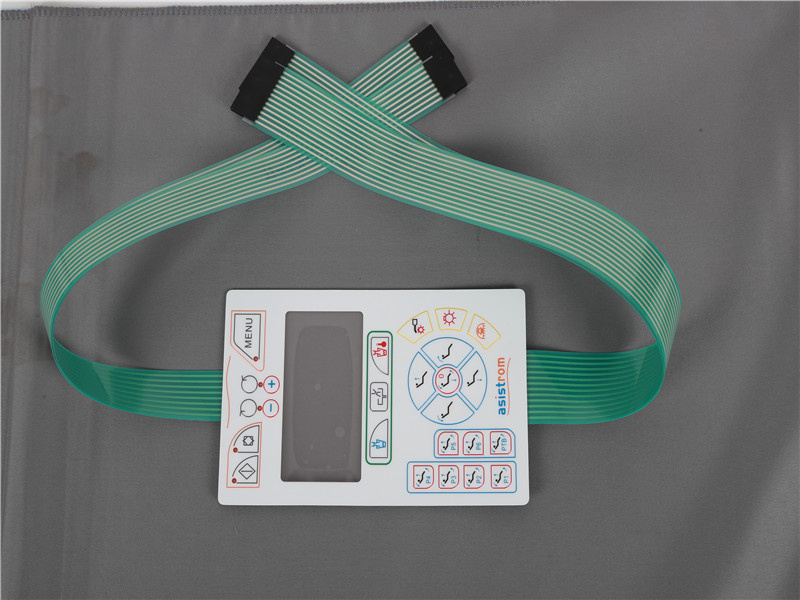

Product Show
Applications:1.Medical Equipment
2.Telecommunications apparatus
3.Telephone systems
4.Household appliances
5.Security systems
6.Point of sale apparatus
7.Industrial controls
8.Access control systems.....
Competitive Advantage: 1.Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2.Panel can wash, good protection of durable color,characters,logos and other panel contents without injury.
3.Small size,light weight ,thin thickness, good tactility, abrasion resistant, installation and connection convenience.
| Brank | TKM-MS | Tyoe | Medical Membrane Switch |
| Color | As per request | Operating Voltage | ≤50 ( V ) |
| Rated Current | 0-30V DC | Contact resistance | 0.5-1 ( Ω) |
| Insulation Resistance | ≤50 ( Ω) | Substrate voltage | 1500VDC |
| Dome springback time | ≤5 ( ms ) | Operating Temperature | -20_60 ( C° ) |
| Key operation force | 15-750g | High life time | >1million times |
Company profileTKM(Dongguan)Membrane Products Technology Ltd.belongs to Foundation Industries Manufacturing Ltd.,which founded in 1997 and specialize in manufacturing and distributing of
membrane switches, digital touch screen panels, silicone rubber keypads & parts and the other relative products & metal nameplates for 20 years. We are an ISO9001:2008 certified
company, we believe quality is vital for the growth of an enterprise.Our business relationships from global market over 120 customers, some famous customers such as PHILIPS,

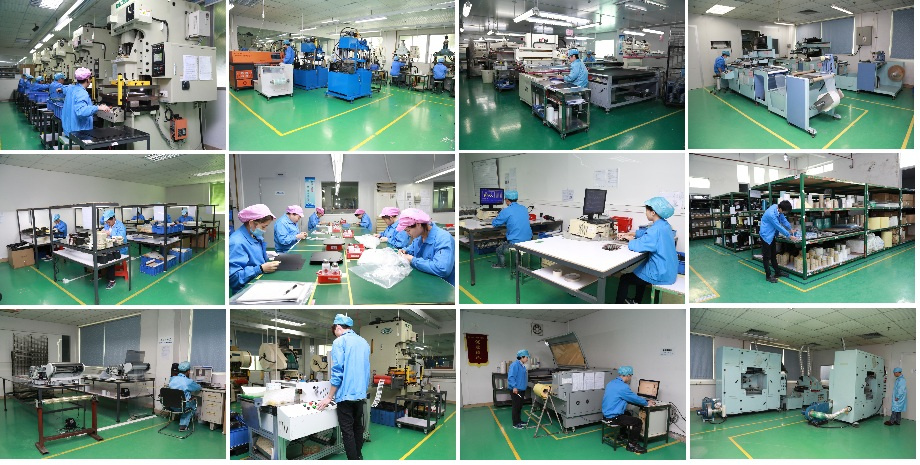

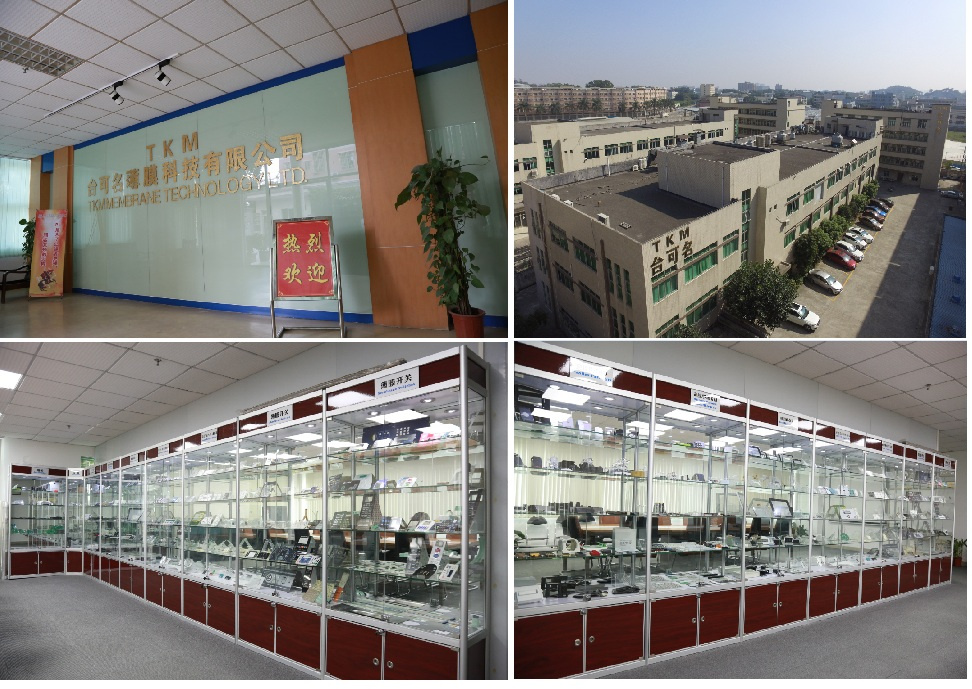

SIEMENS, PANASONIC, SANYO,METTEL and BOSCH.Factory Show
Certification
Packing and ShippingLead time:★Lead-time for our company to create and submit counter-drawings + artwork for your approval:2-3 work days
★Lead-time for our company to build tooling and ship the 5 samples for your approval:10 days
★Lead-time for you have approved the 5 samples:2-3 weeks
Packaging Details:1) Wrap in air bubble film
2) Put into foam box
3) Packed with extra carton box, which make sure the goods safety in transportation.
4) We accepted Customized package.
Shipping Details:1) Can Ship by express such as DHL, FEDEX, EMS, TNT, UPS, or by Sea, by air, it's depends on your
requirement.(The express shipping time is about 3 to 7 working days.)
2) The tracking number will be informed after 1 day the package delivered.
3) We will follow the shipment after we sent it. If you not receive goods on time, please contact us immediately, we will assist to get the goods smoothly.
Welcome to inquiry
Thank you!
Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.
We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.
Our main product range are:
1)Membrane Switch and overlay
2)Flexible printing Circuit/ FPC/EL
3)Silicone products including silicone rubber key pad. And various silicone Rubber products.
4) Metal nameplate series
5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector
We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.
We sincerely hope can cooperate with you in the coming future!
