Medium Voltage Power Cable: Mv 105 Cables 4/0AWG 35kv 133% Insulation Level
| Price: |
US $ 1.94-2/Foot |
| Min Order: |
10000/Foot |
| Pay Type: |
L/C,T/T |
| Prod Model: |
MEDIUM VOLTAGE POWER CABLE MV90, MV105 |
| Products Name: |
Medium Voltage Power Cable, Mv90, Mv105 |
| UL Listed Type: |
Mv90, Mv105 |
| Standard: |
UL1072, Icea S-93-639 |
| Rated Voltage: |
5kv, 8kv, 15kv, 25kv, 35kv |
| Insulation: |
Tr-XLPE, Epr |
| Sheath: |
LLDPE, PVC |
| Working Temperture: |
Max 90 Degree or 105degre |
| Sheath With Strip: |
Red Strip |
| Insulation Level: |
100% or 133% |
| Sample Available: |
Yes |
| Application: |
Installed in Raceways, Duct |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
UL |
| Model: |
Medium Voltage Power Cable Mv90, Mv105 |
| Sheath Material: |
LLDPE, MDPE, PVC |
| Brand: |
Rneda |
| Wire Core Material: |
Aluminum, Bare Copper Wire |
Product Description
MEDIUM VOLTAGE POWER CABLE:
MV 105 CABLES 4/0AWG 35KV 133% Insulation Level Applications
- For use in power circuits up to 35 kV when installed in open air, conduit, duct, or direct buried, for wet and dry locations. Used for power applications in chemical plants, refineries, steel mills, industrial plants, utility substations and generating stations
STANDARDS & REFERENCESPrimary UD TRXLP Cable meets or exceeds the following ASTM specifications:
• B3 Soft Annealed Copper Wire
• B8 Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard or Soft
• B230 Aluminum, 1350-H19 Wire for Electrical Purposes
• B231 Aluminum 1350 Conductors, Concentric-Lay-Stranded
• B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes
UD TRXLP Cable is manufactured to the latest edition of the following specifications, and
in case of specification conflicts, in the order listed:
• ANSI/ICEA S-94-649
• AEIC CS-8
• UL1072, When Specified

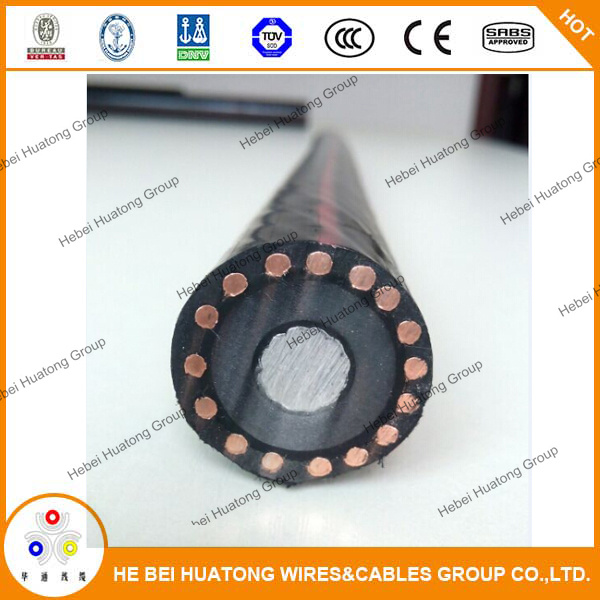

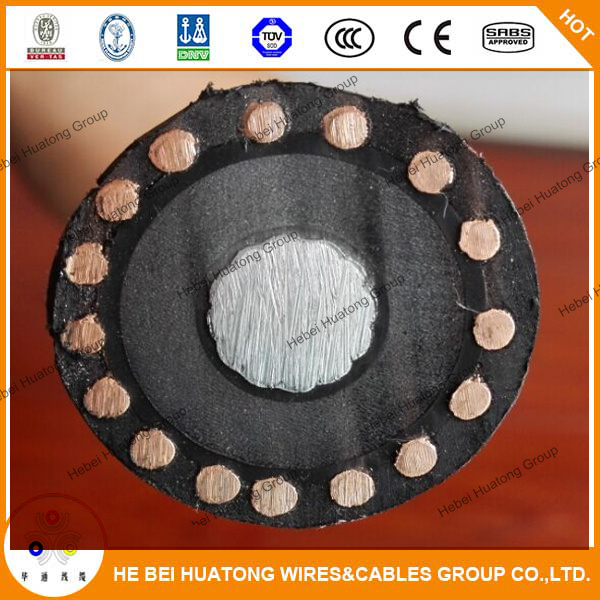

CONSTRUCTIONConductors: Bare, annealed copper per ASTM B-3,aluminum compact conductor.Internal semiconductor:Screen over the conductor, made of thermosetting semiconductor material.Insulation:Cross-linked polyethylene (XLPE)/Ethylene propylene rubber (EPR) , in dry atmosphere catenary tube, through a triple layer extrusion process.External semiconductor:Screen over the insulation, made of thermosetting and strippable semiconductor material.Metallic screen:Screen of copper wires.External sheath:PVC, red or black colour.LLDPETemperature Range: -40°C to +90/105°CVoltage Rating: 5KV 8KV 15KV 25KV 35KV | Phase Conductor | Neutral | Thickness Per Cond. (mils) | Diameter (mils) | Weight 1000 feet (lbs.) | Allowable Ampacities+ |
| Size (AWG or kcmil) | Strand-ing | No. of Wires | Size (AWG) | Nominal Insul. | Insul. Shield min. Point | Approx. Jkt. | Bare Phase Cond. | Over Insul. | Over Insul. Shield | Comp. Cable | Comp. Cable | Direct Burial | In Ducts |
| ALUMINUM CONDUCTOR - 100% INSULATION LEVEL |
| 2 | Solid | 10 | 14 | 175 | 30 | 50 | 258 | 653 | 733 | 961 | 453 | 168* | 119* |
| 2 | 7 | 10 | 14 | 175 | 30 | 50 | 283 | 678 | 758 | 986 | 470 | 168* | 119* |
| 1 | Solid | 13 | 14 | 175 | 30 | 50 | 289 | 685 | 765 | 993 | 520 | 193* | 137* |
| 1 | 19 | 13 | 14 | 175 | 30 | 50 | 322 | 718 | 798 | 1026 | 539 | 193* | 137* |
| 1/0 | Solid | 16 | 14 | 175 | 30 | 50 | 325 | 720 | 800 | 1028 | 591 | 218* | 155* |
| 1/0 | 19 | 16 | 14 | 175 | 30 | 50 | 352 | 748 | 828 | 1056 | 609 | 218* | 155* |
| 2/0 | 19 | 20 | 14 | 175 | 30 | 50 | 395 | 790 | 870 | 1098 | 703 | 248* | 177* |
| 3/0 | 19 | 25 | 14 | 175 | 30 | 50 | 443 | 838 | 918 | 1146 | 817 | 284* | 201* |
| 4/0 | 19 | 20 | 12 | 175 | 30 | 50 | 498 | 893 | 973 | 1234 | 993 | 324* | 230* |
| 250 | 37 | 16 | 10 | 175 | 30 | 50 | 558 | 963 | 1043 | 1346 | 1213 | 360* | 257* |
| 350 | 37 | 18 | 14 | 175 | 40 | 50 | 661 | 1068 | 1168 | 1396 | 1055 | 389** | 319** |
| 500 | 37 | 25 | 14 | 175 | 40 | 50 | 789 | 1193 | 1293 | 1521 | 1349 | 468** | 384** |
| 750 | 61 | 24 | 12 | 175 | 40 | 80 | 968 | 1383 | 1483 | 1798 | 1946 | 569** | 468** |
| 1000 | 61 | 20 | 10 | 175 | 40 | 80 | 1117 | 1530 | 1630 | 1988 | 2473 | 642** | 542** |
| 1250 | 91 | 25 | 10 | 220 | 55 | 80 | 1250 | 1765 | 1895 | 2253 | 3142 | 688** | 604** |
| 1500 | 91 | 30 | 10 | 220 | 55 | 80 | 1370 | 1885 | 2015 | 2373 | 3616 | 726** | 637** |
UL Certificate for 35KV URD Cable(MV90/105)
SOOW CORDS, XHHW,SER,SEU,MC Cable

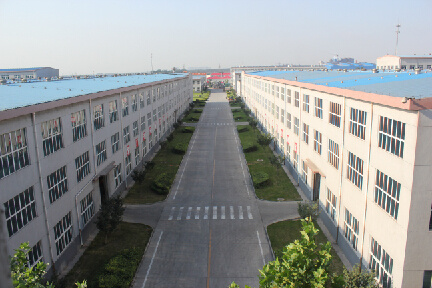

COMPANY INFORMATIONHebei Huatong Wires and Cables Group Co., Ltd.It was established in 1993.
Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 1000 employers in our company, among which more than 150 are technicians.TWO FACTORIES IN CHINA ! ONE FACTORY IN Tanzania!
Yearly Export Amount 200Millon
Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects.
We are top cable manufacture of rubber serious cables . Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC power cables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS
Certificates and"National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate".
Our Service
1.24years production experience and 15 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3.OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
