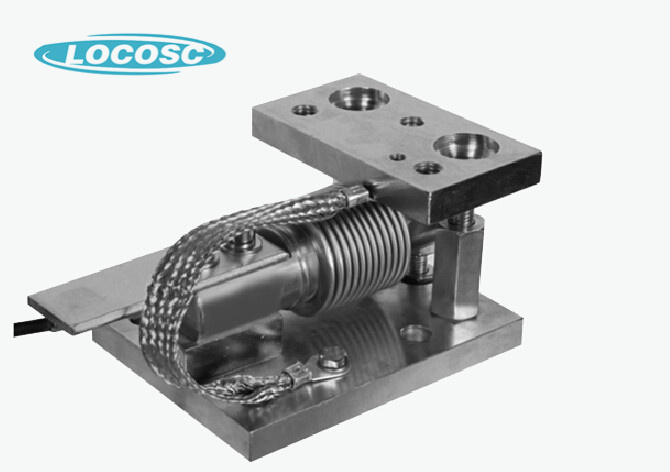

Machine Testing Aluminum Compression Load Cell Module

Name: Machine Testing Aluminum Compression Load Cell Module
Brand: all-electronics-online.com
SKU: 837499415
Availability: InStock
Rating: 4.9 (121 reviews)

Price:	US $ 10-50/Piece
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

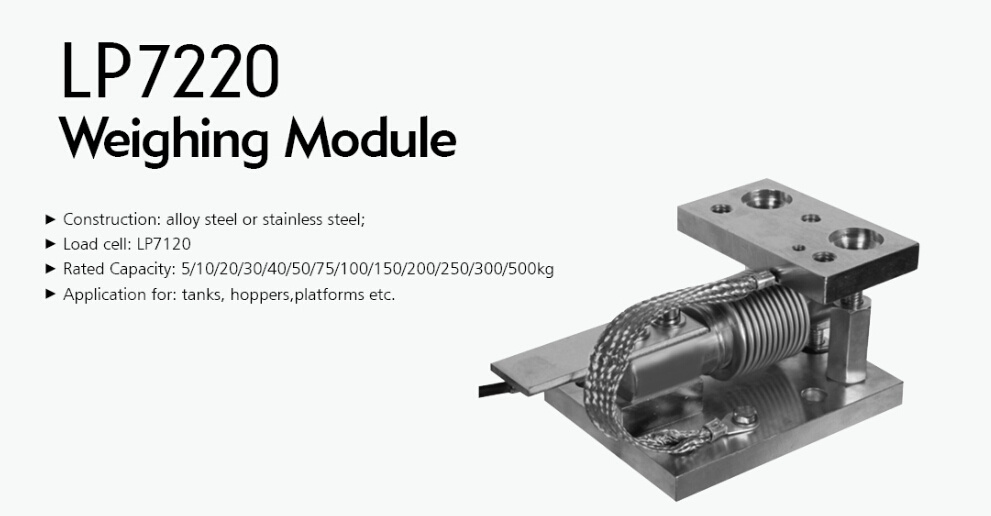

Prod Model:	LP7220
Accuracy Class:	C3
Creep (30 Min):	± 0.03% F.S
Input Impedance:	760 ±10 Ω
Excitation Voltage:	4~12VDC 15VDC(Max.)
Safe Overload:	150% F.S
Rated Capacity:	500kg
Operating Temperature:	-10~+40ºC
Destructive Load:	300% F.S
Material:	Aluminum/Alloy Steel

Product Description

Packaging Details:Foam and carton.

Delivery Detail:30 working days

1. What essential information is needed for product selection?
Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.

2. How will you ensure quality of your products?
A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.
B. One year warranty and life time free consult to any needs related with our product.

3. What terms of payment is acceptable?
T/T

4. When production could be arranged?
As soon as the payment was received.

Since its foundation in1992, Locosc focuses on designing and manufacturing weighing indicator, platform scale, load cell, truck scale, and weighing system. After years of continuous research and improvement, now we own a strong R&D team to response on various ODM and OEM requirements from our customers. Till now, , CE, NTEP, EMC, RoHS, EMC approval.

Locosc provide various weighing scales and weighing solution to whole world.

The factory covers 13, 000 square meter, over 200 people, 15 engineers.

With our rich experience in weighing field and consolidating the most competitive weighing scales in China, we provide the most qualified and reliable industrial and commercial scale for our over 300 oversea customers. And from 45 countries

Locosc precision is a company that can offer unlimited strategic advantages and infinite room for growth. It is our honor to be a company worthy of your faith and trust.

Locosc Precision is under ISO2000 system authorized by Chinese government.

Since its foundation in1992, Locosc focuses on designing and manufacturing weighing platform scale, weighing indicator, load cell, truck scale, and weighing system. After years of continuous research and improvement, now we own a strong R&D team to response on various ODM and OEM requirements from our customers. Till now, we have ISO\CE\ NTEP\ EMC\ RoHS approval.

Locosc Precision provide various weighing scales and weighing solution worldwide

The factory covers 13, 000 square meter, over 200 people, 15 engineers.

With our rich experience in weighing field and consolidating the most competitive weighing scales in China, we provide the most qualified and reliable industrial and commercial scale for our over 300 oversea customers from 45 countries

Locosc Precision can offer unlimited strategic advantages and infinite room for growth. It is our honor to be a company worthy of your faith and trust.

Locosc Precision provide international weighing solution worldwide.
