| Prod Model: |
LYD-HC008 |
| Net Weight: |
190g |
| Gross Weight: |
226g |
| Rated Power: |
2.2W |
| Effects Model: |
123 |
| Maximum Control Points: |
2048points |
| Current: |
<60mA |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Battery Type: |
AAA Battery |
| Voltage: |
DC5V, 12V~24voptional |
| Material: |
Aluminum |

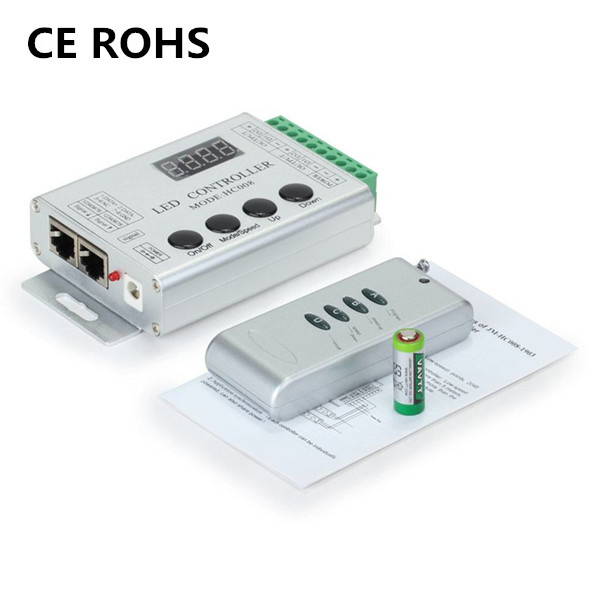

Product Description
Basic Info| place of origin: | Shenzhen,China | current: | <60mA | remoter size: | L90xW36xH15mm |
| Package size: | L135xW80xH55mm | Maximum control points: | 2048points | Voltage: | DC 12v DC24V DC5V |
| Supply voltage: | DC5V, 12V~24V available | Type: | Remote Control | | |
Product Description
DescriptionSD card aluminum shell magic led controller is suitable for UCS1903, UCS6803 (TM1804,TM1809, TM2801 etc.) output applications to drive LED directly , and can be widely applied to the light box advertising, stage sets, home decoration; It has many advantages such as low price, easy connection and simplicity to use; It has a memory function; You can select mode, adjust brightness and various dynamic changes in lighting effects through the radio frequency remoter. In addition, we can compile kinds of customer requested change effect to the SD card by software, to realize user-defined dynamic change mode. At the same time it can synchronously control more controllers, continuously expand the output channels, in order to achieve more dimming or various program synchronization change effect.
It has a TF card with computer software, simple effect files and Electronic file specification. Please kindly check.
Technical ParametersWorking temperature:-20-60ºC
Supply voltage:DC5V, 12V~24V available
Current:<60mA
Controller dimension:L122×W71×H24mm
Remoter dimension:L90×W36×H15mm
Packing size:L135×W80×H55mm
Net weight:190g
Effects model:123
Maximum control points:2048points
Available IC Model:TM1803,TM1804,TM1809,UCS1903 TM1812,WS2811,LPD6803,LPD8806,SM16716 etc.
Direction for useConnect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power. Then set the steps as follows.
Press the "On / off" button to take the controller off before setting the menu.
Press the "up", "down" button one time at the time, and LED would be bright at this moment. Then press the "Mode / Speed" button to get into the menu settings screen.
The first setting screen is for "High-speed, low-speed settings", and the LED would display "S-HI" or "S-LO". Then press the "up" and "down" button to select the mode. (If the IC on the light bar is high-speed mode, you should choose "S-HI", and choose "S-HI" when low-speed.) The factory default is for the high-speed mode.
Continue to press the "Mode / Speed" button to enter the second screen-"Control points setting". The LED display 4-digit is for the number of control points. To plus or minus the number by pressing the "up" and "down" button (Long pressing can adjust quickly). The factory default is for 50.
After setting well, press the "On / off" button to save and exit.
There are 4 buttons in total on the control panel.
★ On/off:It can turn on or turn off the output..
★ Mode/Speed :Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)
★ UP:Mode+/Speed+ button. When in mode regulator function, it is for "Mode+". When in speed regulator function, it is for "Speed+".
★ DOWN:Mode-/Speed- button. When in mode regulator function, it is for "Mode-". When in speed regulator function, it is for "Speed-".
★ Remarks:When power the controller, the red indicator light will be light up, and the green indicator light will be flash when press the button each time.
Adopt wireless control method, 4keys in total.
★ A: Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)
★ B:Mode+/Speed+ button. When in mode regulator function, it is for "Mode+". When in speed regulator function, it is for "Speed+".
★ C:Mode-/Speed- button. When in mode regulator function, it is for "Mode-". When in speed regulator function, it is for "Speed-".
★ D:On/Off button: It can open or close output.
★ Remarks:When power the controller, the red indicator light will be light up, and the green indicator light will be flash when press the button each time.
Synchronous controller system descriptionSynchronous control system can be made of any number of controller connections. Each of the sub-controller would follow to the first master controller to achieve a permanent synchronous change. And there is not delay.

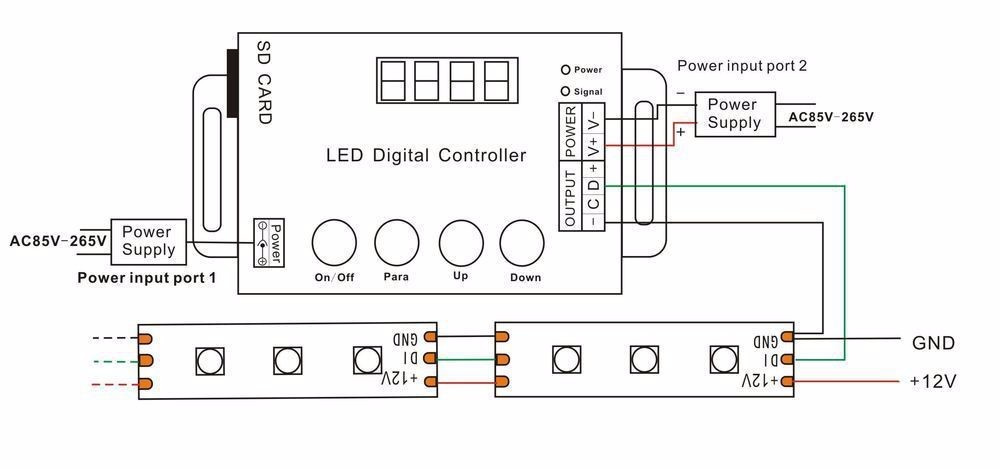

After connecting the wiring diagram, the sub-controller need not be set. It will be in accordance with the master to controlling the speed and mode change. (That would be not synchronous when powering. You could close and open to be synchronous) When master is working, and the sub-control working well, the green signal light of sub-control would flick. The digital LED display the mode in operation.
The 133th Changing mode (Custom combination mode) operation specification:
This Mode is an editable combination mode, you can edit 2 ~ 20 scenarios (1 to 132 of the pattern) combined into a cycle patterns, each pattern can set change speed separated,can identify the model number and play cycle automatic .
(1)In the OFF station, press the "Mode/Speed","Up"two button at the same time then to enter the edit menu,the digital show "-01-","-**-",it means that at this moment can press the "+","-"button to edit the scene number.
(2)After setting the scene number,press the "Mode/Speed" for one time , the digital tube will show "H***",and enter the scene setting state,at this moment can press "+","-" button to edit the scene changing function,and the effect of the scene can be seen by the led lights.When the digital show "H000"means that the scene still not be set.
(3)After setting Mode,press the Mode/Press button again,the digital tube will be show "S0*",Its to show the Speed of the current scene Mode,at this time can adjust the changing speed by press Button "+/-",and this effect can be seen through the led strips.
(4)After chose the Changing speed,press the "Mode/Speed"button again to enter the scene number setting state"-**-",at this time can enter another scene and edit it or press the the "On/Off"button to save your choice .
Note: when setting the scene less than 20 kinds, the scene is to start from the first scene (because the 133th mode starts running scene "01"), the scene has not be set the scene mode please set to "H000". If you need to set up five scenarios into 133 model, after entering the edit menu editor "01" to "05" scenario respective model and speed (edit can be not follow order), after edited needs to be checked the "06" scene mode is "H000" or not, if not please press the "+", "-" button to adjust it.
