Low Voltage DC Brushless Actuating Motor
| Price: |
US $ 65.16-87.1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
57IV90/57IV130/57IV180 |
| Name: |
Low Voltage DC Brushless Actuating Motor |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Application: |
Universal, Industrial, Household Appliances, Car, |
| Operate Mode: |
Driving |
| Certification: |
Ce,RoHS |
| Brand: |
Novotech |
Product Description

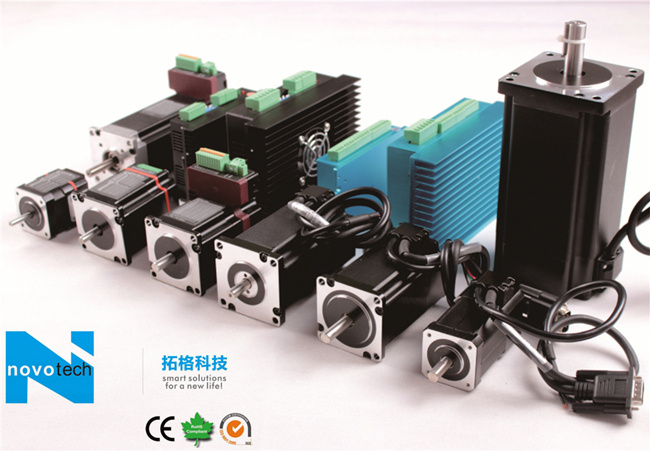

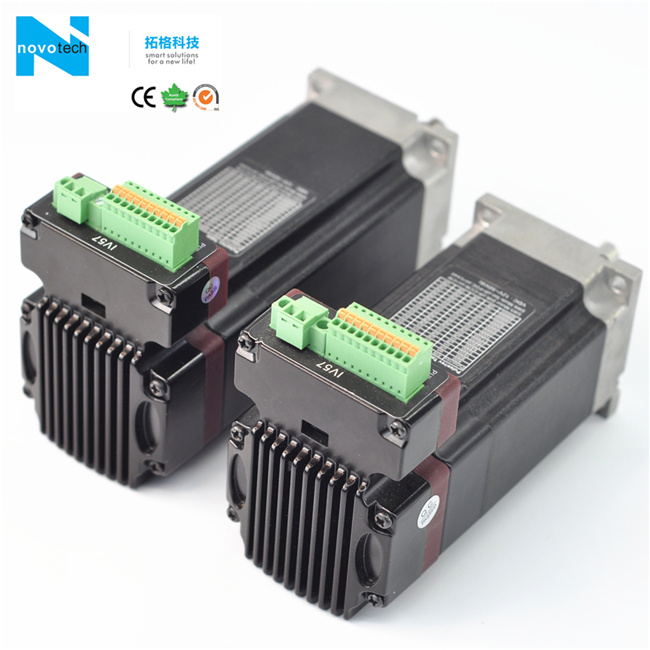

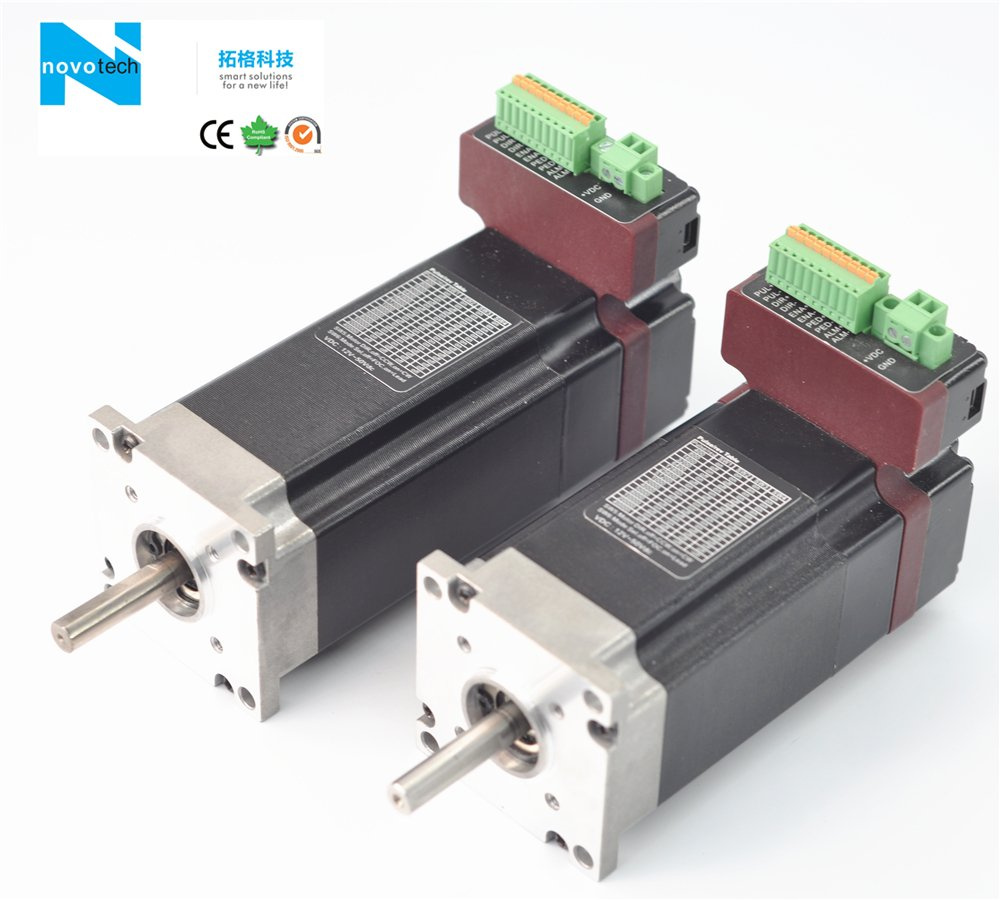

Low Voltage DC Brushless Actuating Motor
57IV90/57IV130/57IV180 Features1.Operating voltage: DC input voltage 15VDC to 50VDC ,recommend voltage is 36V
2.The max continuous output current is 10A, the max peak current is 22A (3 times overload capacity)
3.Acceptable differential or single-ended pulse / direction command, have three control mode of position, speed and torqe
4.Using FOC magnetic position control technology and space vector pulse width modulation (SVPWM) closed-loop control technology
5.The number of pulses per cycle (subdivision) can be set by the debug software or the dial switch setting(electronic gear ratio)
6.Have three types of 90w,130w and 180w DC brushless servo motor to choose.
7.Have protection of overvoltage, undervoltage, overcurrent and tolerance,etc.
8.Single / double pulse mode, the pulse valid edge can be choose.
9.The max pulse frequency of control instruction is 500KHz (factory default is 200KHz)
10.Pulse, direction and enable signal input interface level is 4.5 to 28V compatible
11.With serial RS232 / RS485 debugging function, but need to use our special serial debugging cable
12.Performance: smooth speed, small overshoot ,small tracking error, low heat of motor and driverDriver Model And Selection Guide| Motor Type | 57IV90 | 57IV130 | 57IV180 |
| Rated power(W) | 90W | 130W | 180W |
| Vector Maximum Current | 16A | 18A | 22A |
| Body Length(MM) | 106.2 0.5 | 126.2 0.5 | 146.2 0.5 |
| Operation Voltage | 15-50Vdc,36Vdc recommend |
| Overvoltage Protection Voltage | 68Vdc±2 |
| Control Method | 32 bits DSP vector FOC control technology |
| Pulse Limit Frequency | 500KHz(factory default 200KHz) |
| Protection | Overcurrent, overvoltage, undervoltage and tracking error tolerance alarm |
| Input Signal | Pulse, direction and enable differential / single-ended interface signal,
interface level 4.5-28Vdc compatible, no need external current limiting resistor |
| Output Signal | Alarm / in-position signal OC output, the output capacity is100mA, need external
pull-up resistor, the maximum pull up voltage is 24Vdc |
| Electronic Gear Ratio | Default 4000 / rev, through the DIP switch or debug software setting subdivision
(200-51200) |
| Position Error Control Accuracy | ±1 Pulse |
| Speed Control Accuracy | ±2 rpm |
| Maximum Acceleration | 100 rpm/ms |

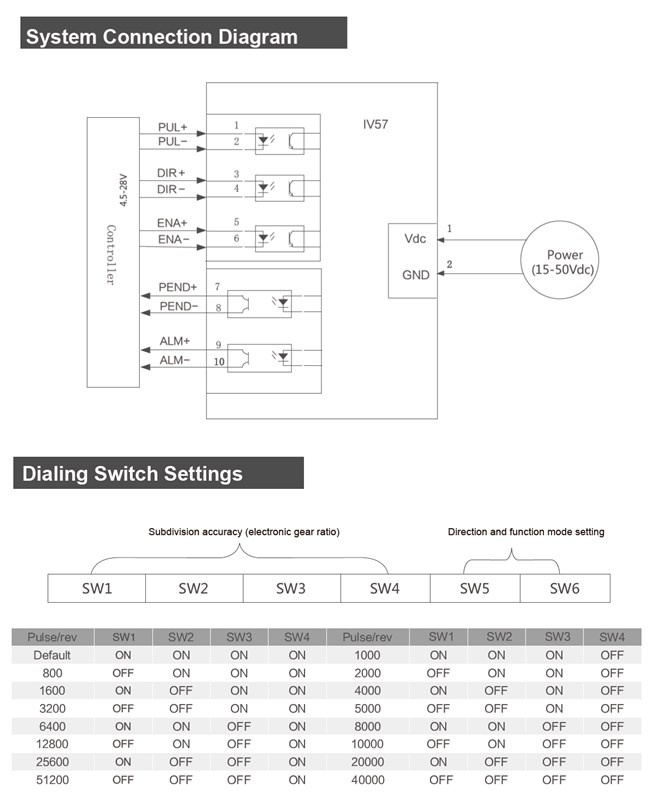

Dialing Switch Settings| Pulse/Rev. | SW1 | SW2 | SW3 | SW4 |
| Default | ON | ON | ON | ON |
| 800 | OFF | ON | ON | ON |
| 1600 | ON | OFF | ON | ON |
| 3200 | OFF | OFF | ON | ON |
| 6400 | ON | ON | OFF | ON |
| 12800 | OFF | ON | OFF | ON |
| 25600 | ON | OFF | OFF | ON |
| 51200 | OFF | OFF | OFF | ON |
| 1000 | ON | ON | ON | OFF |
| 2000 | OFF | ON | ON | OFF |
| 4000 | ON | OFF | ON | OFF |
| 5000 | OFF | OFF | ON | OFF |
| 8000 | ON | ON | OFF | OFF |
| 10000 | OFF | ON | OFF | OFF |
| 20000 | ON | OFF | OFF | OFF |
| 40000 | OFF | OFF | OFF | OFF |

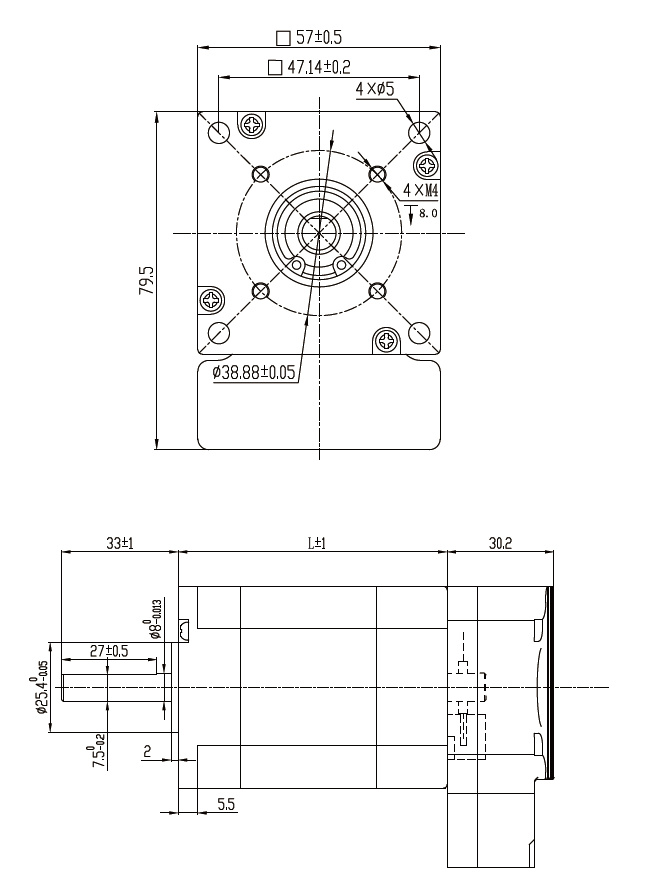

Subdivision accuracy (electronic gear ratio) :When SW1, SW2, SW3, SW4 are ON, the drive uses the internal default micro-step subdivision, the default internal subdivision of the driver is 400Pulse / rev, and the electronic gear ratio can also be set by the debugging software. SW5 set the motor direction,when turnON, the motor turns clockwise (CW),when turn OFF, the motor turns counterclockwise(CCW). SW6 control mode selection, whenON, the motor enters the self-test mode,making one forward and reverse revolution, has been repeated until exit self-test mode, the external control signal is invalid at self test mode, whenOFF, the motor exits self-test mode,then the external control signal is valid.Mechanical Structure Dimension| Driver mode | Motor body length(mm) | Driver thickness(mm) | Integrated motor driver length(mm) |
| 57IV90 | 76 | 30.2 | 106.2 |
| 57IV130 | 96 | 30.2 | 126.2 |
| 57IV180 | 116 | 30.2 | 149.2 |
Note : All above is normally used, and we can customize according to your request or choose the suitable model for you, please tell us following parameters: current, voltage, holding torque, body length,the application area.ApplicationSuitable for all kinds of small and medium-sized automation equipments and instruments. Such as: laser equipment, medical equipment, 3D printer, small and medium-sized engraving machine, electronic processing equipment, automatic crawling equipment, special CNC machine tool, packaging equipment and robot. It is especially useful for users who expect low noise and high speed applications.Packaging and shipping1.Outer packing: Standard export carton with required shipping marks
2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded
3.As per the clients requirementsOur service1.Working time : 8:00 a.m - 10:00 p.m .Any questions, please tell us freely, we will be reply you asap.
2.Lead time : For samples, 2 to 5 days will be OK. For mass production, the lead time depend on the quantities you need.
3.Warrantity period : 18 months and Life-long maintenance service for the product.
4.We accept products customize.FAQQ1: How to choose the suitable stepper or servo motor?
A1: There are serveral important items: size, length, holding torque, voltage, current etc.After confirm them and told us, we can choose the suitable one for you.
Q2: Any other methods to finalize the model?
A2: Sure, you can send us the model you are using, we can help you find the suitable one.
Q3:How to guarantee the Quality of Industrial Parts?
A3: We have the integrated system for industrial parts quality control. We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts prodution.
Q4:What's the Advantage of Your Parts for Industry Products?
A4:1.The advantage of our products is the competitive prices, fast delivery and high quality. Our
employees are responsible-oriented, friendly-oriented,and diligent-oriented. Our products are featured by strict tolerance, smooth finish and long service time.2.Before we send out the goods,we check them more than three times.Contact
