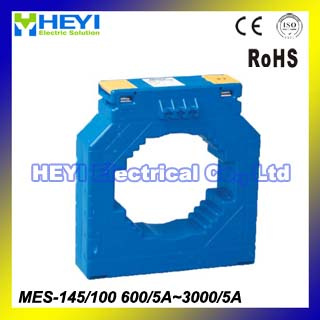

Low Voltage Cp Current Transformer (MES-145/100)

Low Voltage Cp Current Transformer (MES-145/100)
Price: US $ 1-3.2/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: MES-145/100
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Blue
Coil Number: Auto Transformer
Porduct Type: Window Type
Window Size: 100mm
Shell Material: ABS
Application: Instrument
Type: Current Transformer
Phase: Single

Product Description


Description:

A range of (10 frames) compact design plastic case current transformer. It's volume is much smaller than general model, integral hinged plate terminal cover. DIN rail mounting all makes this series CT match the requirements in space limited panels.

Feature

Three built in fixing methods: Side base; DIN rail; Busbar mounting
Built in hinged terminal cover.
Compact design
Primary current from 5A to 3000A

Specifications:

Rated frequency                                      50/60Hz
Rated test voltage                                   3kV AC. (1 min)
Rated short time terminal current (Ith)     60In
Rated dynamic current (Idyn)                   2.5Ith
Rated voltage (Um)                                 0.72Kv AC.
Continuous overload (Id)                          1.2In
Operating temperature                              -10°C--50°C
Housing self-extinguishing class                VO
Safety factor                                               FS 5
Secondary current                                       5A /1A

ModelRated current (A)Rated power (VA)
Class:0.5Class:1
MES-145/100800/51520
100/51520
1200/51520
1500/51520
1600/51520
2000/51525
2500/51525
3000/51525


Our Commitment:
BETTER PRICE than other sellers for you because of Factory Direct Sale.
BETTER QUALITY than before caused by our 10+ years trading experience.
STOCK IN TRADE always own to our Fast & Professional production line.
FAST DELIVERY always made by our GROUP's Enthusiam.
TIMING REPLY in 24 hours all about our TEAM's Passion & Patience.
We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
