| Prod Model: |
QH-23 |
| Capacity: |
5kg to 500kg |
| Accuracy: |
0.03%Fs |
| Rated Output: |
2.0 ± 0.004 Mv/V |
| Recommended Excitation: |
5~12VDC |
| Application: |
Electronic Platform Scale, Hopper Scales and Othe |
| Material: |
Alloy Steel & Stainless Steel |
| Out-Wire: |
4 Wires |
| IP Rating: |
IP67 & IP68 |
| Pattern: |
Single Shear Beam Load Cell |
Product Description
Low Price 5kg Bellow Type Load Cell Product Introduction:
QH-23 load cells are available in the capacities from 5kg to 500kg. Alloy steel & stainless steel construction construction with single shear beam type. Sealed welding ,waterproof, anti-corrosion and suitable for all kinds of environment. Integral structure and easy installation. Suitable for electronic platform scale, hopper scales and other electronic weighing devices.
Features: Capacity :5kg to 500kg
Defend grade: IP67 & IP68
High accuracy.
Alloy steel & stainless steel single shear beam Low profile and nice exterior
Dimensions:
| Specifications: |
| capacity | kg | 10,30,50,100,200,250,500, |
| safe overload | %FS | 150 |
| ultimate overload | %FS | 200 |
| rated output | mV/V | 2.0 ± 0.003 |
| excitation voltage | Vdc | 9 ~ 12 |
| combined error | %FS | ± 0.02 |
| zero unbalance | %FS | ± 2 |
| non-linearity | %FS | ± 0.02 |
| hysteresis | %FS | ± 0.02 |
| repeatability | %FS | ± 0.01 |
| creep | %FS/30min | ± 0.02 |
| input resistance | Ω | 350 ± 5 |
| output resistance | Ω | 350 ± 3 |
| insulation resistance | M Ω | ≥ 5000 @ 50 Vdc |
| operating temperature range | ºC | -20 ~ +55 |
| compensated temperature range | ºC | -10 ~ +40 |
| temperature coefficient of SPAN | %FS/10ºC | ± 0.01 |
| temperature coefficient of ZERO | %FS/10ºC | ± 0.02 |
Electrical connection:Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:3m
Cable diameter : 5±0.2 mm
The cable length could be chose by customer's application.
Product Pictures:

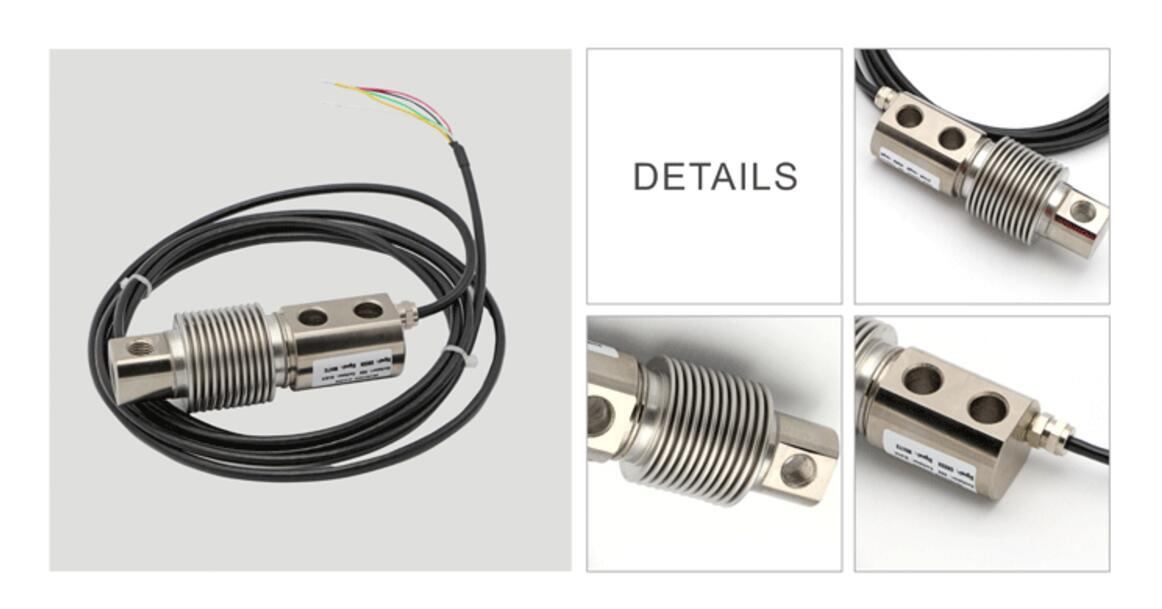

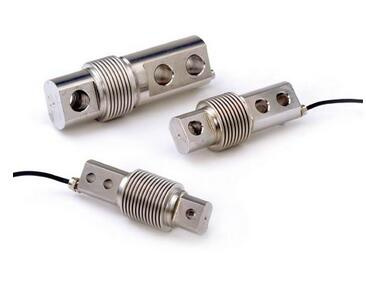

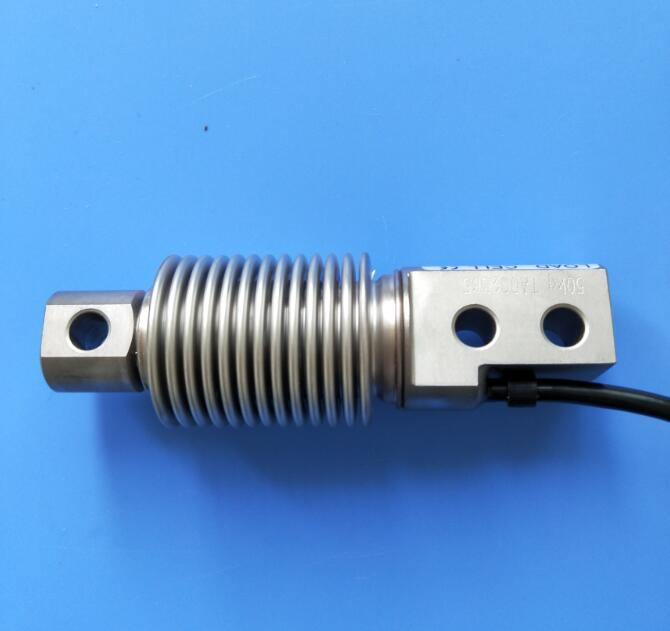

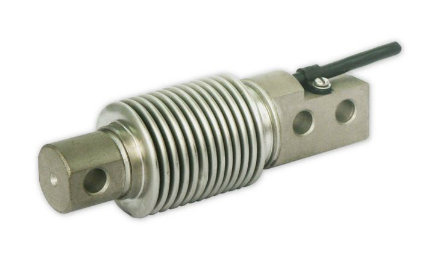

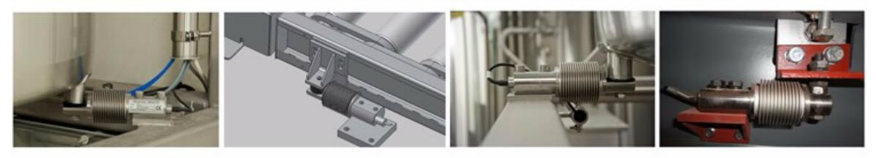

Applications and more installation case
