Low Operating Current Visible High Power Laser Diode (HL63133DG)
| Price: |
US $ 45-52/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
HL63133DG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red |
| Wavelength: |
632nm~643nm |
| Light Output Power: |
170MW |
| Case Temperature: |
-10~+40 Degree |
| Storage Temperature: |
-40~+85 Degree |
| Beam Divergence Angle In Parallel: |
5 9 13 Degree |
| Beam Divergence Angle In Perpendicular: |
13 27 23 Degree |
| Application-1: |
Show Laser |
| Application-2: |
Optical Equipment for Measurement |
| Mode: |
Single Transverse Mode |
Product Description

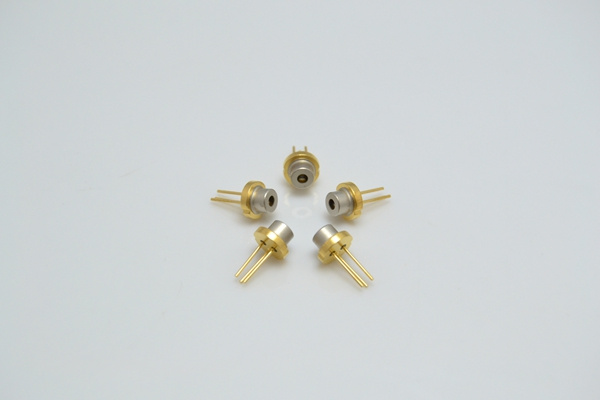

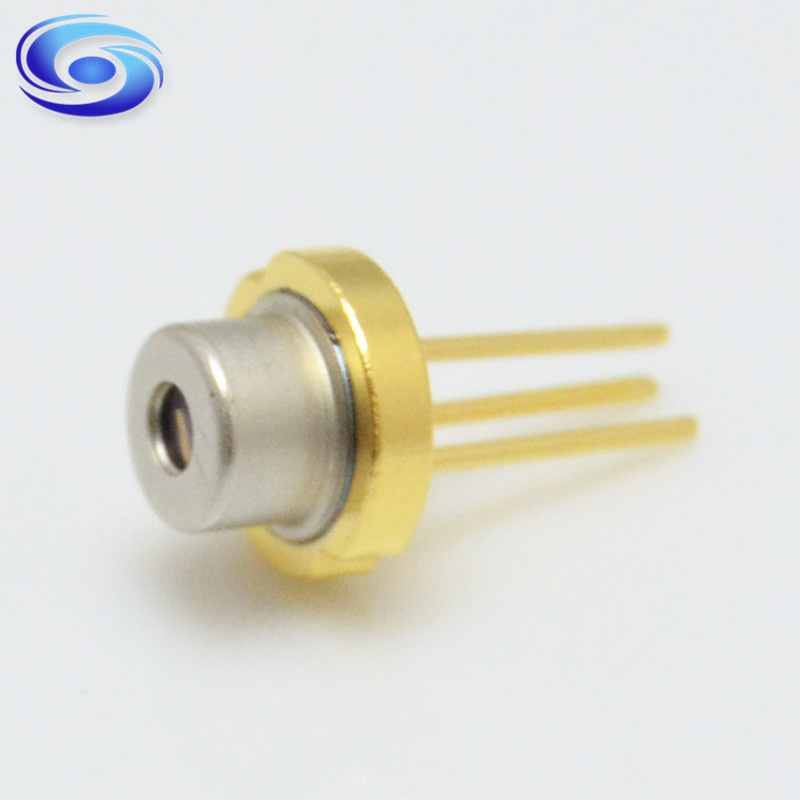

638nm laser diode
Optical output power :170W
Brand & Model: opnext (HL63133DG) Low Operating Current Visible High Power Laser Diode (HL63133DG)
| Electrical and Optical Characteristics (Tc=25ºC) | | | | | | | |
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Lasing Wavelength | Lp | Po=170mw | 632 | 638 | 643 | nm |
| Threshold Current | Ith | - | - | 60 | 90 | mA |
| Operating Current | Iop | Po=170mw | - | 250 | 320 | W/A |
| Operating Voltage | Vop | Po=170mw | - | 2.8 | 3.2 | V |
| Beam Divergence Full Angle | Perpendicular | Qv | Po=170mw | 13 | 17 | 23 | ° |
| Parallel | Qh | 5 | 9 | 13 | ° |
| | | | | | | | |
| Absolute Maximum Ratings (Tc=25ºC) | | | | | | | |
| Parameter | Symbol | Ratings | Unit | | | |
| Optical output power | Po | 170 | mw | | | |
| LD reverse voltage | Vr | 2 | V | | | |
| Operating Case Temperature | Topr | -10 to 40 | ºC | | | |
| Storage Temperature | Tstg | -40 to 85 | ºC | | | |

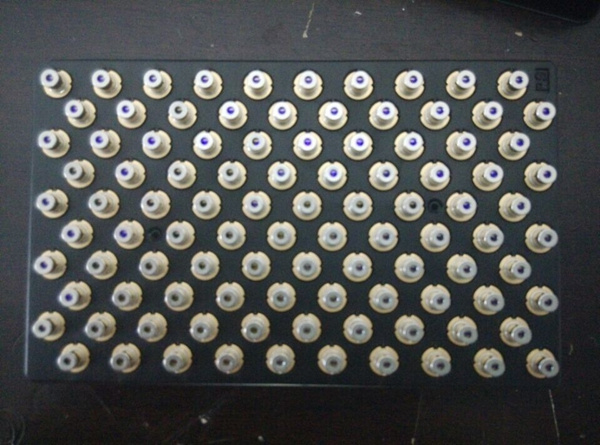

The HL63133DG us 0.63um band AlGaInP laser diodes with a multi-quantum well (MQW) structure.Miss Suki Wei FAQ: 1. How about the product ?This is the new and original opnext 638nm 170mw laser diode with 10000 hours life. 100 pcs in one tray, outside packed with anti-static bag.2. How to delivery ? We have our own DHL/FEDEX accounts, or you can choose other
special lines or cheaper post delivery.
3. How about our company ? Dongguan Blueuniverse Laser Co.,Ltd is a company combined with industry and trade. Our main products are semiconductor laser diode from 405nm~980nm, from 5mw to 5W; bicycle laser tail light, bicycle
warning light; fog light; power bank. And we are still continuously
researching and developing the laser related area.
Our products have its own patent, CE and ROHS certificates. We are
welcome OEM or ODM business opportunity because we have a team
of engineers, project management department and well-trained staff.
Every customer's satisfaction is our goal, quality is the first priory. Our
willing is to be the leadership in this field in China one day in the future.
