| Prod Model: |
DC Brushless Gear Motor GM25-TEC2430 |
| Product Name: |
DC Brushless Gear Motor GM25-TEC2430 |
| Rated Voltage: |
6-24V |
| Protect Feature: |
Totally Enclosed |
| Output Power: |
15W-138W |
| Motor Net Weight: |
0.43-1.25kg |
| Life Expectency: |
2000hours |
| Efficiency: |
80%-90% |
| Directions: |
CW/CCW |
| Axial Play: |
0.05-0.5mm |
| Bearing At Output: |
Sleeve Bearing |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brushless |
| Excitation Mode: |
Permanent Magnet |
| Function: |
Totally Enclosed |
| Type: |
DC Brushless Gear Motor |
| Certification: |
RoHS CE |
| Brand: |
TT Motor |

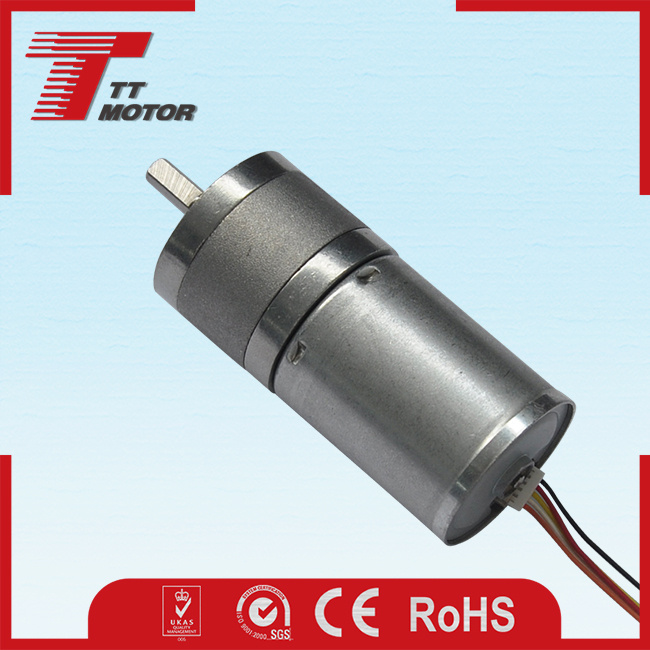

Product Description
Low noise 24V brushless micro dc motor for office equipment
DC motor Main Features
1.OEM/ODM 25mm gearbox plus 24mm brushless motor
2.Small size dc gear motor with low speed and big torque
3.25mm gear motor provide 0.5Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Reduction ratio:4,10,21,34,45,73,78,103,130,177,227,378,499
| Motor model no. | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Output power | Stall torque | Stall current |
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A |
| TEC2430-0645 | 6.0 | 4500 | 180 | 3500 | 62 | 570 | 2.2 | 120 | 1.4 |
| TEC2430-1260 | 12.0 | 6000 | 180 | 4600 | 84 | 800 | 4.6 | 140 | 1.6 |
| TEC2430-2490 | 24.0 | 9000 | 180 | 7200 | 90 | 500 | 6.7 | 180 | 1.9 |
Gearbox with motor GM25-TEC2430-0645-xxx| Reduction ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 | 499 |
| Length mm | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 | 27 |
| No-load speed rpm | 1100 | 430 | 205 | 130 | 95 | 55 | 43 | 35 | 20 | 9 |
| Rated speed rpm | 870 | 350 | 165 | 100 | 75 | 45 | 34 | 27 | 16 | 8 |
| Rated torque kg.cm | 0.2 | 0.4 | 0.9 | 1.3 | 1.7 | 2.9 | 3.8 | 4 | 5 | 5 |
| Max.momentary tolerance torque kg.cm | 0.4 | 0.8 | 1.7 | 2.4 | 3.4 | 5.6 | 7 | 8 | 10 | 10 |
Gearbox with motor GM25-TEC2430-1260-xxx| Reduction ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 | 499 |
| Length mm | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 | 27 |
| No-load speed rpm | 1450 | 580 | 270 | 170 | 125 | 75 | 58 | 45 | 25 | 12 |
| Rated speed rpm | 1150 | 460 | 220 | 135 | 98 | 59 | 45 | 36 | 22 | 11 |
| Rated torque kg.cm | 0.27 | 0.6 | 1.2 | 1.7 | 2.4 | 3.9 | 5 | 5 | 5 | 5 |
| Max.momentary tolerance torque kg.cm | 0.45 | 1.0 | 2.1 | 2.8 | 3.9 | 6.6 | 9 | 10 | 10 | 10 |
Gearbox with motor GM25-TEC2430-2490-xxx| Reduction ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 | 499 |
| Length mm | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 | 27 |
| No-load speed rpm | 2200 | 800 | 420 | 260 | 185 | 115 | 85 | 69 | 40 | 18 |
| Rated speed rpm | 1800 | 720 | 340 | 210 | 155 | 90 | 70 | 57 | 35 | 16 |
| Rated torque kg.cm | 0.29 | 0.6 | 1.3 | 1.8 | 2.5 | 4.2 | 5 | 5 | 5 | 5 |
| Max.momentary tolerance torque kg.cm | 0.58 | 1.3 | 2.6 | 3.7 | 5.1 | 8 | 9 | 10 | 10 | 10 |
Related productProduct ApplicationLabel printers, label stripping machine, bar code printers, robots, electronic door locks, printer, electronic monitor, beauty equipment, display shelves, counters, vending machines,etc.
| Other Applications: |
| Business Machines: | ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines. |
| Food and Beverage: | Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Home Entertainment and Gaming: | Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys. |
| Home Technologies: | Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines. |
| Lawn and Garden: | Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers. |
| Personal Care: | Hair Cutting, Hair Care, Massagers. |
| Power Tools: | Drills and Drivers, Sanders, Grinders, Polishers, Saws. |
Camera and Optical:
| Video, Cameras, Projectors. |
