Prod Model: |
MSD100 |
Item Name: |
Large Torque AC Servo System |
Dustproof: |
Yes |
Waterproof: |
Yes |
High Precision Positioning: |
Can Reach 0.009 |
High Reliability: |
All Use Internation Brands IC |
Wide Speed Range: |
The Maximum Is 6000r/Min |
Support: |
RS485, Can, USB etc, Port |
Fixed Output: |
Servo Alarm |
Meet: |
En, UL, cUL Standards |
Output Type: |
1/3 Phase |
Principle Of Work: |
Vector Control Transducer |
Switch Mode: |
PWM Control |
Main Circuit Type: |
Voltage |
Voltage Of Power Supply: |
Low Voltage Variable-Frequency Drive |
Link Of Transformation: |
AC-DC-AC Variable-Frequency Drive |
Nature Of DC Power: |
Voltage Variable-Frequency Drive |
Structure: |
All Closed, Self-Cooling(Protection Grade IP65) |
Application: |
Three Phase Transducer, General Transducer, High-performance Transducer, Single-phase Transducer, High Frequency Converter Transducer |
Brand: |
Machtric |
Function: |
AC Servo System, Textile Special, Simple Type |
Product Description

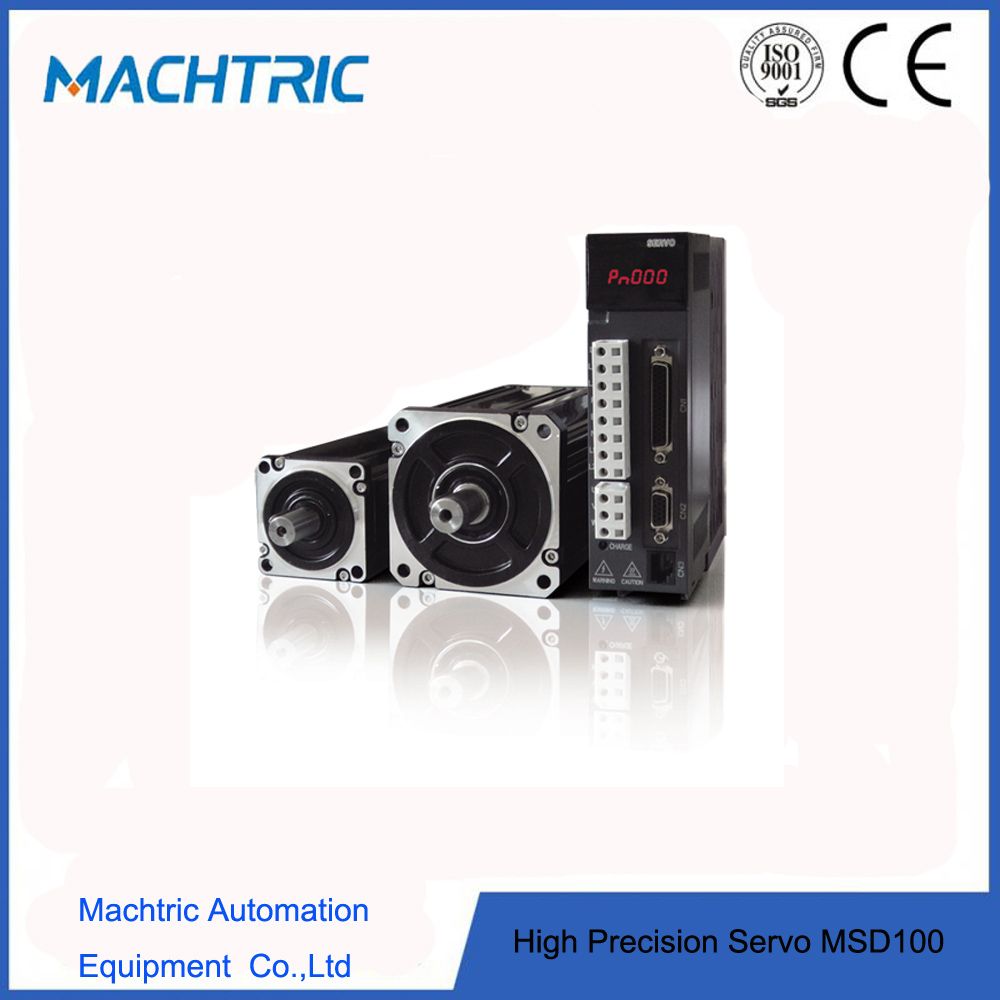

Low Frequency Large Torque Output MSD100 AC Servo System
Download our MSD100 Servo Drive from here:
https://drive.google.com/file/d/0B6CaUFVdbNQVeWZ6WHZxbWt3Q00/view?usp=drive_web
1.Product Advantages:
1)to realize high speed and high precision
2)Compact and flexible
3)Environmental safety
4)Match with overseas standard
2.Other Features:
Wide speed range,the maximum is 6000r/min
High precision positioning,can reach 0.009
High reliability ,all use international brand IC
Fast response frequency,strong overload capacity,no overshoot
Low frequency,large torque output
Anti-interference and self-protection are strong
The Garman instrument motor control dedicated floating-point processor,speed of operation is high to 150MHZ
Support RS485,CAN,USB,etc. port
The ATE automatic detection system,the product quality is reliable
Card type ultrathin structure,the apperance is beautiful,structure is compact
According to the customer's requirement,developed to meet the needs of customers.
3.Nameplate:

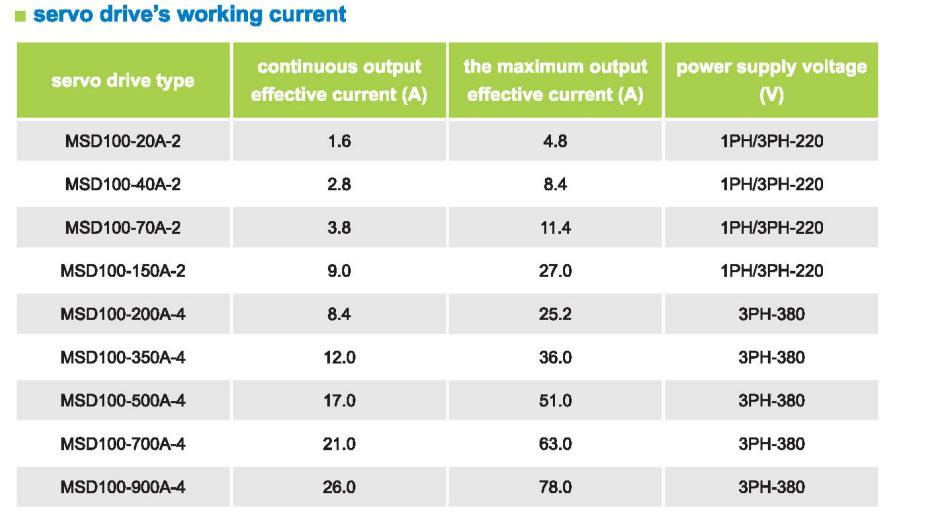

4.Working Current:
![](/proimages/44f3j00EGCQUzZlTpkg/low-frequency-large-torque-output-msd100-ac-servo-system.jpg)

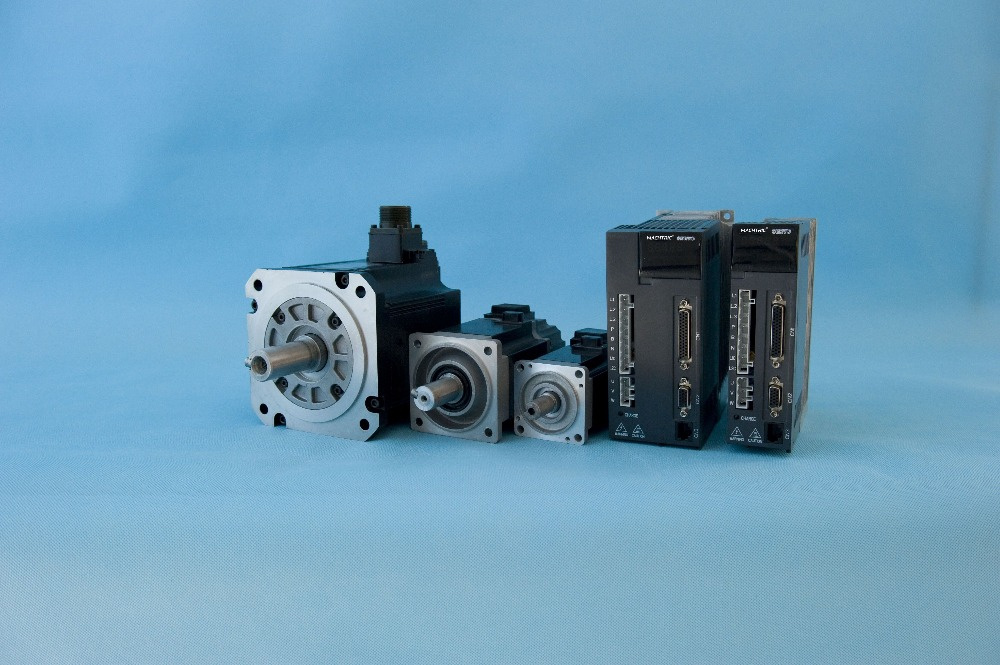

5.Product Show:
![](/proimages/44f3j00TReafIZMIzkp/low-frequency-large-torque-output-msd100-ac-servo-system.jpg)

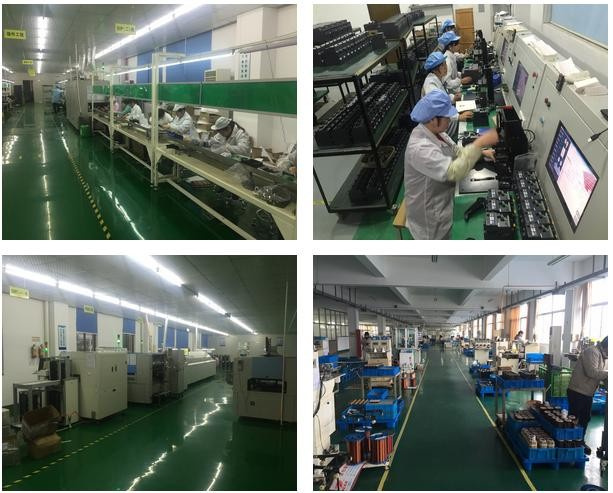

6.Factory Production:
![](/proimages/44f3j00TYetfVKRmubr/low-frequency-large-torque-output-msd100-ac-servo-system.jpg)

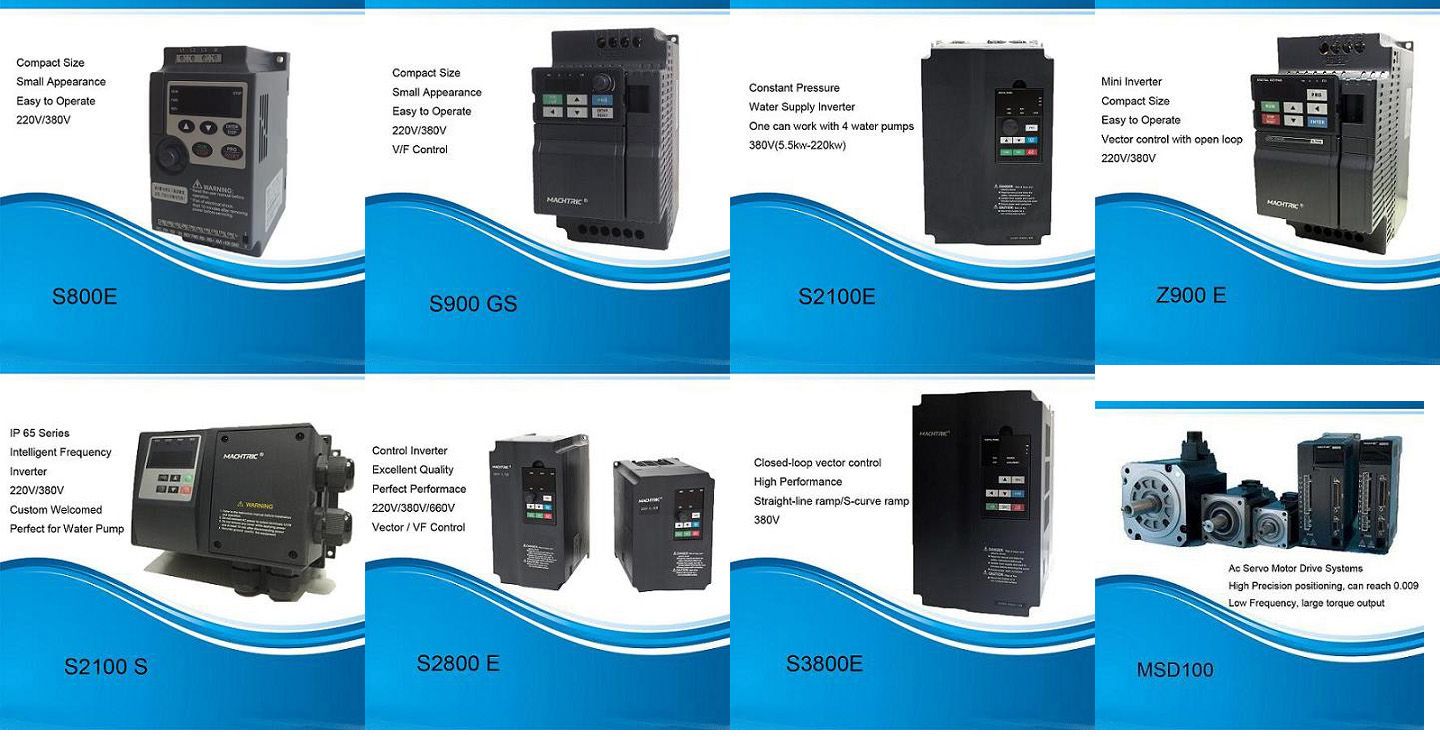

6.Other Main Products:
7.Contact Us:
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
