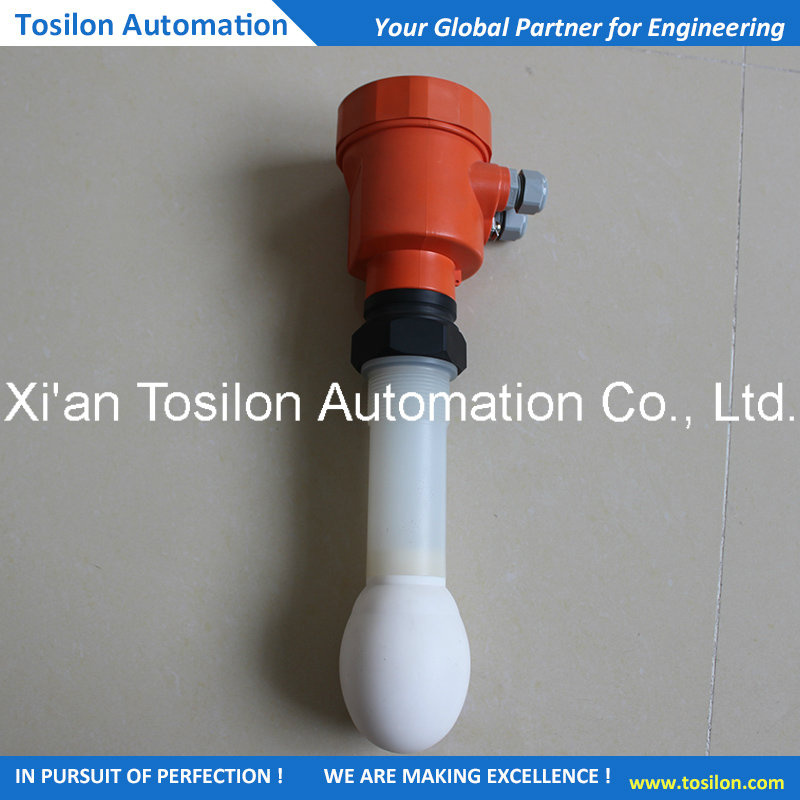

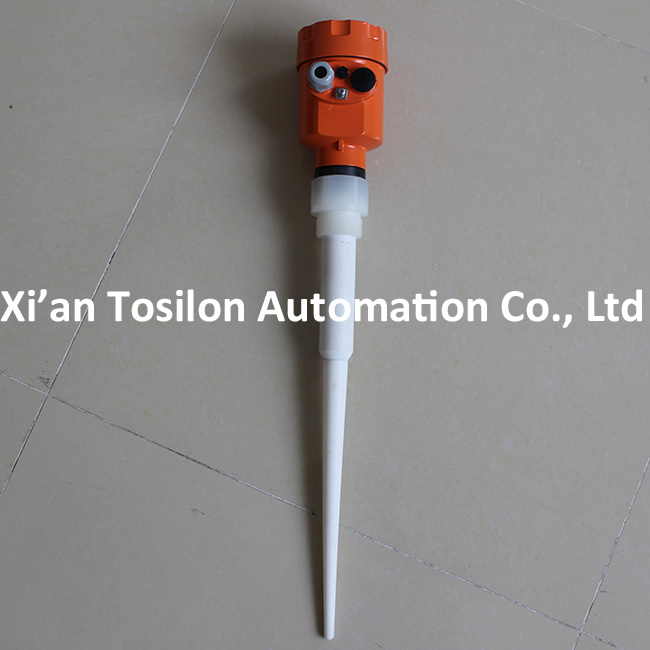

Low Frequency Guided Wave Radar Level Transmitter for Tank
| Price: |
US $ 1020-1800/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
TJGL700 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Frequency: |
100MHz-1.8GHz |
| Measuring Range: |
0-30m |
| Repeatability: |
3mm |
| Resolution: |
1 Mm |
| Sampling: |
Wave Echo Sampling 55 Times/S |
| Response Speed: |
>0.2s (Depends on Concrete Application Status) |
| Output: |
4-20mA |
| Precision: |
<0.1% |
| Communication Interface: |
Hart Communication Protocol |
| Process Connection: |
G1-1/2, Flange 2', 3', 4', 6' |
| Type: |
Radar Level Transmitter |
| Display Type: |
No LCD Display |
Product Description
Tosilon Low Frequency Guided Wave Radar Level Transmitter for Tank (Ex Approved)Design and Manufacturing according to ATEX StandardIntroduction
Guided wave radar is a gauge based on time stroke principle, the radar wave is running at speed of light, the running time can be converted to material level signal through electric components.
The sensor emit high frequency impulse and transmit along the cable, when impulse meets the material surface, it reflects back and is received by receiver inside the gauge, and converts the distance signal to material level signal.

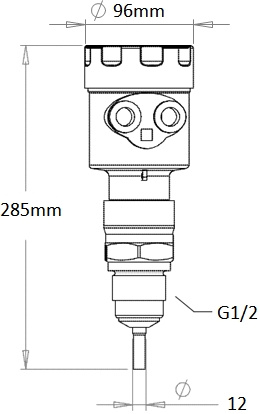

Outline Structure
Technical Data (For details, please contact Tosilon)Working Frequency Measuring Range
100MHZ-1.8GHZ 0-30m
Repeatability Resolution
3mm 1 mm
Sampling
wave echo sampling 55 times/s
Response Speed
>0.2S (depends on concrete application status)
Output Precision
4-20mA <0.1%
Communication Interface
HART Communication Protocol
Process Connection
G1-1/2, Flange 2',3',4',6' For more information, please contact Tosilon
Your Global Partner for Automation
www.tosilon.com
As a China leading mass flowmeter manufacture, Tosilon Automation, establish in 1989, has been engaged in and leads the advanced technology in Coriolis Mass Flow Meter, Density Meter and Flow Metering System which are more effective, efficient and innovate.
In the past 20 years, by cooperating with Northwestern Polytechnical University, Huazhong University of Science and Technology, Xi'an Shiyou University and CSIC Xi'an Dong Yi Science Technology & Industry Group Co., Ltd, financially supported by Provincial Science Technology Program, numbers of achievements and breakthroughs had been made in product-design and production process.
As a leading company in industrial measuring field in China, Tosilon offers complete solutions to flow, density, level, pressure, explosion protection, oil condition monitoring systems, etc. Presently, Tosilon's instrumentation has acquired certifications including CE, FCC, IECEx, ATEX. By years of efforts in improving and modifying, Tosilon has its featured products professionalized to meet the needs from major industries covering Oil & Gas Industry, Petrochemical Industry, Chemical Industry, Mineral Industry, Food Industry, Wine Industry, Paper Making, Power Plant, Drilling Mud Field, Pharmaceutical Industry, aviation, etc. Tosilon is always committed to the innovation and improvements in the technology, providing advanced products, solutions, and offering professional services to clients.
