Long PCB 1.2 Meter with OSP Countersink Hole Board
Price: |
US $ 3.5/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union,Paypal |
Prod Model: |
BIC-466.1757-V1.1 |
Board Thickness: |
1.20 mm +/-0.1 |
Board Material: |
Aluminum PCB, MCPCB |
Tg Value Of Board Material: |
150ºC |
Surface Cu Thickness: |
315 Um (9oz) |
Inner Iayer Cu Thicknes: |
N/a |
Surface Finish: |
OSP |
Solder Mask Color: |
Na |
Mininum Trace (Mil): |
16 Mil |
Minimum Gap(Mil): |
14.7 Mil |
Test: |
100% Electrical Test Prior Shipment |
Type: |
Rigid Circuit Board |
Flame Retardant Properties: |
V0 |
Material: |
Aluminum |
Dielectric: |
Aluminum 6061 |
Product Description
Company Profile
You're benefit from following 5 types of 2 layer PCB's from Bicheng Enterprise Limited.
(1) FR-4 material (The most common used today)
Normal TG, High TG 170, High CTI 600V
Material (CCL) Brand: ITEQ, SHENGYI, KB
(2) High frequency material
RO4350B, RO4003C
PTFE (F4B series from China Brand)
(3) Insulated Metal Substrate (IMS) PCB, typical stack-up as follows
L1---Copper conductor
PP---dielectric material
L2---copper conductor
PP---dielectric material
AL---aluminum base
(4) Metal core PCB (MCPCB), typical stack-up as follows
L1---copper conductor
PP---dielectric material
AL---aluminum core
PP---dielectric material
L2---copper conductor
(5)Polyimide material (Flexible PCB)![](/proimages/44f3j00pguaYTPGdEbH/long-pcb-12-meter-with-osp-countersink-hole-board.jpg)

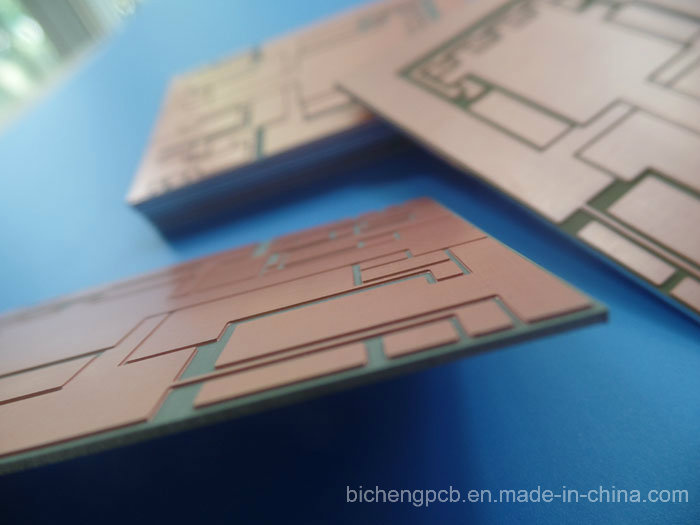

Aluminum PCB
![](/proimages/44f3j00zpuTfGHlDEoP/long-pcb-12-meter-with-osp-countersink-hole-board.jpg)

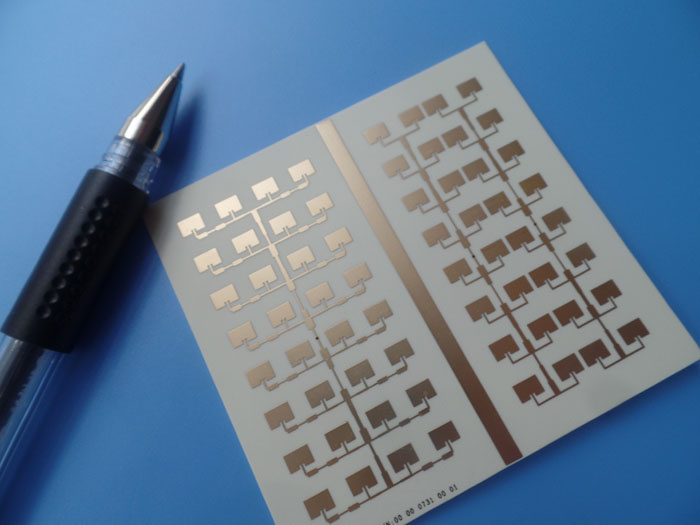

High Frequency PCB
![](/proimages/44f3j00przEGuPmmakI/long-pcb-12-meter-with-osp-countersink-hole-board.jpg)

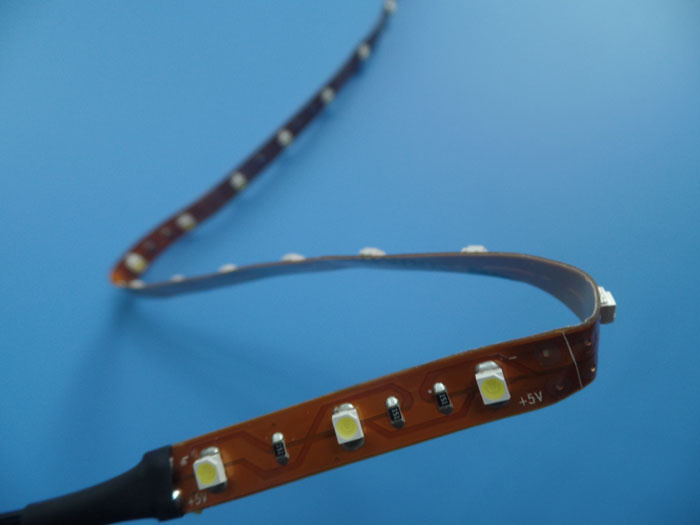

Flex PCB
![](/proimages/44f3j00gpuEfPDsFQqL/long-pcb-12-meter-with-osp-countersink-hole-board.jpg)

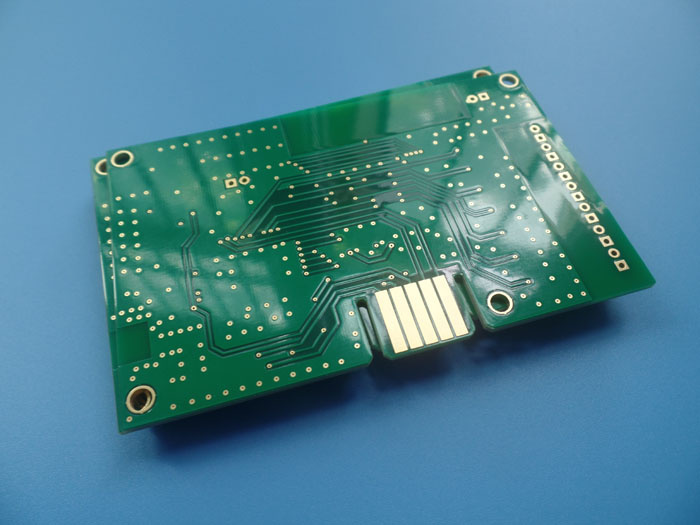

PCB Circuit Board
![](/proimages/44f3j00gputGhLrWEoD/long-pcb-12-meter-with-osp-countersink-hole-board.jpg)
Specifications of Laminates FR-4
When ordering a copper clad laminate board, the FR-4 thickness and the copper foil thickness must be specified separately.
FR-4 thickness is specified in thou or inches, and common thicknesses range from 10 thou (0.010 in, 254 µm) to 3 inches (76 mm).
Copper foil thickness is specified in units of ounces per square foot (oz/ft2), commonly referred to simply as ounce. Common thicknesses are 1 oz/ft2 (300 g/m2), 2 oz/ft2 (600 g/m2), and 3 oz/ft2 (900 g/m2). These work out to thicknesses of 34.1 µm (1.34 thou), 68.2 µm (2.68 thou), and 102.3 µm (4.02 thou), respectively. Some PCB manufacturers refer to 1 oz/ft2 copper foil as having a thickness of 35 µm (may also be referred to as 35 μ, 35 micron, or 35 mic).
1/0 - denotes 1 oz/ft2 copper one side, with no copper on the other side.
1/1 - denotes 1 oz/ft2 copper on both sides.
H/0 or H/H - denotes 0.5 oz/ft2 copper on one or both sides, respectively.
2/0 or 2/2 - denotes 2 oz/ft2 copper on one or both sides, respectively.
Due to the development needs of electronic product installation technology and PCB technology, the high Tg (Glass temperature) FR-4 products was born.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
