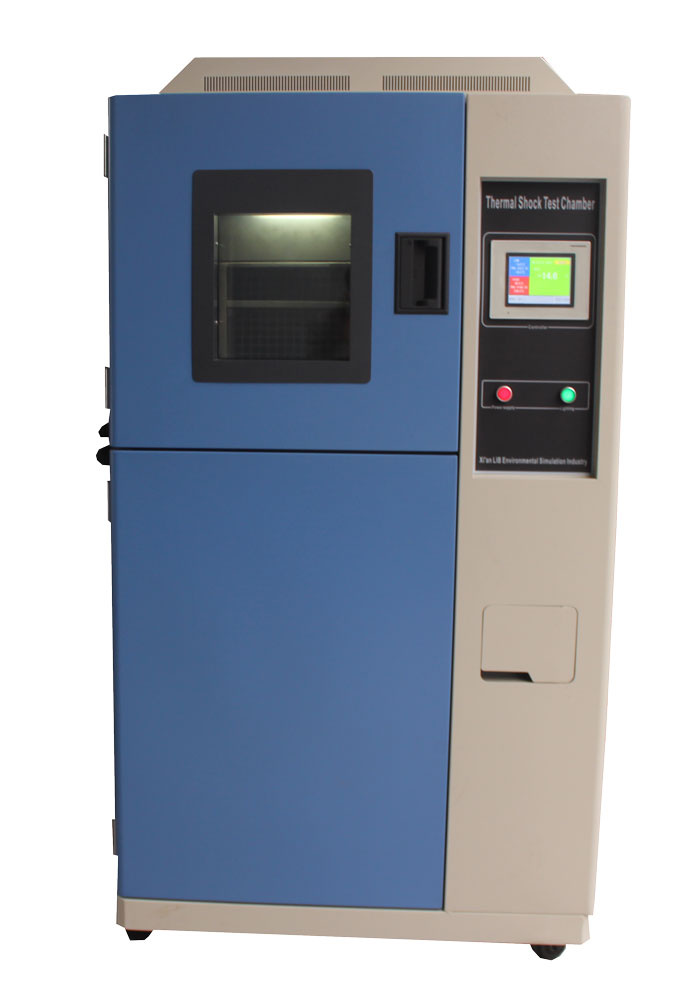

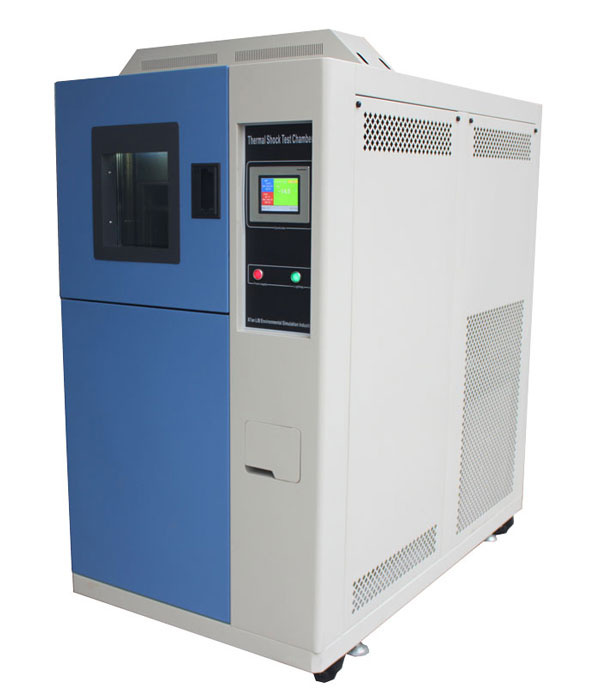

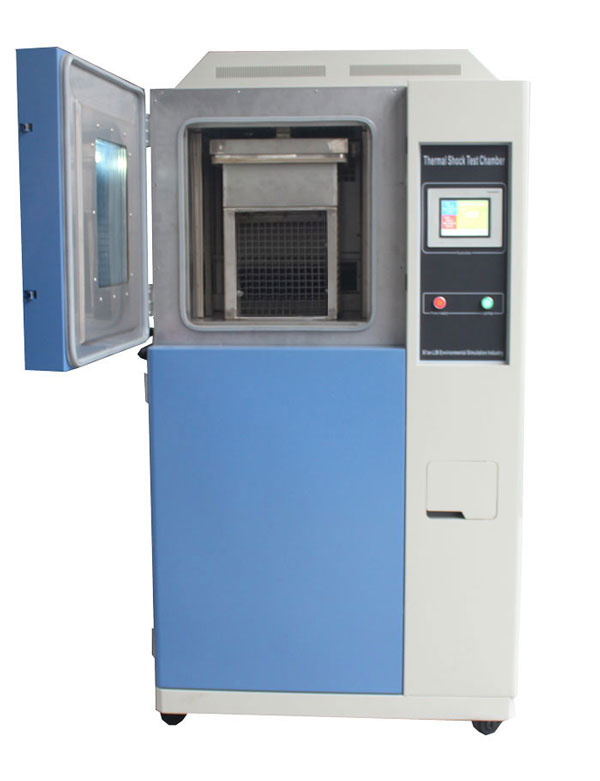

Lift Type Thermal Shock Laboratory Test Machine
Price: |
US $ 6000-29500/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Description: |
Thermal Shock Environmental Tester |
Temperature (Degree): |
-60c to +200c |
Sample Zone Load: |
20kg |
Cooling System: |
French Tecumseh Compressor |
Temperature Sensor: |
PT-100 a Class |
Power Supply: |
380V, 50 Hz 10% +/- Three-Phase Five Little Syste |
Warranty: |
3 Years |
Product Description
Lift Type Thermal Shock Laboratory Test MachineTechnical Parameters:Model | TS-162 | TS-340 | TS-500 |
Internal dimensions (mm) | 450*450*450 | 600*600*600 | 800*800*800 |
Overall dimensions (mm) | 1560*870*1545 | 1710*1020*1845 | 1910*1220*2265 |
Basket dimensions(mm) | 300*300*250 | 450*450*360 | 650*650*500 |
Sample zone load | 20kg | 30kg | 50kg |
Temperature range | -60ºC ~ +200ºC |
Temperature deviation | ≤±2ºC for high temperature and low temperature |
Temperature fluctuation | ≤±0.5ºC (under constant temperature) |
Basket displacement time | ≤15s |
Temperature resetting time | ≤5min |
Controller | Programmable color LCD touch screen controller, PC Link, R-232 interface |
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
Heater | Nichrome heater |
Cooling system | Mechanical compression refrigeration system |
Refrigerating unit | French TECUMSEH compressor |
Refrigerant | R404A, R23 |
Air circulation | Centrifugal wind fan |
Safety device | Over-temperature protection; over-current protection; Refrigerant high-pressure protection; Earth leakage protection; |
Exterior material | Steel Plate with protective coating |
Interior material | SUS304 stainless steel |
Thermal insulation | Polyurethane foam |
Observation window | Interior lighting , double-layer thermo stability silicone rubber sealing |
Standard configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves |
Timing Function | 0.1~999.9 (S,M,H) settable |
Power Supply | 380V 50HZ |
Environmental conditional | 5ºC~+40 ºC ≤85% RH |
Key Points:
Test area:

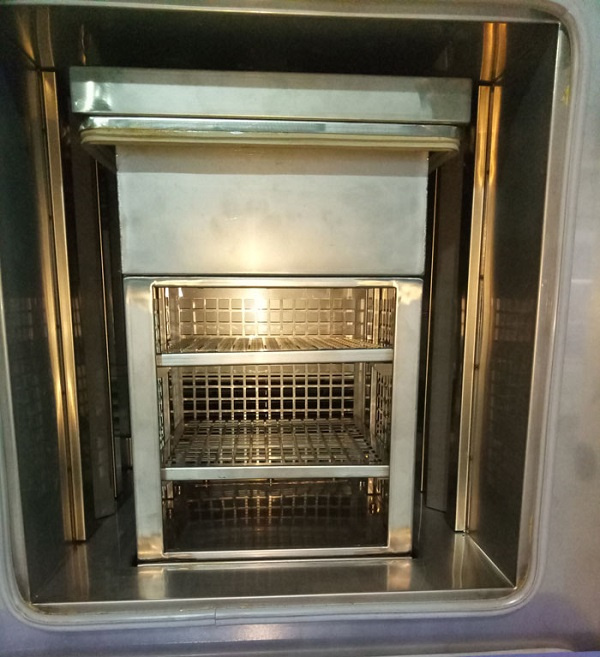

Test area is made of stainless-steel.
Stainless steel basket.
Control Panel:

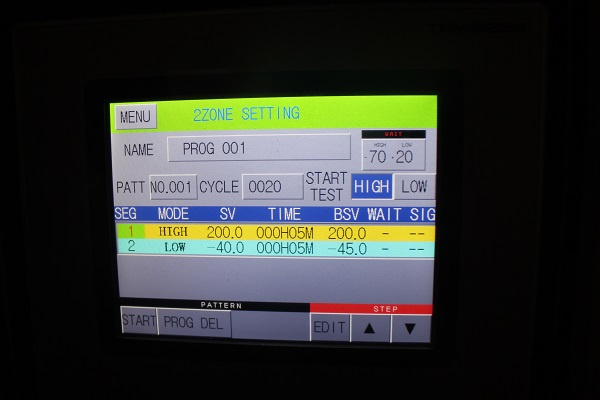

Programmable color display touch screen controller
Languages of Controller is English,
Setting mode: touching type
Program: 100 groups in 999 sections
R-485 interface
PC Link with software
Cooling system:
Cooling unit is French TECUMSEH compressor.
Environment friendly Refrigerant R404A & R23
Double-Stage refrigerating unit
Sensors:
Temperature sensor PT-100 A class
Resolution: temperature: ± 0.01 ºC
Safety protection:
Independent over-temperature protection,
Over-current protection
Refrigerant high-pressure protection switch
Over-current circuit breaker
Earth leakage protection and so on
Power supply and Wiring:
380V, 50 Hz 10% +/-
Three-phase five little system
![](/proimages/44f3j00BEyaIRsWskpY/lift-type-thermal-shock-laboratory-test-machine.jpg)
![](/proimages/44f3j00CayELuZIsbpR/lift-type-thermal-shock-laboratory-test-machine.jpg)
![](/proimages/44f3j00MTFQPHSgskzf/lift-type-thermal-shock-laboratory-test-machine.jpg)
![](/proimages/44f3j00BEOQIVSCgbuU/lift-type-thermal-shock-laboratory-test-machine.jpg)
![](/proimages/44f3j00BEntLcZKhbuf/lift-type-thermal-shock-laboratory-test-machine.jpg)
![](/proimages/44f3j00MTnQLCSEOorG/lift-type-thermal-shock-laboratory-test-machine.jpg)
