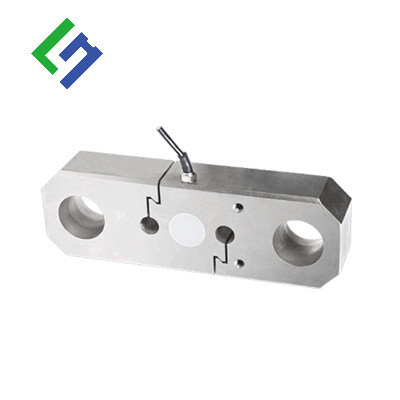

Lht-8 Crane Scale Load Cell for Tension Test

Name: Lht-8 Crane Scale Load Cell for Tension Test
Brand: all-electronics-online.com
SKU: 809347465
Availability: InStock
Rating: 4.6 (148 reviews)

Price:	US $ 105-650/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LHT-8
Sensitivity:	2.00+/-0.005
Nonlinearity:	+/-0.02%Fs
Hysteresis:	+/-0.02%Fs
Repeatability:	+/-0.01%Fs
Pattern:	Tension Load Cell
Material:	Alloy Steel

Product Description

1.Capacity:10t,12t,15t,17t,25t,35t,55t
2.Sensitivity:2±0.01mv/v
3.Material: Alloy steel

Typical plate-ring construction, good accuracy, easy to install, overload protection structure, high security and side force resistance.
Suitable for various crane, lifting machinery.

Specification The general data of Liheng as below, but we can design and manufacture various kinds of load cells to meet different customers' demands.
Characteristic	Typical plate-ring construction, good accuracy, easy to install, overload protection structure, high security and side force resistance.
Materials	Alloy steel
Suitable for	Various crane, lifting machinery
Capacity	10T~55T
Sensitivity	2.00± 0.010	MV/V
Nonlinearity	± 0.02	%FS
Hysteresis	± 0.02	%FS
Repeatability	± 0.01	%FS
Creep(30 minutes)	± 0.02	%FS
Zero balance	± 1.00	%FS
Temperature effect on zero	± 0.02	%FS/10º C
Temperature effect on output	± 0.02	%FS/10º C
Input resistance	385± 10	Ω
Output resistance	350± 3	Ω
Insulation resistance	≥ 5000	MΩ
Excitation voltage	10	V(DC/AC)
Compensated temperature range	-10~+50	º C
Operating temperature range	-20~+60	º C
Safe overload	120	%FS
cable	Φ 5.4X6	M
Cable color code	Input: red+ black- Output: green+ white-

About us
Liheng Electronic is the load cell manufacturer with 29 years experience.
We have our own engineers, can provide customized service with professional instruction and advice.
Main products:Various digital and analog weighing load cells.

Exhibition Show

Huzhou LihengElectronic Technology Co., Ltd owns a professional team which has been workingon load cell and force sensor for 10-30 years. The key members are experiencedon technical, design, manufacture and international marketing, which inheritsfrom the traditional process and design idea of 1970s.

So, Liheng, hasabundant ability to create its own brand on load cell and force sensor industry. We already have competitive experience to export Products overseas, with its raw material range of stainless steel, alloy steel and aluminum.

Besides, we are also capable to fulfill international approvals independently. Our team everhad smooth co-operations with NIST(U. S. ), NMI(The Netherlands), NMO(U. K. )

With the concept of "Quality Goes First", Liheng is qualified to provide its high precision sensors to clients. We adopt stable production process and quality control system, as well as bring in advanced manufacturing machines and accurate test equipment, to ensure our quality on each product.

Leading by our spirit - " Service to Clients, Service to Staff", we will use our innovative idea to create a new and reliable brand- Liheng.
