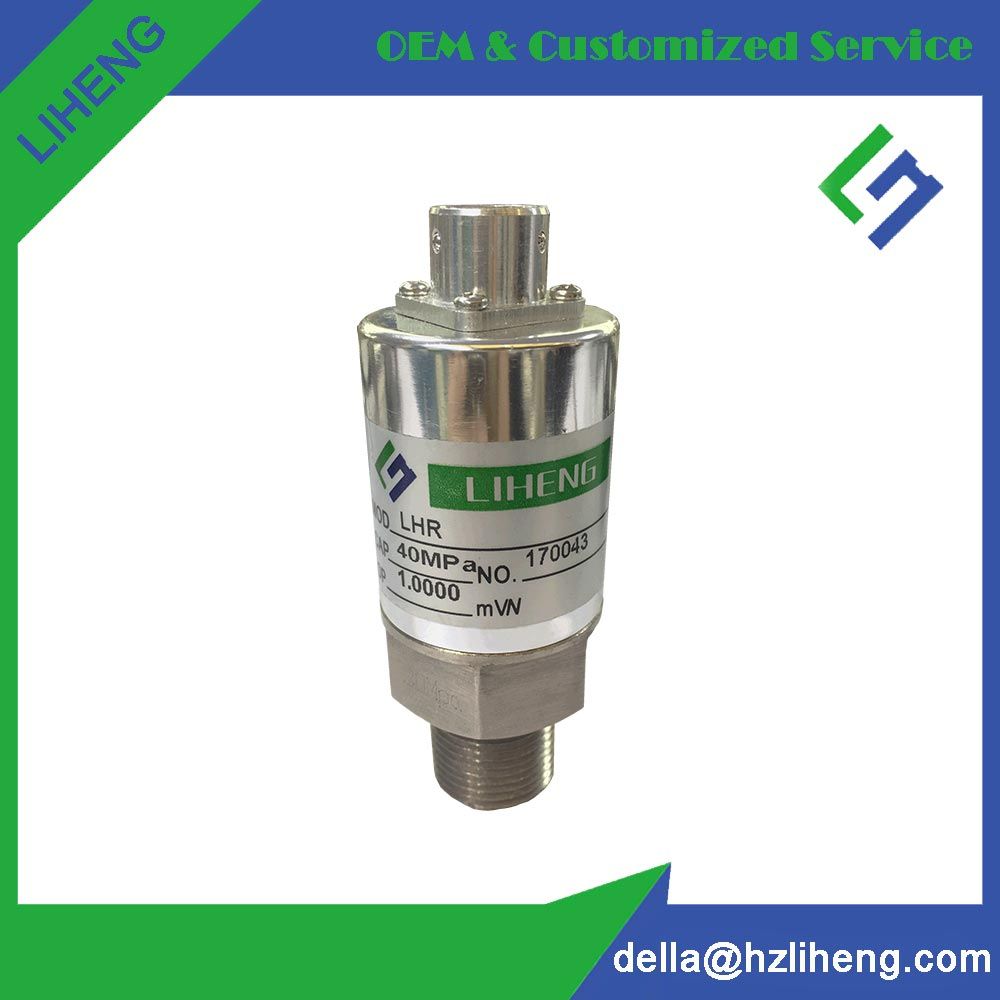

Lhr Pressure Load Cell for Gas and Liquid Pressure Test

Name: Lhr Pressure Load Cell for Gas and Liquid Pressure Test
Brand: all-electronics-online.com
SKU: 838179435
Availability: InStock
Rating: 4.6 (43 reviews)

Price:	US $ 35-55/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LHR
Sensitivity:	1.00+/-0.10
Nonlinearity:	+/-0.5%Fs
Hysteresis:	+/-0.5%Fs
Repeatability:	+/-0.3%Fs
Pattern:	Pressure Load Cell
Material:	Alloy or Stainless Steel
IP Rating:	IP67 or IP68

Product Description

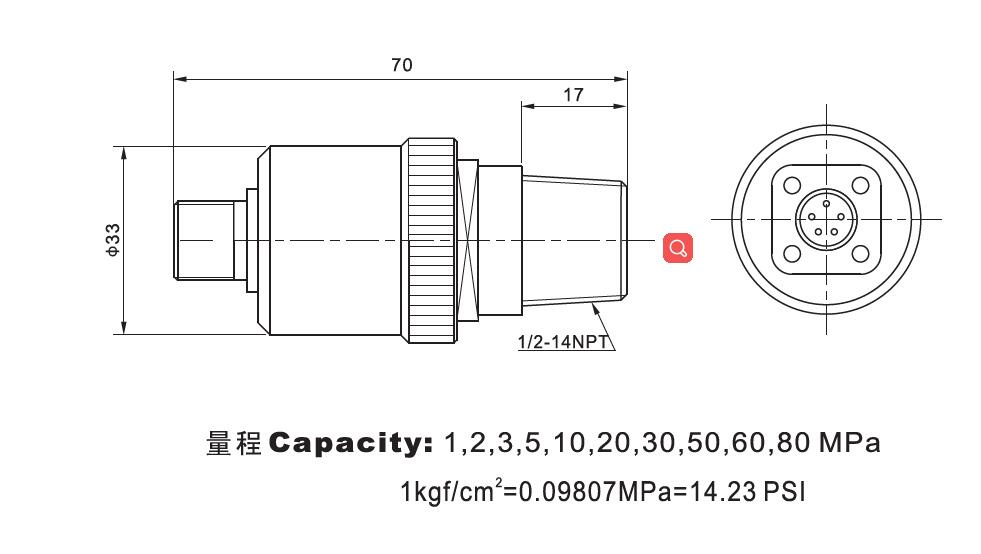

Specification (Capacity: 1MPa-80Mpa)
Rated Output	1.00±0.10	Output resistance(Ω)	350±3
Nonlinearity	±0.5%FS	Insulation resistance	≥5000MΩ
Hysteresis	±0.5%FS	Excitation voltage	10V(DC/AC)
Repeatability	±0.3%FS	Compensated temperature range	-10~+50ºC
Creep(30 minutes)	±0.5%FS	Operating temperature range	-20~+60ºC
Zero balance	±1.00%FS	Safe overload	120%FS
Temperature effect on zero	±0.5%FS/10ºC	Cable	Φ5.4*3m
Temperature effect on output	±0.5%FS/10ºC	Cable color code	Input: red+ black- Output: green+white-
Input resistance(Ω)	385±10	Cable color code	Input: red+ black- Output: green+white-

About us
Liheng Electronic is the load cell manufacturer with 29 years experience.
We have our own engineers, can provide customized service with professional instruction and advice.
Main products:Various digital and analog weighing load cells.

Exhibition Show

Huzhou LihengElectronic Technology Co., Ltd owns a professional team which has been workingon load cell and force sensor for 10-30 years. The key members are experiencedon technical, design, manufacture and international marketing, which inheritsfrom the traditional process and design idea of 1970s.

So, Liheng, hasabundant ability to create its own brand on load cell and force sensor industry. We already have competitive experience to export Products overseas, with its raw material range of stainless steel, alloy steel and aluminum.

Besides, we are also capable to fulfill international approvals independently. Our team everhad smooth co-operations with NIST(U. S. ), NMI(The Netherlands), NMO(U. K. )

With the concept of "Quality Goes First", Liheng is qualified to provide its high precision sensors to clients. We adopt stable production process and quality control system, as well as bring in advanced manufacturing machines and accurate test equipment, to ensure our quality on each product.

Leading by our spirit - " Service to Clients, Service to Staff", we will use our innovative idea to create a new and reliable brand- Liheng.
