| Prod Model: |
LDY2001 |
| Measurement Principle: |
Mie Scattering Theory |
| Size Range: |
0.1-600 Um |
| Standard: |
ISO 13320-1:1999 |
| The Number Of Detector Channel: |
66 |
| The Accuracy Of Error: |
<1% |
| Repeatability Error: |
<0.5% |
| Free Bubble: |
Free Bubble Design, No Bubble Interference Data Mo |
| Laser Parameters: |
Imported Fiber Output High Power Semiconductor Las |
| Operating Mode: |
Computer Operation |
| Test Speed: |
<1min / Time (Not Including Sample Dispersion Time |
Product Description
Description:

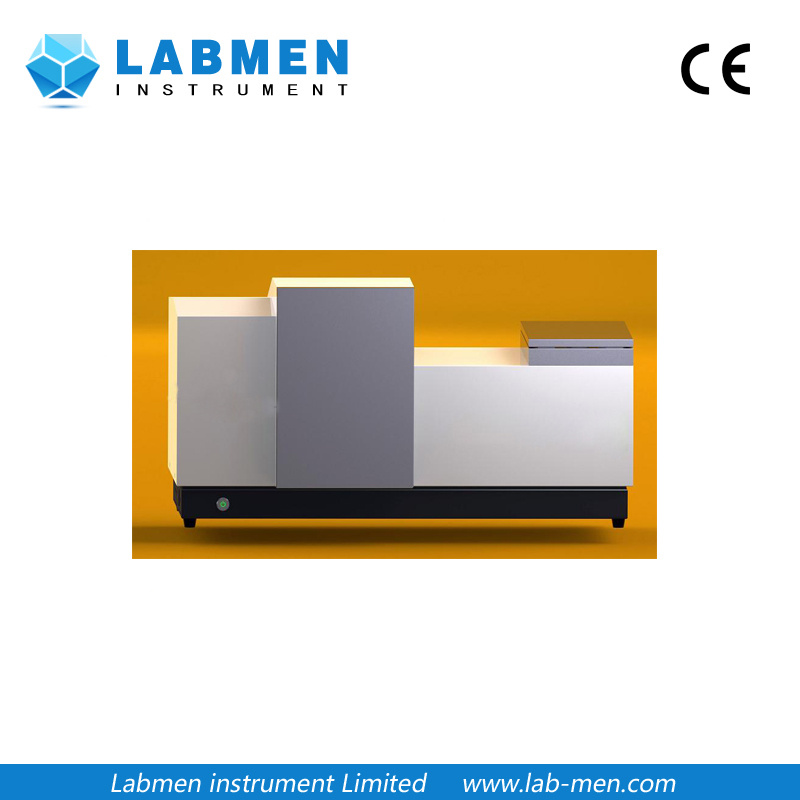

LDY2001 is a wet basic laser particle size analyzer, using the most advanced Mie-type scattering principle and convergence of optical Fourier transform optical path. High-density probe and full-scale seamless interface test method to ensure the accuracy and repeatability of test results. Unique wet circulation system to ensure that the particles to ensure that the process of testing the phenomenon of non-particle deposition, the test no liquid waste accumulation after the phenomenon to ensure a second test accuracy, the test results more realistic and reliable; the same time LDY2001 joined the ultrasound Anti-dry technology, ultrasonic power adjustable technology, adjustable cycle speed, fiber output semiconductor lasers and other major improvements.
Application:
LDY2001 is widely used in cement, ceramics, pharmaceuticals, paints, dyes, pigments, fillers, chemical products, catalysts, drilling mud, abrasives, lubricants, pulverized coal, dust, cells, bacteria, Pesticides, explosives, graphite, photosensitive materials, fuel, ink, metal and non-metallic powder, calcium carbonate, kaolin, coal slurry, aluminum paste and other powder materials.
Characteristics:
Advanced optical design: LDY2001 using convergent light Fourier transform test technology to ensure the shortest focal length to obtain the maximum range, effectively improve the resolution of the instrument; upgrade unique high-density detection unit, so LDY2001 has a super small Particle testing capabilities, high-density detection unit using LDY2001 has a strong full-range seamless test capability.
Multi-range options: LDY2001 has a variety of range for customers to choose, to meet your test requirements to avoid excessive waste, LDY2001 0.1μm ~ 260μm, 0.1μm ~ 600μm, 0.1μm ~ 800μm, rich range There is always one option for you (all ranges are full scale seamlessly). (If necessary, you can install 0.01 modules)
Imported semiconductor lasers: (optional) LDY2001 uses imported high-power fiber output semiconductor lasers, laser life of 25,000 hours or more.
Dust-proof, shockproof design: The whole instrument is sealed design, greatly improve the life of internal components, while the optical part of the secondary seal design to ensure that the state of the instrument part of the optical path will not be contaminated dust, greatly improved The instrument life. Unique suspension structure can effectively avoid external vibration on the instrument interference, the results of the test more stable and reliable.
Unique wet circulation dispersion system: including anti-dry ultrasonic disperser, centrifugal circulation pump, automatic water system, automatic drainage and overflow system, applicable to all samples, to ensure the sample fully dispersed to ensure the accuracy of the test and repeat . The LDY2001 has a fully automatic test function. All you need to do is to put the sample into the dispersion tank at the prompt of the instrument. The remaining process instruments will be completed automatically.
Strong anti-corrosion design: according to the actual needs of customers can be equipped with acid, alkali, oil (with all solvent oil), resistant to organic solvents (such as acetone, phenol, hexane and all organic solvents).
Automatic calibration of the optical path: Newest developed version of labmen optical path calibration system to achieve the minimum mobile step of 1 micron accuracy to ensure that the accuracy of the case can quickly adjust the variable speed to ensure accurate within 15 seconds to complete the optical path of automatic adjustment Work, our products are the most high-end particle size analyzer configuration.
Unique micro circulation system: the entire circulatory system optimized design, dispersion medium is greater than 120 milliliters can be recycled to the test, really reached the micro-cycle testing; all joints with a quick plug screw design, a short period of time can replace all the pipes; The optimized design ensures that there is no waste night residue after drainage, which ensures the accuracy of the next test results.
Bubble-free design: a new design so that the entire test will not bubble into the test sample window, to avoid the interference of air bubbles to ensure the accuracy of the test data.
No residual sample design: the instrument pipe and drainage structure was optimized design, equipment, piping, no residual fluid within the pump to avoid the next test data.
Sample window quick change device: a new design of the sample window quick change device, the sample window replacement is more convenient.
Technical parameter:
| Model | LDY2001 |
| Standard | ISO 13320-1:1999;GB/T19077.1-2008 |
| Test range | 0.1μm -600μm |
| The number of detector channel | 66 |
| The accuracy of error | <1%(The national standard sample D50) |
| Repeatability error | <0.5%(The national standard sample D50) |
| Free bubble | Free bubble design, no bubble interference data more accurate |
| Misoperation protection | Instrument has misuse self-protection function,
the instrument does not respond to misuse |
| Laser parameters | Imported fiber output high power semiconductor lasers
λ= 650nm, p>10mW |
| Dispersion method | Ultrasound | frequency:f=40KHz, power:p=80W, Time: adjustable; with anti-dry-burning ultrasound |
| Circulation, stirring | Circulation mixing integrated design, speed:100-33950rpm,Speed adjustable |
| Circulation flow | Rated flow:0-10L/min Adjustable rated power:25W |
| Sample cell | Self-designed boiling sample pool, better dispersion,
capacity:190-600mL Can be a normal test |
| Micro-injection | Instrument can be equipped with micro-automatic test device,
10 ml to cycle test (optional) |
| Software features | Analysis Mode | Including the free distribution, T distribution and logarithmic normal distribution, according to the purpose of statistical models, etc., to meet the different sectors of the measured sample particle size statistical methods of different requirements |
| Statistical methods | Volume distribution and quantity distribution, in order to meet the different industries for different statistical methods of particle size distribution |
| Statistical comparison | Can be used for statistical analysis of multiple test results, can significantly compare the different batches of samples, before and after processing samples and different test results at different times, the quality of industrial raw materials has a strong practical significance |
| DIY display templates | User-defined data to be displayed, according to the percentage of particle size, according to the percentage of grain size or the percentage of particle size interval to meet the different industries on the granularity of the characterization of the test. Span, consistency, interval accumulation
and so on |
| testing report | Test reports can export Word, Excel, pictures (Bmp) and text (Text) and other forms of documentation to meet in any case to view test reports and research articles cited in the test results |
| Multi-language support | Chinese and English language interface support, but also according to user requirements embedded in other language interface. |
| Intelligent operation mode | Truly automatic unattended operation, no human factor interference, you just follow the prompts to join the sample can be tested, the test results reproducible better. |
| Operating mode | Computer operation |
| Test speed | <1min / time (not including sample dispersion time) |
| Dimension | 980mm*410mm*450mm |
| Weight | 35Kg |
