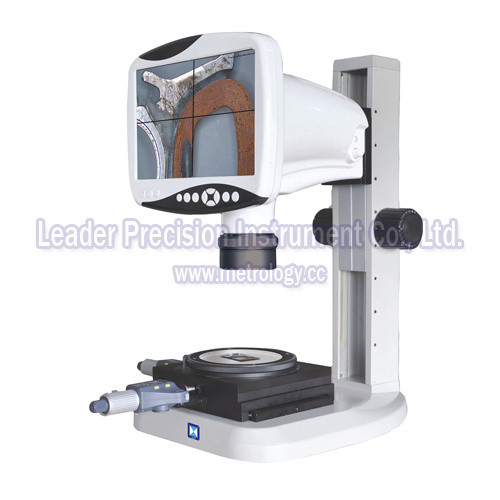

LCD Microscope Unit for Semi Conductor Inspection (LD-250)

LCD Microscope Unit for Semi Conductor Inspection (LD-250)
Price: US $ 1000-2000/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: LD-250
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Stereoscopic Effects: Yes
Name: LCD Microscope Unit for Semi Conductor Inspection
Model: Ld-250
Total Magnification: 18.2-117X
Structure: Reflector Telescope
Lens Type: Prime Lens
Lens: Glass
Objective Aperture: >50mm
Focusing Type: Center Focusing
Aperture: <50mm
Type: Video
Mobility: Desktop
Shape: Rectangular Prism
Principle: Optics
Magnification: 18.2X-117X
Number Of Cylinder: Video

Product Description

Application:
LCD microscope is widely used to inspect and measure in product assembly, research and teaching fields.

Feature:
9 Inch HD screen, with real-time display
Built-in 5.0 Mega pixels CCD camera for image and video
HDMI Multimedia Interface
Cross hair for measurement

Total magnification: 18.2-117X
Valid pixel: 5.0 Mega pixels
Display: 9 Inch LCD screen
Display resolution: 1280*800
Video output: Synchronized display
Measurement: Cross hair
Digital video and sound interface: HDMI
Memory card: Support SD
Objective: Zoom lens 0.7X-4.5X
Illumination: LED cold ring light
Stage travel: 30mm*30mm
Load: 5kg
Power supply: 5V
Language: English, German, French, Japanese, Russian, Spanish, Korean, Arabic, Latin

Standard Accessories
Main unit: 1pc
AC/DC adapter: 1pcs
Software disc: 1pc
2G SD card: 1pc
USB cable: 1pc
Anti-dust cover: 1pcs

Optional accessories:
0.5x auxiliary lens: 1pcs
2x auxiliary lens: 1pcs
Dongguan Leader Precision Instrument Co., Ltd. is a hi-tech enterprise specializing in R&D, production and sales of optics, machinery and electronic precision measuring and testing instruments, our range includes: Video measuring system, profile projector, coordinate measuring machine, measuring microscope, linear scale and digital readout, video measuring machine, optical comparator, VMM, VMS, vision measuring machine, non-contact 2D video measuring system, Hardness tester, and also stereo microscope, biological microscope, LCD inspection microscope, metallographic microscope etc which are widely used in metrological, measuring, inspecting, testing and reverse engineering fields.

Our continuous excellent products supply sustainable value for our large client word-wide. With powerful strength and good reputation, our products have been exported to more than 30 countries. We are committed to raise the standards of our products and improve the services. We are dedicated to ensure superior products, timely delivery, competitive price and excellent after-sale service

We have a proficient and strong workforce, comprising of technically skilled professionals, who have rich experience in dimension measurement and data analysis in machinery, mould, electronic, aviation, automobile, plastic, gear, PCB circuit board, spring, connector, semiconductor, precision parts and so on.

We guarantee quality and high performance of our products and offer excellent services. Our continuous effort towards producing superior quality products and perfection has helped us to win the trust, confidence and assurance of the customers from all over the globe. Our products have received a great response and recognition in the customers. You can depend on our products for superiority, reliability and durability.
