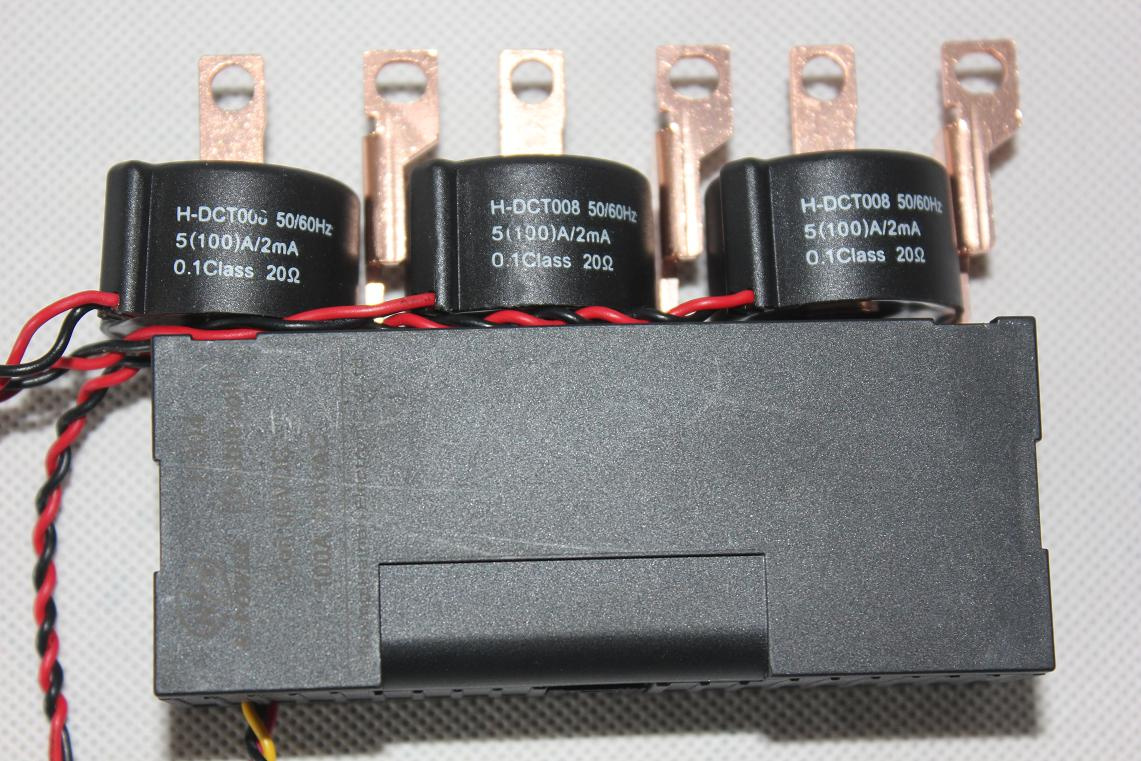

Lachting Relay with 100A to India.

Name: Lachting Relay with 100A to India.
Brand: all-electronics-online.com
SKU: 794734825
Availability: InStock
Rating: 4.7 (31 reviews)

Price:	US $ 10.5-12.1/Piece
Min Order:	300/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	H304
Model:	H304
Max Switching Current:	100A
Max Switching Voltage:	110VDC/250VAC
Coil Number:	Double
Coil Power:	Single 1.0W, Double 2.0W
MFG:	Jiaxing Haihan Electron Co., Ltd
With CT:	Yes or Not(Customzied)
With Shunt:	Yes or Not(Customized)
Use:	Three Phase Electronice Energy Meter
Manufacturer:	Jiaxing Haihan Electron Co., Ltd

Product Description

1, Latching Relay

1), 100A switching capability.

2), Low coil consumption and ultra-low temperature rise.

3), Low contact resistance.

4), High resistance to shocks and vibrations.

5), Outline dimensions: 52.0x43.0x21.0mm.

6), Custom-made busbar configuration.

7), UC3 certified (IEC62055-31).

2, Applications
1), Electrical meter

2), Automatic meter reading(AMR)

3), All kinds of household electric applications and automatic control devices etc.

3, Funature.
1), Compact configuration

2), Small size

3), High switching capacity

4), Strong anti-shock and good vibration resistance.

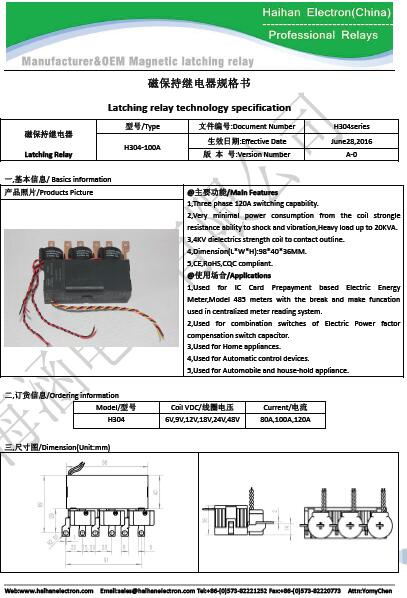

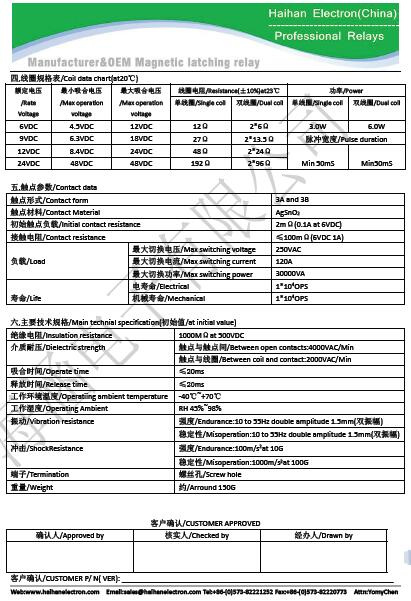

4,Detail technial specification as following up
