Kvvrp 2X1.5 4X1.0 12X0.75mm2 Screened Flexible Control Cable
Price: |
US $ 0.1-30/Meter |
Min Order: |
100/Meter |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
KVVRP 2X1.5 4X1.0 12X0.75MM2 screened flexible con |
Product Name: |
Kyjvrp14*0.75 Control Cable Wire/ Kyjvrp2*0.75 Fac |
Rated Voltage: |
450/750 V,300/500V/,600/1000V |
Conductor: |
Copper |
Insulation: |
XLPE/PVC |
Sheath: |
PVC/PE |
Core Number: |
1 2 3 4 5 6 7 8 9 10 |
Color Color: |
Red, Yellow, Blue, Green or as Your Requirement |
Origine: |
Shandong, China |
Packaging: |
Wooden Drum |
Shipping: |
3-10 Working Days |
Application: |
Power Station |
Voltage: |
Low and Medium Voltage Cable |
Current: |
DC & AC |
Insulation Material: |
XLPE |
Certification: |
VDE |
Model: |
Control Cable |
Brand: |
Chan Qing Teng |
Product Description
KVVRP 2X1.5 4X1.0 12X0.75MM2 screened flexible control cable
Application
For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750V.
Type, designation and applicationType | Designation | Main applications |
KVV/KYJV | Copper conductor PVC/XLPE insulated PVC sheathed control cable | For fixed-laying indoors, in cable duct or conduit |
KVVP/KYJVP | Copper conductor XLPE/PVC insulated PVC sheathed braid screened control cable | For fixed-laying indoors, in cable duct or conduit upon screen requirement |
KVVP2/KYJVP2 | Copper conductor PVC/XLPE insulated PVC sheathed copper tape screened control cable | For fixed-laying indoors, in cable duct or conduit upon screen requirement |
KVV22/KYJV22 | Copper conductor PVC/XLPE insulated PVC sheathed steel tape armored control cable | For fixed-laying indoors, in cable duct direct-buried, able to bear larger mechanical forces |
KVV32/KYJV32 | Copper conductor PVC/XLPE insulated PVC sheathed fine steel wire armored control cable | For fixed-laying indoors, in cable duct, conduit or well, able to bear larger mechanical forces |
KVVR/KYJVR | Copper conductor PVC/XLPE insulated PVC sheathed control flexible cable | For laying indoors upon moveable requirement |
KVVRP/KYJVRP | Copper conductor PVC/XLPE insulated PVC sheathed braid screened control flexible cable | For laying indoors upon moveable and screen requirement |
Type rangeType | Rated voltage V | Nominal cross-section of conductor(mm2) |
0.5 | 0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | 10 |
No. of cores |
KVV/KYJV KVVP/KYJVP | 450/750 | | 2~61 | 2~14 | 2~10 |
KVVP2/KYJVP2 | | 4~61 | 4~14 | 4~10 |
KVV22/KYJV22 | | 7~61 | 4~61 | 4~14 | 4~10 |
KVV32/KYJV32 | | 19~61 | 7~61 | 4~14 | 4~10 |
KVVR/KYJVR | 4~61 | | |
KVVRP/KYJVRP | 4~61 | 4~48 | | |
Calculated Data No.×Nom. cross-section mm2 | Largest diameter of cables | Calculated weight of cables(kg/km) |
KVV | KVVP | KVVP2 | KVV22 | KVV32 | KVVR | KVVRP | KVV | KVVP | KVVP2 | KVV22 | KVV32 | KVVR | KVVRP |
2×0.75 | 8.0 | 9.3 | - | - | - | - | - | 72 | 114 | - | - | - | - | - |
2×1.0 | 8.3 | 9.6 | - | - | - | - | - | 81 | 124 | - | - | - | - | - |
2×1.5 | 9.3 | 10.6 | - | - | - | - | - | 109 | 157 | - | - | - | - | - |
2×2.5 | 10.8 | 11.9 | - | - | - | - | - | 154 | 201 | - | - | - | - | - |
2×4 | 11.8 | 13.9 | - | - | - | - | - | 187 | 346 | - | - | - | - | - |
2×6 | 13.0 | 15.0 | - | - | - | - | - | 241 | 351 | - | - | - | - | - |
2×10 | 16.3 | 17.8 | - | - | - | - | - | 391 | 502 | - | - | - | - | - |
2×0.75 | 8.3 | 9.6 | - | - | - | - | - | 87 | 130 | - | - | - | - | - |
3×1.0 | 8.8 | 10.0 | - | - | - | - | - | 98 | 143 | - | - | - | - | - |
3×1.5 | 9.9 | 11.1 | - | - | - | - | - | 127 | 177 | - | - | - | - | - |
3×2.5 | 11.3 | 12.6 | - | - | - | - | - | 181 | 238 | - | - | - | - | - |
3×4 | 12.5 | 14.5 | - | - | - | - | - | 234 | 347 | - | - | - | - | - |
3×6 | 13.3 | 15.8 | - | - | - | - | - | 329 | 470 | - | - | - | - | - |
3×10 | 17.3 | 18.7 | - | - | - | - | - | 511 | 632 | - | - | - | - | - |
4×0.5 | - | - | - | - | - | 8.7 | 9.9 | | 153 | - | - | - | 96 | 141 |
4×0.75 | 9.1 | 10.3 | 9.2 | - | - | 9.3 | 10.5 | 104 | 163 | 144 | - | - | 114 | 164 |
4×1.0 | 9.5 | 10.7 | 9.6 | - | - | 9.6 | 10.8 | 119 | 203 | 153 | - | - | 123 | 179 |
4×1.5 | 10.7 | 11.9 | 10.7 | - | - | 10.9 | 12.1 | 156 | 330 | 192 | - | - | 158 | 210 |
4×2.5 | 12.4 | 14.4 | 12.9 | - | - | 12.5 | 14.6 | 226 | 436 | 276 | - | - | 228 | 336 |
4×4 | 14.3 | 15.7 | 14.0 | 16.5 | 19.6 | - | - | 315 | 530 | 367 | 505 | 856 | - | - |
4×6 | 15.6 | 17.0 | 15.2 | 17.8 | 20.2 | - | - | 413 | 768 | 467 | 619 | 995 | - | - |
4×10 | 18.9 | 20.8 | 19.8 | 22.4 | 25.8 | - | - | 644 | - | 728 | 947 | 1584 | - | - |
5×0.5 | - | - | - | - | - | 9.3 | 10.5 | - | 162 | | - | - | 108 | 164 |
5×0.75 | 9.8 | 11.0 | 9.9 | - | - | 10.0 | 11.2 | 119 | 193 | 152 | - | - | 122 | 174 |
5×1.0 | 10.2 | 11.4 | 10.3 | - | - | 10.4 | 11.6 | 142 | 248 | 174 | - | - | 148 | 208 |
5×1.5 | 11.6 | 12.8 | 12.23 | - | - | 11.9 | 13.1 | 190 | 390 | 226 | - | - | 200 | 267 |
5×2.5 | 14.1 | 15.5 | 13.91 | - | - | 14.3 | 15.7 | 290 | 501 | 325 | - | - | 296 | 399 |
5×3 | 15.5 | 16.9 | 15.18 | 17.6 | 20.8 | - | - | 383 | 626 | 427 | 586 | 962 | - | - |
5×6 | 17.0 | 18.4 | 16.55 | 19.5 | 22.2 | - | - | 505 | | 567 | 737 | 1130 | - | - |
5×10 | 21.8 | 22.6 | 22.2 | 24.1 | 27.6 | - | - | 830 | 986 | 924 | 1125 | 1814 | - | - |
7×0.5 | - | - | - | - | - | 10.0 | 11.2 | - | - | - | - | - | 118 | 164 |
7×0.75 | 10.5 | 11.7 | 10.5 | 13.7 | - | 10.8 | 12.0 | 146 | 202 | 178 | 317 | - | 149 | 218 |
7×1.0 | 11.0 | 12.2 | 11.0 | 14.2 | - | 11.2 | 12.4 | 169 | 216 | 209 | 354 | - | 172 | 224 |
7×1.5 | 12.5 | 14.4 | 13.1 | 15.6 | 17.6 | 12.8 | 14.7 | 225 | 330 | 289 | 425 | 712 | 233 | 338 |
7×2.5 | 15.3 | 16.7 | 14.9 | 17.5 | 20.6 | 15.4 | 16.8 | 353 | 471 | 398 | 554 | 923 | 359 | 482 |
7×4 | 16.8 | 18.2 | 16.3 | 18.9 | 22.0 | - | - | 473 | 601 | 527 | 701 | 1108 | - | - |
7×6 | 18.5 | 19.9 | 17.9 | 20.9 | 24.3 | - | - | 652 | 789 | 717 | 900 | 1484 | - | - |
7×10 | 23.6 | 24.2 | 24.1 | 28.0 | 29.5 | - | - | 1082 | 1216 | 1145 | 1397 | 2140 | - | - |
8×0.5 | - | - | - | - | - | 10.5 | 11.7 | - | - | - | - | - | 126 | 174 |
8×0.75 | 11.0 | 12.2 | 11.7 | 14.3 | - | 11.3 | 12.5 | 166 | 217 | 206 | 344 | - | 174 | 229 |
8×1.0 | 11.6 | 13.5 | 12.2 | 14.8 | - | 11.8 | 13.6 | 193 | 243 | 230 | 378 | - | 196 | 254 |
8×1.5 | 13.9 | 15.3 | 13.7 | 16.3 | 19.4 | 14.2 | 15.6 | 277 | 387 | 312 | 467 | 811 | 285 | 393 |
8×2.5 | 16.1 | 17.5 | 15.7 | 18.3 | 21.4 | 16.3 | 17.7 | 405 | 524 | 486 | 614 | 1002 | 412 | 536 |
8×4 | 17.8 | 19.6 | 17.7 | 20.2 | 23.7 | - | - | 545 | 681 | 589 | 789 | 1354 | - | - |
8×6 | 20.1 | 21.5 | 19.3 | 21.9 | 25.4 | - | - | 748 | 898 | 792 | 989 | 160 | - | - |
8×10 | 25.1 | 26.1 | 25.5 | 27.5 | 30.9 | - | - | 1210 | 1386 | 1236 | 1542 | 2332 | - | - |
10×0.5 | - | - | - | - | - | 12.2 | 14.1 | - | - | - | - | - | 147 | 194 |
10×0.75 | 12.9 | 15.0 | 13.5 | 16.0 | - | 13.3 | 15.3 | 205 | 300 | 214 | - | - | 216 | 310 |
10×1.0 | 14.3 | 15.7 | 14.1 | 16.7 | - | 14.5 | 15.9 | 256 | 368 | 300 | 449 | - | 269 | 386 |
10×1.5 | 16.3 | 17.7 | 16.0 | 18.5 | 21.6 | 16.7 | 18.1 | 340 | 456 | 387 | 558 | 957 | 352 | 472 |
10×2.5 | 19.1 | 20.5 | 18.9 | 21.5 | 24.9 | 19.3 | 20.7 | 500 | 636 | 572 | 753 | 1362 | 516 | 647 |
10×4 | 22.1 | 22.9 | 21.4 | 23.3 | 26.8 | - | - | 721 | 863 | 787 | 956 | 1618 | - | - |
10×6 | 24.4 | 25.4 | 23.4 | 25.4 | 28.8 | - | - | 956 | 1108 | 992 | 1203 | 1931 | - | - |
10×10 | 29.9 | 30.9 | 30.3 | 33.0 | 37.9 | - | - | 1523 | 1648 | 1590 | - | 3160 | - | - |
12×0.5 | - | - | - | - | - | 12.6 | 14.4 | - | - | - | - | - | 176 | 224 |
12×0.75 | 13.9 | 15.3 | 13.8 | 16.4 | - | 14.3 | 15.7 | 240 | 345 | 301 | - | - | 252 | 356 |
12×1.0 | 14.7 | 16.1 | 14.5 | 17.0 | - | 14.9 | 16.3 | 289 | 396 | 312 | 485 | - | 295 | 403 |
12×1.5 | 16.7 | 18.1 | 16.4 | 19.0 | 22.1 | 17.2 | 18.6 | 386 | 498 | 423 | 609 | 1018 | 394 | 512 |
12×2.5 | 19.6 | 21.5 | 19.5 | 22.0 | 25.5 | 20.5 | 21.7 | 572 | 703 | 654 | 829 | 1455 | 581 | 712 |
12×4 | 22.8 | 23.6 | 22.0 | 24.0 | 27.4 | - | - | 825 | 970 | 887 | 1061 | 1744 | - | - |
12×6 | 25.2 | 26.2 | 24.1 | 26.1 | 29.5 | - | - | 1102 | 1276 | 1189 | 1356 | 2100 | - | - |
14×0.5 | - | - | - | - | - | 13.2 | 15.2 | - | - | - | - | - | 198 | 246 |
14×0.75 | 14.6 | 16.0 | 14.4 | 17.0 | - | 15.0 | 16.4 | 285 | 396 | 312 | - | - | 296 | 408 |
14×1.0 | 15.4 | 16.8 | 15.1 | 17.7 | - | 15.6 | 17.0 | 321 | 443 | 398 | 530 | - | 333 | 457 |
14×1.5 | 17.5 | 18.9 | 17.2 | 20.2 | 23.6 | 18.0 | 19.7 | 432 | 550 | 492 | 684 | 1248 | 445 | 564 |
14×2.5 | 21.2 | 22.5 | 20.4 | 22.9 | 26.0 | 21.5 | 22.7 | 670 | 800 | 721 | 913 | 1563 | 683 | 814 |
14×4 | 23.9 | 24.7 | 23.0 | 25.0 | 28.5 | - | - | 929 | 1078 | 973 | 1171 | 1888 | - | - |
14×6 | 26.4 | 27.4 | 25.3 | 27.2 | 30.7 | - | - | 1246 | 1300 | 1203 | 1508 | 2290 | - | - |
16×0.5 | - | - | - | - | - | 14.5 | 15.9 | - | - | - | - | - | 246 | 291 |
16×0.75 | 15.3 | 16.7 | 15.1 | 17.6 | - | 15.7 | 17.1 | 312 | 423 | 400 | - | - | 323 | 441 |
16×1.0 | 16.1 | 17.5 | 15.8 | 18.4 | - | 16.4 | 17.8 | 359 | 469 | 389 | 576 | - | 373 | 487 |
16×1.5 | 18.4 | 19.8 | 18.0 | 21.0 | 24.5 | 18.9 | 20.3 | 485 | 596 | 489 | 745 | 1337 | 496 | 614 |
16×2.5 | 22.8 | 23.6 | 22.0 | 23.9 | 27.4 | 23.0 | 23.8 | 775 | 880 | 789 | 1005 | 1687 | 787 | 892 |
19×0.5 | - | - | - | - | - | 15.2 | 16.6 | - | - | - | - | - | 287 | 346 |
19×0.75 | 16.0 | 17.4 | 15.8 | 18.3 | 21.4 | 16.5 | 17.9 | 347 | 456 | 386 | - | 637 | 359 | 473 |
19×1.0 | 16.9 | 18.3 | 16.6 | 19.5 | 22.2 | 17.2 | 18.6 | 408 | 517 | 413 | 645 | 1039 | 421 | 529 |
19×1.5 | 19.4 | 21.2 | 19.3 | 21.9 | 25.4 | 20.5 | 21.7 | 533 | 674 | 612 | 824 | 1442 | 564 | 696 |
19×2.5 | 23.9 | 24.7 | 23.0 | 25.0 | 28.5 | 24.2 | 25.0 | 1053 | 1053 | 986 | 1119 | 1834 | 898 | 1069 |
24×0.5 | - | - | - | - | - | 17.4 | 18.8 | - | - | - | - | - | 327 | 396 |
24×0.75 | 18.4 | 19.8 | 18.0 | 21.0 | 24.5 | 19.0 | 20.4 | 400 | 523 | 476 | - | 1021 | 414 | 536 |
24×1.0 | 19.5 | 21.4 | 19.4 | 22.0 | 25.5 | 19.8 | 21.7 | 510 | 634 | 580 | 776 | 1401 | 516 | 656 |
24×1.5 | 23.5 | 24.3 | 22.9 | 24.8 | 28.3 | 24.2 | 25.0 | 744 | 866 | 792 | 1001 | 1709 | 759 | 884 |
24×2.5 | 27.7 | 28.7 | 26.6 | 28.5 | 32.0 | 28.1 | 29.1 | 1110 | 1258 | 1179 | 1376 | 2199 | 1128 | 1279 |
27×0.5 | - | - | - | - | - | 17.8 | 19.2 | - | - | - | - | - | 359 | 489 |
27×0.75 | 18.8 | 20.2 | 18.8 | 21.4 | 24.8 | 19.4 | 20.8 | 476 | 600 | 503 | - | 1180 | 492 | 634 |
27×1.0 | 20.5 | 21.8 | 19.8 | 22.4 | 25.8 | 20.8 | 22.1 | 578 | 713 | 612 | 821 | 1458 | 596 | 737 |
27×1.5 | 24.0 | 24.8 | 23.3 | 25.3 | 28.7 | 24.6 | 25.4 | 807 | 957 | 886 | 1063 | 1788 | 824 | 983 |
27×2.5 | 28.3 | 29.3 | 27.1 | 29.1 | 32.5 | 28.6 | 29.6 | 1209 | 1359 | 1286 | 1480 | 2316 | 1225 | 1378 |
30×0.5 | - | - | - | - | - | 18.4 | 19.8 | - | - | - | - | - | 396 | 554 |
30×0.75 | 19.4 | 21.3 | 19.4 | 22.0 | 25.4 | 20.6 | 21.9 | 523 | 635 | 600 | - | 1240 | 539 | 658 |
30×1.0 | 21.6 | 22.4 | 20.5 | 23.0 | 26.5 | 22.0 | 22.8 | 651 | 786 | 725 | 883 | 1536 | 667 | 799 |
30×1.5 | 24.8 | 25.8 | 24.1 | 26.0 | 29.5 | 25.5 | 26.5 | 882 | 1093 | 891 | 1150 | 1893 | 897 | 1123 |
30×2.5 | 29.3 | 30.3 | 28.1 | 30.8 | 35.6 | 29.7 | 30.7 | 1327 | 1473 | 1384 | 1808 | 2851 | 1343 | 1496 |
37×0.5 | - | - | - | - | - | 19.7 | 21.5 | - | - | - | - | - | 470 | 594 |
37×0.75 | 21.9 | 22.7 | 21.4 | 23.3 | 26.8 | 22.5 | 23.3 | 600 | 704 | 588 | - | 1398 | 616 | 731 |
37×1.0 | 23.2 | 24.0 | 22.5 | 24.4 | 27.9 | 23.5 | 24.3 | 771 | 912 | 887 | 1013 | 1710 | 792 | 945 |
37×1.5 | 26.4 | 27.6 | 25.8 | 27.7 | 31.2 | 27.4 | 28.4 | 1050 | 1196 | 1105 | 1331 | 2127 | 1072 | 1224 |
37×2.5 | 31.5 | 33.2 | 30.8 | 33.5 | 37.6 | 31.9 | 33.6 | 1591 | 1741 | 1681 | 2139 | 3213 | 1612 | 1768 |
44×0.5 | - | - | - | - | - | 22.4 | 23.8 | - | - | - | - | - | 540 | 620 |
44×0.75 | 24.3 | 25.3 | 23.7 | 25.6 | 29.1 | 25.1 | 26.1 | 745 | 887 | 809 | - | 1576 | 764 | 908 |
44×1.0 | 25.8 | 27.0 | 24.9 | 26.9 | 30.4 | 26.2 | 27.2 | 915 | 1035 | 987 | 1184 | 1952 | 938 | 1076 |
44×1.5 | 29.7 | 30.7 | 28.7 | 32.1 | 36.2 | 30.6 | 31.6 | 1251 | 1394 | 1315 | 1817 | 2838 | 1274 | 1421 |
44×2.5 | 36.0 | 37.2 | 34.3 | 37.5 | 41.2 | 36.4 | 37.6 | 1950 | 2100 | 2018 | 2532 | 3699 | 1974 | 2128 |
48×0.5 | - | - | - | - | - | 23.3 | 24.1 | - | - | - | - | - | 598 | 686 |
48×0.75 | 24.7 | 25.7 | 24.0 | 26.0 | 29.4 | 25.4 | 26.4 | 832 | 927 | 887 | - | 1789 | 854 | 958 |
48×1.0 | 26.2 | 27.2 | 25.3 | 27.3 | 30.7 | 26.6 | 27.6 | 967 | 1097 | 1023 | 1236 | 2018 | 986 | 1118 |
48×1.5 | 30.2 | 31.2 | 29.2 | 32.6 | 36.7 | 31.1 | 32.1 | 1326 | 1487 | 1397 | 1890 | 2935 | 1352 | 1508 |
48×2.5 | 36.5 | 37.2 | 34.9 | 38.1 | 41.6 | 37.0 | 38.2 | 2070 | 2147 | 2097 | 2662 | 3843 | 2094 | 2178 |
52×0.5 | - | - | - | - | - | 23.9 | 24.7 | - | - | - | - | - | 634 | 763 |
52×0.75 | 25.3 | 26.3 | 24.6 | 26.6 | 30.0 | 26.1 | 27.1 | 898 | 1009 | 935 | | 1920 | 912 | 1034 |
52×1.0 | 26.9 | 27.9 | 26.0 | 27.9 | 31.4 | 27.3 | 28.3 | 1035 | 1187 | 1113 | 1305 | 2109 | 1056 | 1214 |
52×1.5 | 31.0 | 32.6 | 30.6 | 33.3 | 36.3 | 31.9 | - | 1420 | 1578 | 1493 | 1997 | 3068 | 1449 | - |
52×2.5 | 37.5 | 39.2 | 35.8 | 39.0 | 41.5 | 38.0 | - | 222 | 2396 | 2298 | 2819 | 4032 | 2249 | - |
61×0.5 | - | - | - | - | - | 25.2 | 26.2 | - | - | - | - | - | 689 | 812 |
61×0.75 | 26.8 | 27.8 | 26.0 | 27.9 | 31.4 | 27.6 | 28.6 | 967 | 1087 | 1025 | - | 2084 | 991 | 1109 |
61×1.0 | 28.4 | 29.4 | 27.4 | 29.3 | 32.8 | 28.8 | 29.8 | 1186 | 1316 | 1256 | 1470 | 2314 | 1209 | 1348 |
61×1.5 | 33.5 | 34.7 | 32.3 | 35.0 | 39.1 | 34.4 | - | 1680 | 1837 | 1745 | 2241 | 3366 | 1698 | - |
61×2.5 | 40.2 | 41.4 | 37.9 | 41.1 | 43.6 | 40.7 | - | 2599 | 2749 | 2599 | 3175 | 4461 | 2612 | - |

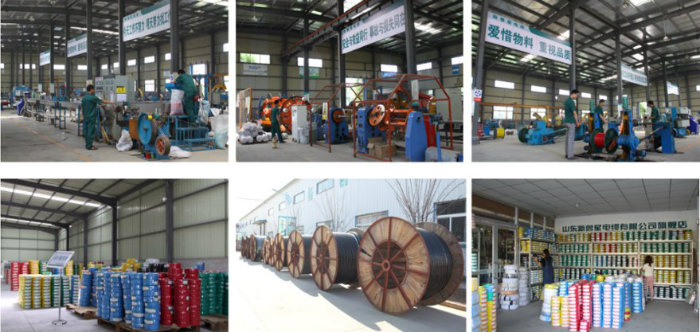

Luxing Factory : our production base
![](/proimages/44f3j00dQSatmegYYRB/kvvrp-2x15-4x10-12x075mm2-screened-flexible-control-cable.jpg)

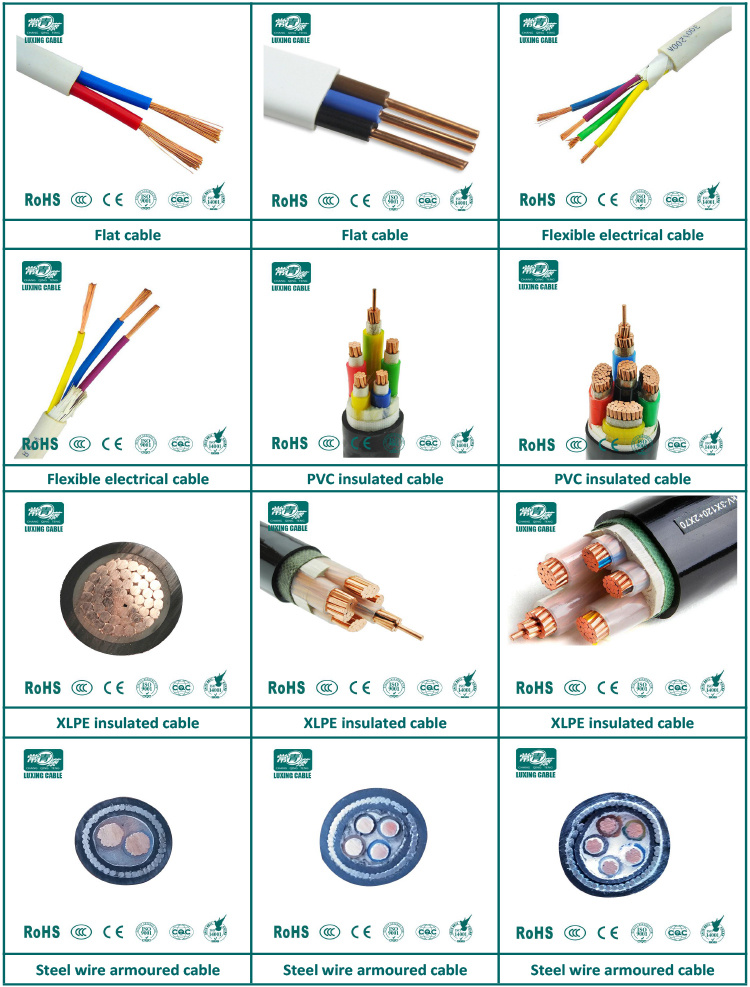

Luxing Cable Mainly Produce 300/500V 450/750V electrical wire | AAC conductor |
600/1000V PVC insulated cable | AAAC conductor |
600/1000V XLPE insulated cable | ACSR conductor |
1.8/3KV to 26/35KV power cable | OPGW |
Armored underground cable | ABC cable |
Control cable and instrumentation cables | Rubber cable |
![](/proimages/44f3j00TEStaQMrWUYZ/kvvrp-2x15-4x10-12x075mm2-screened-flexible-control-cable.jpg)

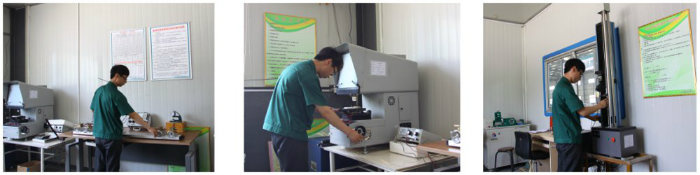

Strict Quality Test
![](/proimages/44f3j00TtSaQRBEDfGK/kvvrp-2x15-4x10-12x075mm2-screened-flexible-control-cable.jpg)

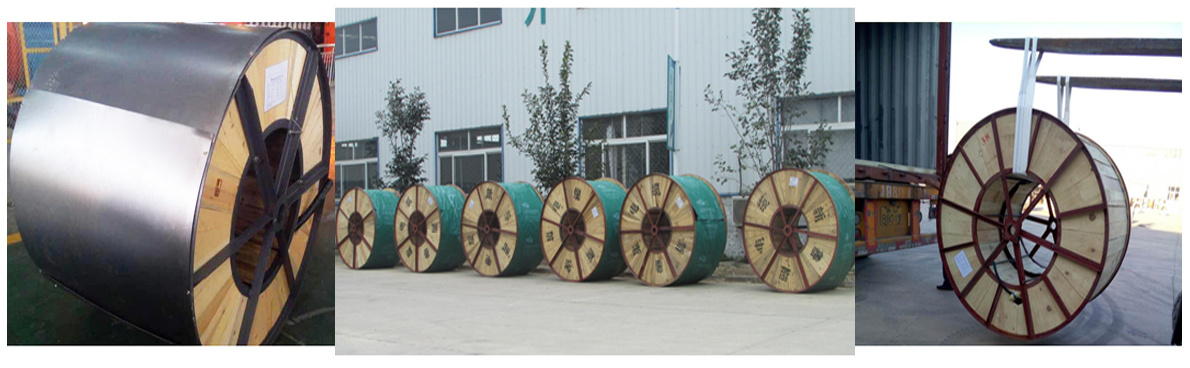

Packaging & Shipping
![](/proimages/44f3j00ETstazCqmRYK/kvvrp-2x15-4x10-12x075mm2-screened-flexible-control-cable.jpg)
1) About Luxing Cable Factory:
-Shandong New Luxing Cable Co., Ltd established in the year of 1999.
-The headquarter is located in Jinan City, the capital of Shandong province, China.
-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.
-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.
-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.
2)Why Choose Luxing Cable Factory?
-Luxing cable, the designated supplier of China's national grid construction.
-We provid high-quality cables for our clients for more than 18 years.
-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.
-Serve you any time.
3)The Product of Luxing Cable Factory
-300/500V 450/750V electrical wire
-600/1000V PVC insulated cable
-600/1000V XLPE insulated cable
-1.8/3KV to 26/35KV power cable
-Armored underground cable
-Control cable and instrumentation cables
-ABC cable
-AAC conductor
-AAAC conductor
-ACSR conductor
-OPGW
-Rubber cable
4)Product application
-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.
-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.
5)Production Market
-Supply power cables & electrical wire to
South America(Brazil...),
East Asia(Korea...),
Africa(Uganda, South Africa, Zimbabwe...),
Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),
Europe(Czech Republic...) to global market.
-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.
6)Our service
-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.
-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
